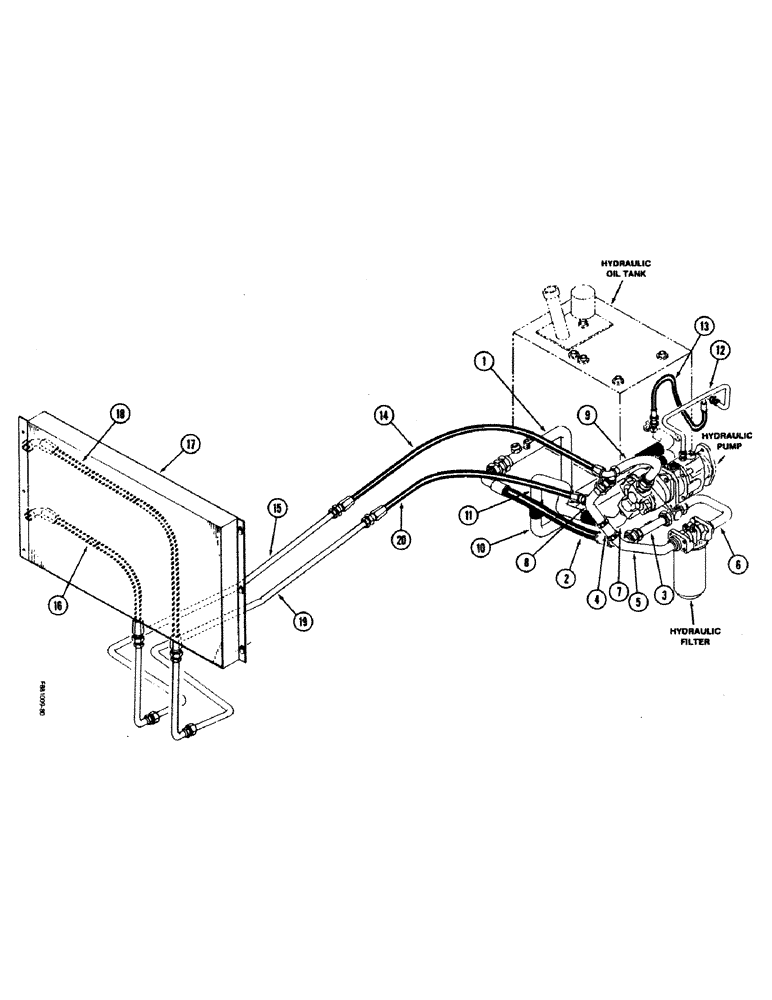

Запчасти Case IH 9150 (1-10) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Pump Drain Tube, Page 8-3

1шт.

2

Pump Drain Hose, Page 8-3

1шт.

3

Pump Drain Connector Tube, Page 8-3

1шт.

4

Tube Joint, Page 8-5

1шт.

5

Filter Inlet Tube, Page 8-5

1шт.

6

Pump Inlet Tube, Page 8-5

1шт.

7

Pump Inlet Connector, Page 8-5

1шт.

8

Gear Pump Outlet Connector Tube, Page 8-5

1шт.

9

Gear Pump Outlet Tube, Page 8-5

1шт.

10

Gear Pump Supply Tube, Page 8-5

1шт.

11

Gear Pump Supply Connector Tube, Page 8-5

1шт.

12

Piston Pump Drain Tube, Page 8-3

1шт.

13

Piston Pump Drain Hose, Page 8-3

1шт.

14

Oil Cooler Supply Hose, Page 8-7

1шт.

15

Oil Cooler Supply Tube, Page 8-7

1шт.

16

Oil Cooler Supply Hose, Page 8-7

1шт.

17

Oil Cooler, Page 8-23

1шт.

18

Oil Cooler Return Hose, Page 8-7

1шт.

19

Oil Cooler Return Tube, Page 8-7

1шт.

20

Oil Cooler Return Hose, Page 8-7

1шт.
