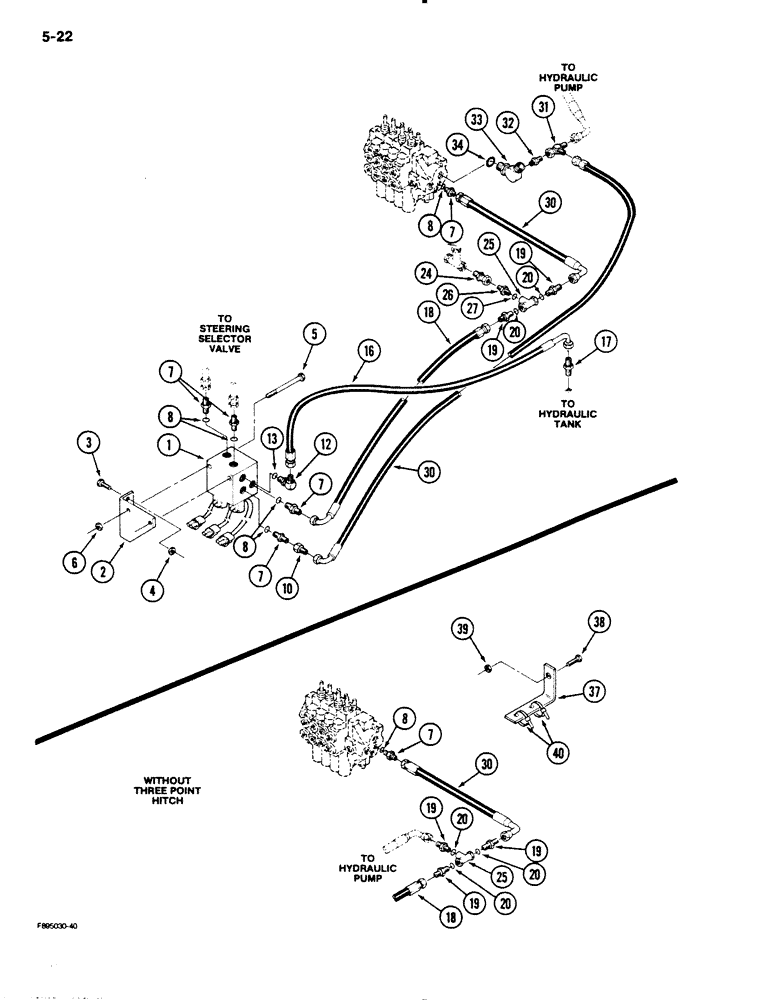

Запчасти Case IH 9130 (5-22) - STEERABLE AXLE HYDRAULIC SYSTEM, OUTSIDE FRAME (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - make up (See Fig. 5-30)

1шт.

2

50-3082T1

WASHER

BRACKET - mounting, make up valve

1шт.

3

19-23

BOLT,3/8" - 16 x 2 3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

4

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

2шт.

5

19-726

BOLT,Hex, 5/16" - 18 x 3 3/4", Gr 5

- hex, 5/16 NC x 3-3/4 inch

2шт.

6

19-508

LOCK NUT

- hex lock, 5/16 inch NC

2шт.

7

31-2411

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 9/16 x 7/16 inch thread, Includes: Ref. 8

5шт.

8

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

31-2543

ADAPTER

- orificed

1шт.

12

31-1344

ELBOW,90º, 7/16"-20, 37º x 9/16"-18, O-Ring

- 90 degree, adjustable, 9/16 NF x 7/16 inch NF thread, Includes: Ref. 13

1шт.

13

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

18-1576

HOSE

- make up valve to hydraulic tank, 30 inch

1шт.

17

31-1556

HYD CONNECTOR,7/16"-20, 37 Degree x 1/2"-14, NPTF

ADAPTER - straight, 7/16 inch NF thread x 1/2 inch PT

1шт.

18

31-2625

HOSE ASSY.

HOSE - make up valve to shuttle valve, 26 inch

1шт.

19

18-1539

HYD CONNECTOR,7/16"-20, 37 Degree x 7/16"-20, O-Ring

CONNECTOR - straight, 7/16 inch thread, Includes: Ref. 20

2шт.

20

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

24

31-2146

CONNECTING ROD

CONNECTOR - adjustable, 1/4 PT x 7/16 inch thread

1шт.

25

31-1778

VALVE

ASSEMBLY - shuttle

1шт.

26

31-608

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, 1/4 PT x 7/16 inch thread

1шт.

27

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

31-2631

HOSE ASSY.

HOSE - valve to valve, 20 inch

2шт.

31

31-2158

TEE,37 Degree, 7/16"-20, x 7/16"-20, Fem Sw Run

- adjustable, 7/16 inch thread

1шт.

32

31-1028

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

ADAPTER - straight, 1/8 PT x 7/16 inch thread

1шт.

33

31-2695

ELBOW

- 45 degree, adjustable, Includes: Ref. 34

1шт.

34

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

37

60-4775T1

SUPPORT

BRACKET - clamp mounting

1шт.

38

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

39

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

1шт.

40

50-2037T1

STRAP

- nylon

2шт.
