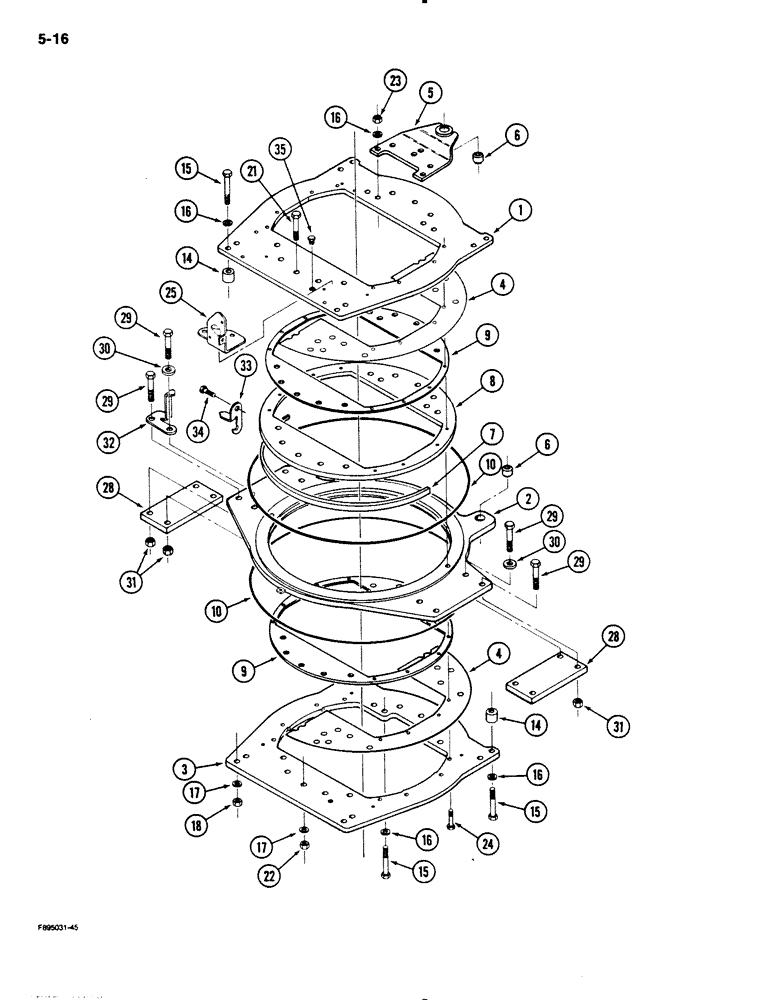

Запчасти Case IH 9130 (5-16) - STEERABLE AXLE STRUCTURE AND MOUNTING, IF EQUIPPED (05) - STEERING

1

70-5463T1

BASE

PLATE - frame base

1шт.

2

70-5514T1

AXLE

PLATE - axle base

1шт.

Ref #2, part number 70-5514T1, consists of:

1шт.

70-5516T1, Tab - 1 ea. NSS.

1шт.

70-5242T1, Bearing Ring - 2 ea. and this part is serviced.

1шт.

3

70-5465T1

LARGE PLATE

PLATE - clamp

1шт.

4

70-5298T1

PLATE

- bearing

4шт.

5

70-5296T1

BRACKET

- mounting, steering cylinder

2шт.

6

70-4557T1

BALL JOINT

BUSHING - self aligning, 1-1/4 inch

3шт.

7

70-4541T2

BUSHING,48 mm OD x 0.98"

- nylatron

2шт.

8

70-5294T1

PLATE

- bearing

1шт.

9

70-5287T1

PLATE

- bearing

2шт.

10

2-7445T1

SEAL

- dust

2шт.

14

70-5301T1

SPACER

- structure mounting

8шт.

15

25360R1

BOLT,Hex, 3/4" - 10 x 5 1/2", Gr 8

- hex, 3/4 NC x 5-1/2 inch, Grade 8

13шт.

16

19-5723

WASHER

- flat, hardened, 3/4 x 1-1/2 x 5/32 inch

14шт.

17

19-712

WASHER,3/4", SAE

- flat, 3/4 x 1-1/2 x 1/8 inch

15шт.

18

19-85

LOCK NUT

- lock, 3/4 inch NC

4шт.

21

19-614

BOLT,3/4" - 10 x 4 1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

7шт.

22

19-84

NUT,3/4"-10, G5

- hex, 3/4 inch NC

7шт.

23

19-651

LOCK NUT

- hex, 3/4 inch NC, Grade C

5шт.

24

19-827

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, Grade 8

8шт.

25

REF

INSTRUCTION

MOUNT - potentiometer (See Fig. 5-24)

1шт.

28

70-4636T1

AXLE

PLATE - mounting, axle

2шт.

29

223493

SCREW

BOLT - hex, 1 NC x 4-1/2 inch, Grade 8

8шт.

30

19-5685

WASHER

- flat, 1 x 2 x 3/8 inch

4шт.

31

131-1221

LOCK NUT,1"-8, GC

NUT - hex lock, 1 inch NC

8шт.

32

90-6950T1

DIPSTICK

INDICATOR - axle

1шт.

33

90-6949T1

FORK

INDICATOR - frame

1шт.

34

19-476

BOLT,Hex, 3/4" - 10 x 2", Gr 8

- hex, 3/4 NC x 2 inch, Grade 8

2шт.

35

70-5302T1

CAP

- hole plug

2шт.
