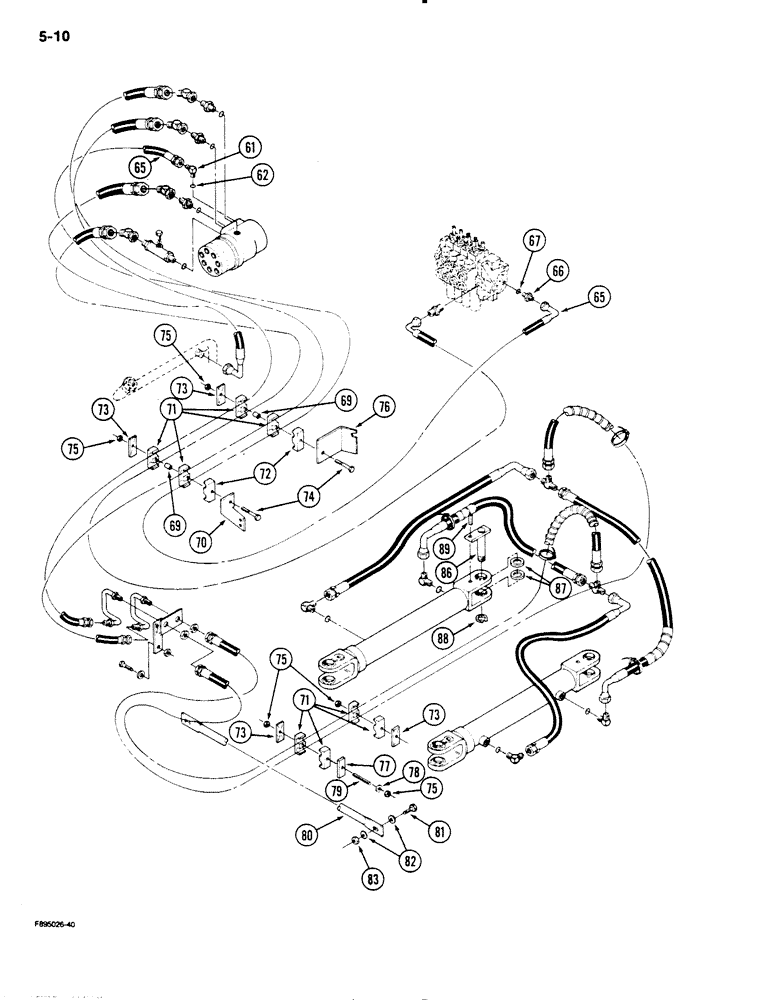

Запчасти Case IH 9130 (5-10) - STEERING SYSTEM HYDRAULICS, WITHOUT STEERABLE AXLE, [CONT] (05) - STEERING

61

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree adjustable, 7/16-20 thread, Includes: Ref. 62

1шт.

62

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

65

31-2701

HOSE ASSY.

HOSE - steering control valve to control, 64 inch

1шт.

66

31-2411

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 9/16 x 7/16 inch thread, Includes: Ref. 67

1шт.

67

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

69

50-2955T1

SPACER

- clamp

2шт.

70

50-2954T1

BRACKET

- clamp mounting

1шт.

71

50-2534T1

CLAMP

- split, halves

8шт.

72

50-2554T1

CLAMP

- hose, half

2шт.

73

50-2533T1

PLATE

COVER - clamp

5шт.

74

19-726

BOLT,Hex, 5/16" - 18 x 3 3/4", Gr 5

- hex, 5/16 NC x 3-3/4 inch

2шт.

75

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

5шт.

76

50-2982T1

BRACKET

- clamp mounting

1шт.

77

70-4587T1

SPACER

- clamp mounting

1шт.

78

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

79

50-2721T1

STUD

- clamp mounting, 5/16 NC x 3-1/4 inch

1шт.

80

50-2898T1

TUBE

- hose support

1шт.

81

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

82

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

4шт.

83

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

2шт.

86

50-1086T1

PIN

- retainer, steering cylinder

4шт.

87

2-3223T1

SPACER

- cylinder

8шт.

88

19-5619

RING, SNAP

RING - snap

4шт.

89

19-5785

LOCK PIN,1/2" x 7/8", Slotted

Pin, 1/2" x 7/8", Slotted

4шт.
