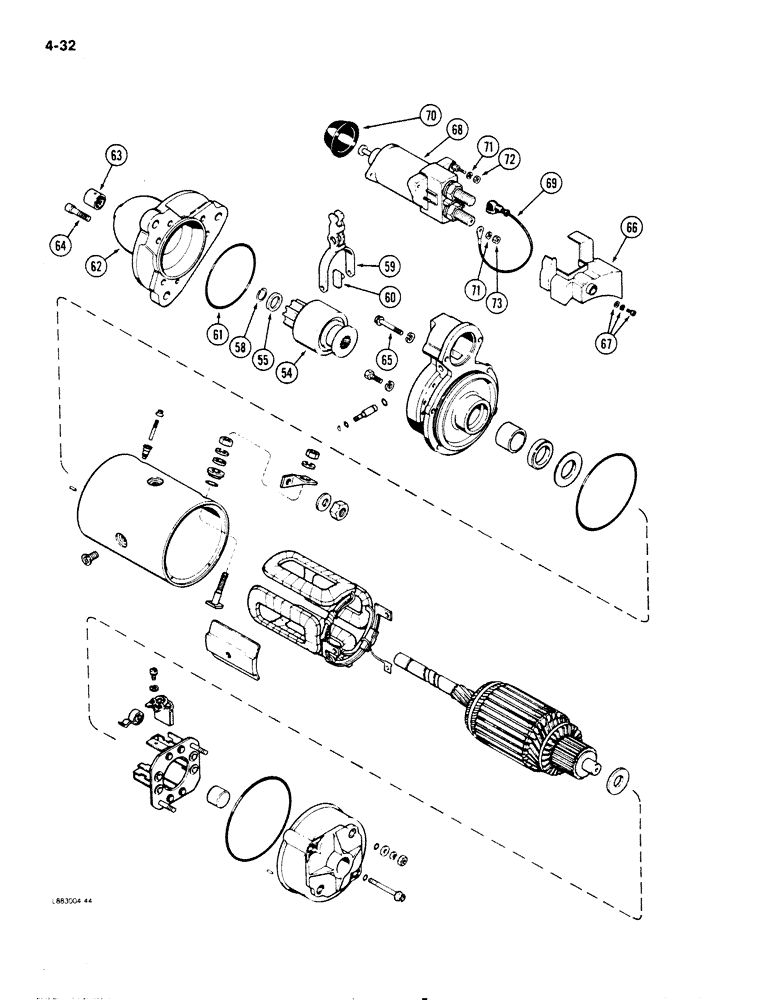

Запчасти Case IH 9130 (4-32) - STARTER ASSEMBLY, [CONT] (04) - ELECTRICAL SYSTEMS

A187728

STARTING MOTOR

STARTER ASSEMBLY - engine (Continued), Includes: Ref. 54 - 73 and Ref. 1 - 53 on Fig. 4-30

1шт.

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

AC187728

CORE-STARTER

Return Part Number

1шт.

87297380

REMAN-STARTER

Remanufactured Starter

1шт.

87297381

CORE-STARTER

Return Part Number

1шт.

140855A3R

REMAN-STARTER,12V

Remanufactured Starter 12 volt, 42MT

1шт.

140855A3C

CORE-STARTER,12V

Return Part Number, Starter 12 volt, 42MT

1шт.

A187728GV

STARTER MOTOR

Value

1шт.

54

A187848

CLUTCH ASSEMBLY

CLUTCH ASSEMBLY - drive, starter

1шт.

55

A187855

NUT

NUT - stop, pinion

1шт.

58

A47790

RING, SNAP

RING SNAP RING - snap, collar to shaft retaining

1шт.

59

A187853

LEVER

LEVER ASSEMBLY - clutch, starter, Includes: Ref. 60

1шт.

60

A187854

WEAR PAD

PAD - lever

2шт.

61

A47786

SEAL

O-RING - housing, clutch

1шт.

62

A187849

HOUSING

HOUSING ASSEMBLY - clutch drive, Includes: Ref. 63

1шт.

63

NSS

NOT SOLD SEPARAT

BEARING - needle

1шт.

64

A187856

BOLT,Hex, M7 x 24.50mm

BOLT - hex, drive housing

6шт.

66

A187864

COVER

COVER KIT - terminal, Includes: Ref. 67

1шт.

67

NSS

NOT SOLD SEPARAT

SCREW ASSEMBLY - cover

1шт.

68

A187863

SOLENOID SWITCH

SWITCH ASSEMBLY - magnetic solenoid, Includes: Ref. 69 - 73

1шт.

69

NSS

NOT SOLD SEPARAT

WIRE - connecting

1шт.

70

NSS

NOT SOLD SEPARAT

COVER - plunger

1шт.

71

NSS

NOT SOLD SEPARAT

WASHER - lock

3шт.

72

NSS

NOT SOLD SEPARAT

NUT - hex

1шт.

73

NSS

NOT SOLD SEPARAT

NUT - hex

2шт.

65

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

BOLT - hex, 8 x 40 mm

2шт.
