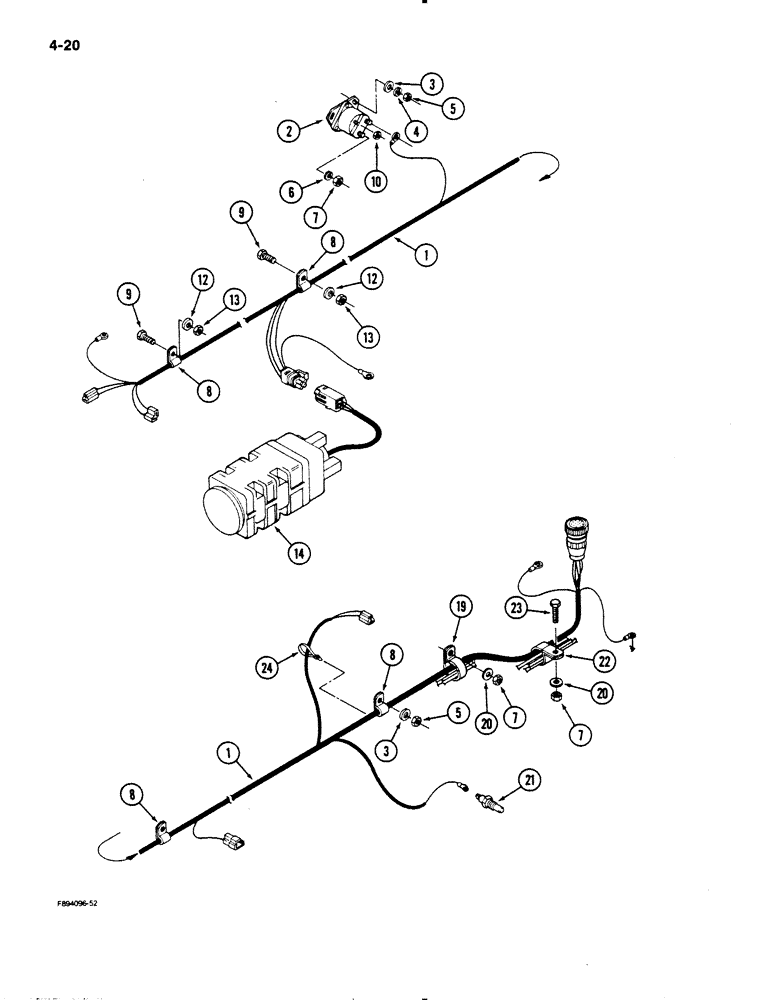

Запчасти Case IH 9130 (4-20) - FRONT FRAME HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6102T2

HARNESS

ASSEMBLY - front frame

1шт.

2

A39079

SOLENOID

- ignition

1шт.

3

19-105

WASHER,1/4", SAE

- flat, 1/4 inch

2шт.

4

19-115

LOCK WASHER,1/4"

1/4"

2шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

6

19-116

LOCK WASHER,5/16"

5/16"

4шт.

7

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

8

31-2488

CLAMP

- retaining

4шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

10

19-481

SERRATED NUT

- keps, No. 10 NF

1шт.

12

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

REF

INSTRUCTION

SENSOR - speed, ground (See Page 4-63)

1шт.

19

31-1427

MOUNTING CLIP

CLAMP - harness, retaining

1шт.

Ref #19 - (2")

1шт.

20

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

2шт.

21

20-1989T1

SWITCH

- temperature

1шт.

22

31-1349

MOUNTING CLIP

CLAMP - retaining

1шт.

23

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

24

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.
