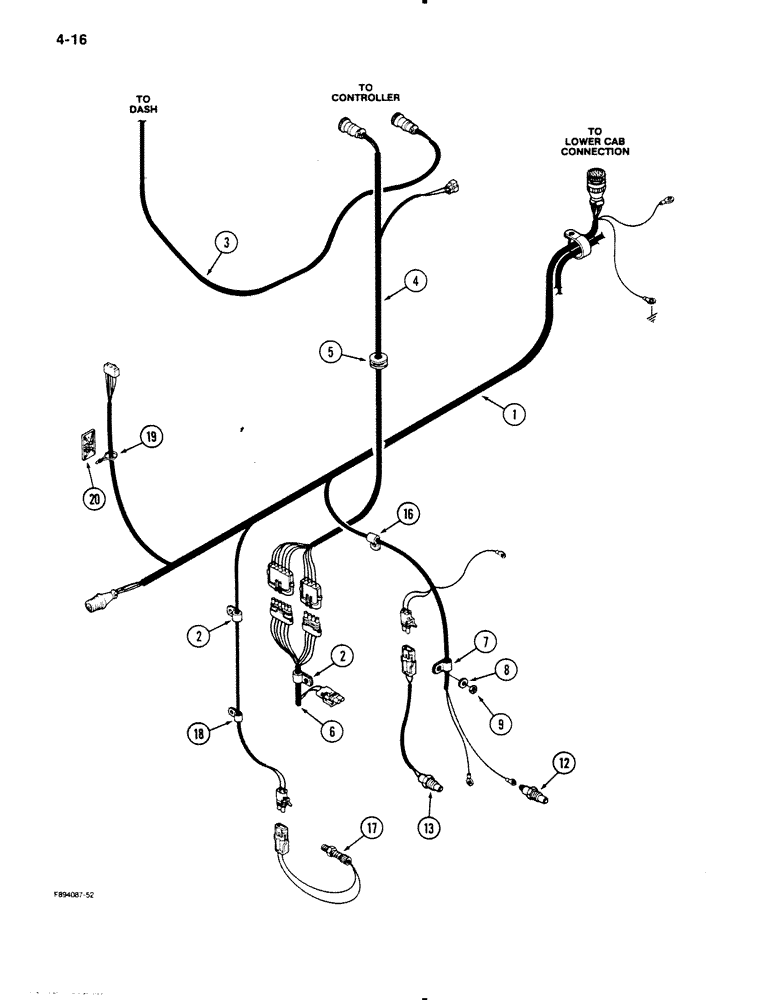

Запчасти Case IH 9130 (4-16) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6090T2

HARNESS

ASSEMBLY - transmission

1шт.

1a

60-6638T1

PLUG

- male,14 pin

1шт.

2

31-2488

CLAMP

- retaining

3шт.

3

60-6089T1

HARNESS

ASSEMBLY - dash display

1шт.

4

60-6288T1

HARNESS

ASSEMBLY - transmission solenoid

1шт.

5

1-1051

GROMMET

- protective

1шт.

6

60-6289T1

HARNESS

ASSEMBLY - solenoid, transmission

1шт.

7

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

1шт.

8

19-105

WASHER,1/4", SAE

- flat, 1/4 inch

1шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

12

47-4181

IGNITION SWITCH

SWITCH - temperature

1шт.

13

1964538C1

SWITCH

- temperature

1шт.

16

22-628

CABLE CLIP

CLIP - harness, retaining

2шт.

17

60-6085T1

SENSOR

- magnetic, MPH

1шт.

18

31-1862

CLAMP

- retaining

1шт.

19

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

20

22-823

MOUNT

MOUNT - adhesive back

1шт.

50-3322T1

COVER

1шт.

To protect wiring of solenoid while working in tall crops.

1шт.
