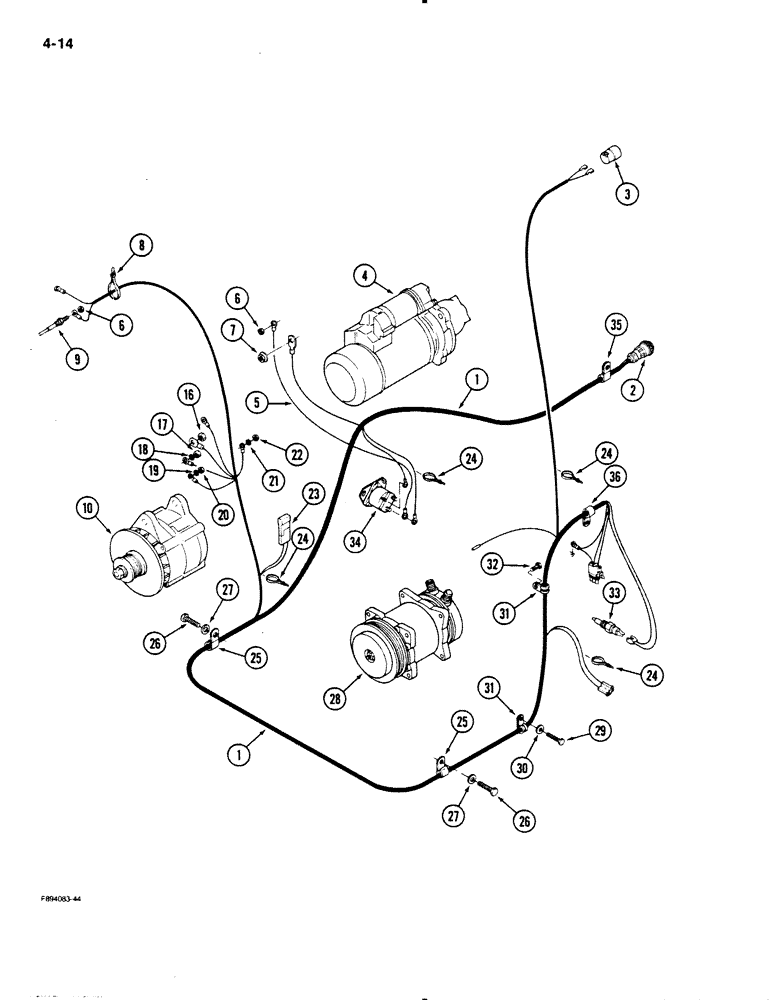

Запчасти Case IH 9130 (4-14) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6103T2

HARNESS

ASSEMBLY - engine, Includes: Ref. 2

1шт.

2

1301191C1

CONNECTION

RING - lock, connector

1шт.

3

A172784

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

4

REF

INSTRUCTION

STARTER - engine (See Fig. 4-30 and 4-32)

1шт.

5

20-2242T1

ELECTRICAL WIRE

WIRE ASSEMBLY -, Serial Range: solenoid-switch

1шт.

6

19-481

SERRATED NUT

- keps, No. 10 NF

2шт.

7

19-5825

NUT

- flanged, 1/2 inch NC

1шт.

8

19-135

CABLE TIE

STRAP - nylon

3шт.

9

A145513

SENSOR

- level, coolant

1шт.

10

REF

INSTRUCTION

ALTERNATOR - engine (See Fig. 4-34)

1шт.

16

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch NC

1шт.

17

40-1229

NUT,M6, Cl 8

- hex, 6 mm

1шт.

18

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

19

30659R1

LOCK WASHER,Ext Tooth, M5

WASHER - lock, 5 mm, external tooth

1шт.

20

825-1405

NUT,M5, Cl 8

- hex, 5 mm, Grade 10

1шт.

21

19-602

LOCK WASHER,Ext, #8

NUT - hex, lock, 5/16 inch NC

1шт.

22

825-1104

NUT,M4, Cl 8

- hex, 4 mm

1шт.

23

60-6251T1

DIODE

- electrical

1шт.

24

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

25

22-628

CABLE CLIP

CLIP - harness, retaining

2шт.

26

40-1213

CAPSCREW,Hex, M12 x 1.75 x 25mm, Gr 8.8

BOLT - hex, 12 mm - 1.75 x 25 mm

2шт.

27

25846R1

WASHER

- flat, 15/32 x 59/64 x 3/32 inch

2шт.

28

REF

INSTRUCTION

COMPRESSOR - air conditioner (See Fig. 9-84)

1шт.

29

40-1096

CAPSCREW,Hex, M10 x 1.5 x 16mm, Gr 8.8

BOLT - hex, 10 x 16 mm

1шт.

30

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

1шт.

31

31-1775

CLAMP

- retaining, harness

2шт.

32

813-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, 6 mm - 1 x 20 mm

1шт.

33

20-1676T1

SWITCH

- temperature, sender

1шт.

34

REF

INSTRUCTION

SWITCH - magnetic (See Fig. 4-20)

1шт.

35

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

1шт.

36

31-2488

CLAMP

- retaining

1шт.
