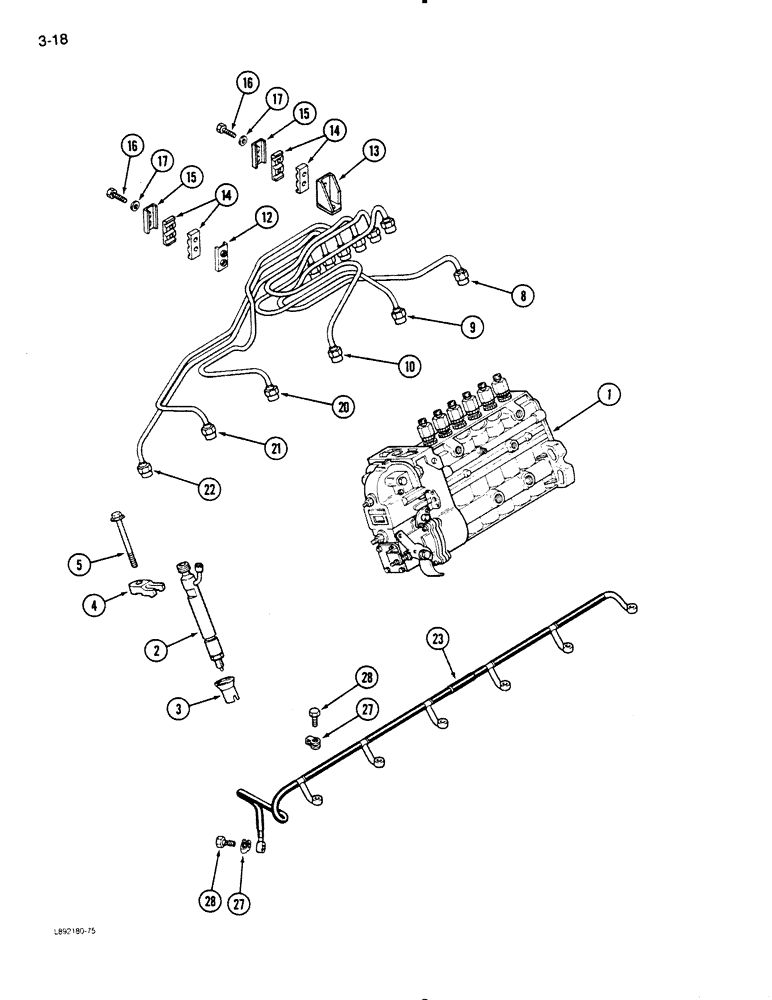

Запчасти Case IH 9130 (3-18) - FUEL INJECTION SYSTEM, 6T-830 ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Fig. 3-12)

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See Fig. 3-22)

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- injector

6шт.

4

J910279

CLAMP

- injector

6шт.

5

J902112

FLANGE BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 80 mm

6шт.

8

J906783

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE ASSEMBLY - fuel, No. 1 cylinder

1шт.

9

J906784

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE ASSEMBLY - fuel, No. 2 cylinder

1шт.

10

J906785

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE ASSEMBLY - fuel, No. 3 cylinder

1шт.

A77593

KIT

- fuel tubes retaining, Includes: Ref. 12 - 17

2шт.

12

J907505

BRACE

BRACKET - tube

1шт.

13

J906584

BRACE

BRACKET - tube

1шт.

14

J914339

CLAMP

ISOLATOR - tube

4шт.

15

J904519

SUPPORT

BRACE - tube

2шт.

16

J903609

SCREW

BOLT - hex, 5 mm - 0.8 x 20 mm

4шт.

17

J903723

WASHER

- flat, 6 x 10 x 1 mm

4шт.

20

J910521

FUEL TUBE

TUBE ASSEMBLY - fuel, No. 4 cylinder

1шт.

21

J906787

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE ASSEMBLY - fuel, No. 5 cylinder

1шт.

22

J906788

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE ASSEMBLY - fuel, No. 6 cylinder

1шт.

23

J915695

MANIFOLD

- fuel drain

1шт.

27

J903380

SEAL

- connector

7шт.

28

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

7шт.
