Запчасти Case IH 9130 (3-16) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE, 6TA-830 ENGINE (03) - FUEL SYSTEM

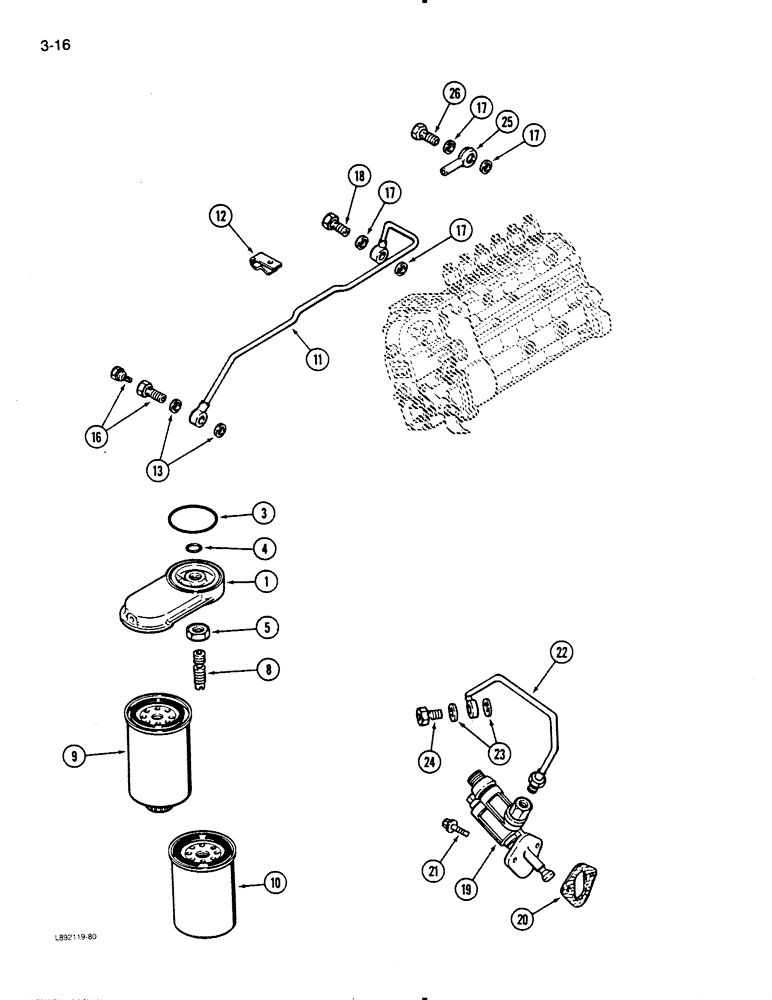

Схема запчастей Case IH 9130 - (3-16) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE, 6TA-830 ENGINE (03) - FUEL SYSTEM
17
17
11
23
13
26
17
25
12
17
16
22
8
1
20
10
5
19
21
4
24
9
18
3

Артикул

Название

Примечание

Количество

1

J915240

SUPPORT

HEAD ASSEMBLY - fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, 16 mm - 2.0

1шт.

8

J903845

BANJO BOLT

ADAPTER - fuel

1шт.

A77470

SEPARATOR

FILTER KIT - fuel, Includes: Ref. 9 and 10

1шт.

9

J903410

FILTER

- fuel, primary

1шт.

10

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

11

J912923

FUEL TUBE,8 mm OD x 509.8 mm L

TUBE ASSEMBLY - fuel supply

1шт.

12

A77436

CLIP

- tube retaining

1шт.

13

J903037

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.

16

J905860

BANJO BOLT

BOLT - banjo hex, special

1шт.

17

J914896

PACKING RING

WASHER - sealing

2шт.

18

J907541

BANJO BOLT

BOLT - connector, banjo

1шт.

19

J906795

PUMP

ASSEMBLY - fuel transfer

1шт.

20

J914304

GASKET

- mounting, pump

1шт.

21

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

- hex flange head, 8 mm - 1.25 x 20 mm

2шт.

22

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

TUBE ASSEMBLY - supply

1шт.

23

J903037

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.

24

J911446

BANJO BOLT,M12 x 1.5 x 24mm

BOLT, BANJO, M12 x 1.5 x 24

1шт.

25

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

26

NSS

NOT SOLD SEPARAT

BOLT - banjo

1шт.

Выбрано товаров: 22
