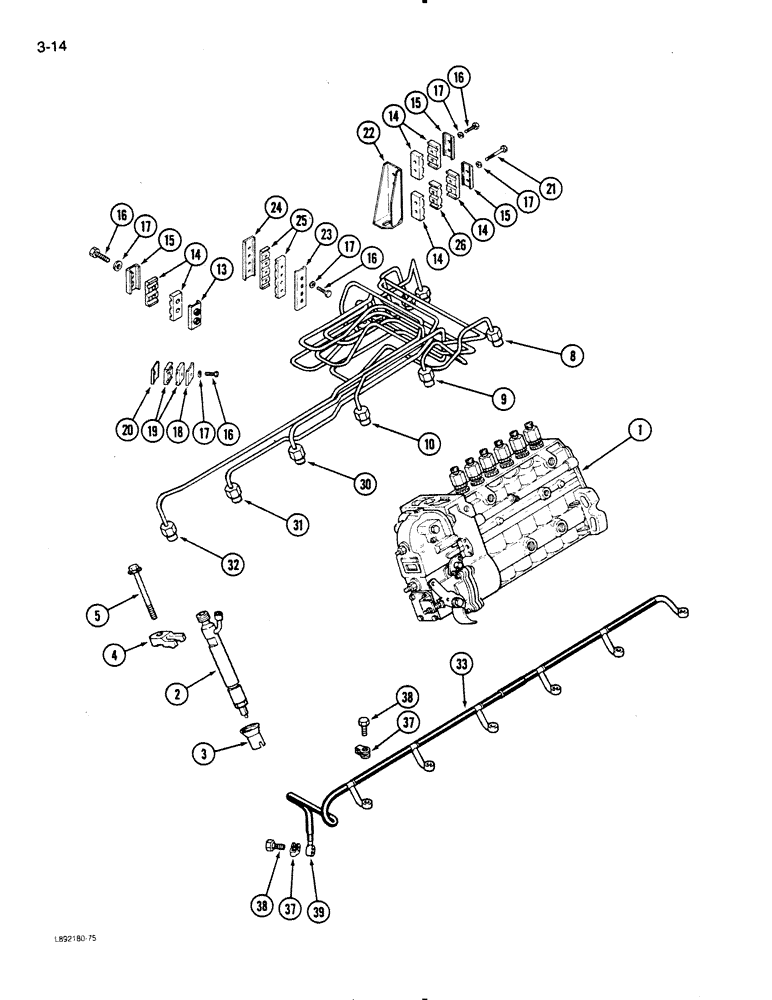

Запчасти Case IH 9130 (3-14) - FUEL INJECTION SYSTEM, 6TA-830 ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - injection, fuel (See Fig. 3-20)

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See Fig. 3-24)

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- sleeve, injector

6шт.

4

J910279

CLAMP

- injector

6шт.

5

J902112

FLANGE BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 80 mm

6шт.

8

J910749

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE ASSEMBLY - fuel, No. 1 cylinder

1шт.

9

J910750

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE ASSEMBLY - fuel, No. 2 cylinder

1шт.

10

J910751

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE ASSEMBLY - fuel, No. 3 cylinder

1шт.

13

J907505

BRACE

BRACKET - tube

1шт.

14

J914339

CLAMP

ISOLATOR - tube

6шт.

15

J904519

SUPPORT

BRACE - tube

2шт.

16

J903609

SCREW

BOLT - hex, 5 mm - 0.8 x 20 mm

9шт.

17

J903723

WASHER

- flat, 6 x 10 x 1 mm

11шт.

18

J904711

SUPPORT

BRACE - supply tube

1шт.

19

J914338

CLAMP

ISOLATOR - supply tube

2шт.

20

J907546

BRACE

- tube

1шт.

21

J910037

BOLT

BOLT - hex retaining

2шт.

22

J910685

BRACKET

- tube retaining

1шт.

23

J910686

BRACE

- tube retaining

1шт.

24

J910687

LARGE PLATE

BRACE - tube retaining

1шт.

25

J914341

CLAMP

ISOLATOR - tube

2шт.

26

J914340

CLAMP

ISOLATOR - tube

1шт.

30

J910752

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE ASSEMBLY - fuel, No. 4 cylinder

1шт.

31

J910753

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE ASSEMBLY - fuel, No. 5 cylinder

1шт.

32

J910754

FUEL TUBE

TUBE ASSEMBLY - fuel, No. 6 cylinder

1шт.

33

J915695

MANIFOLD

ASSEMBLY - drain, fuel

1шт.

37

J903380

SEAL

- connector

7шт.

38

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Connector M6 x 1 x 14.3

7шт.

39

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.
