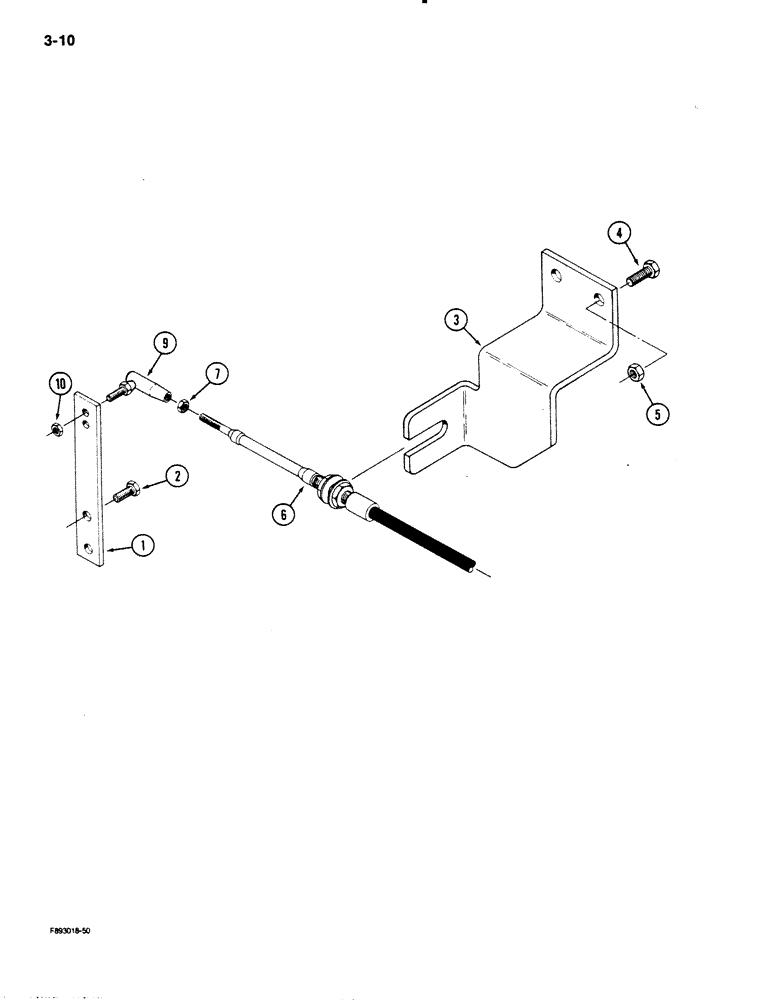

Запчасти Case IH 9130 (3-10) - THROTTLE CONTROLS, ENGINE ATTACHING (03) - FUEL SYSTEM

1

90-6507T1

LEVER

- throttle, engine attaching

1шт.

2

30191R1

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, 6 x 12 mm

2шт.

3

90-6875T1

BRACKET

- mounting, throttle cable

1шт.

4

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

5

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

6

60-3703T1

CABLE

- throttle (Cab)

1шт.

Ref #6 - (110" Long)

1шт.

6

60-5759T1

CABLE

- throttle (ROPS), Includes: Ref. 7

1шт.

Ref #6A - (120" Long)

1шт.

7

19-308

NUT,#10 - 32

- hex, No. 10 NF

1шт.

9

9411893

LOCK NUT,#10-32, GB

JOINT - ball, throttle (REPLACED A75447)

1шт.

10

19-308

NUT,#10 - 32

- hex, No. 10 NF

1шт.
