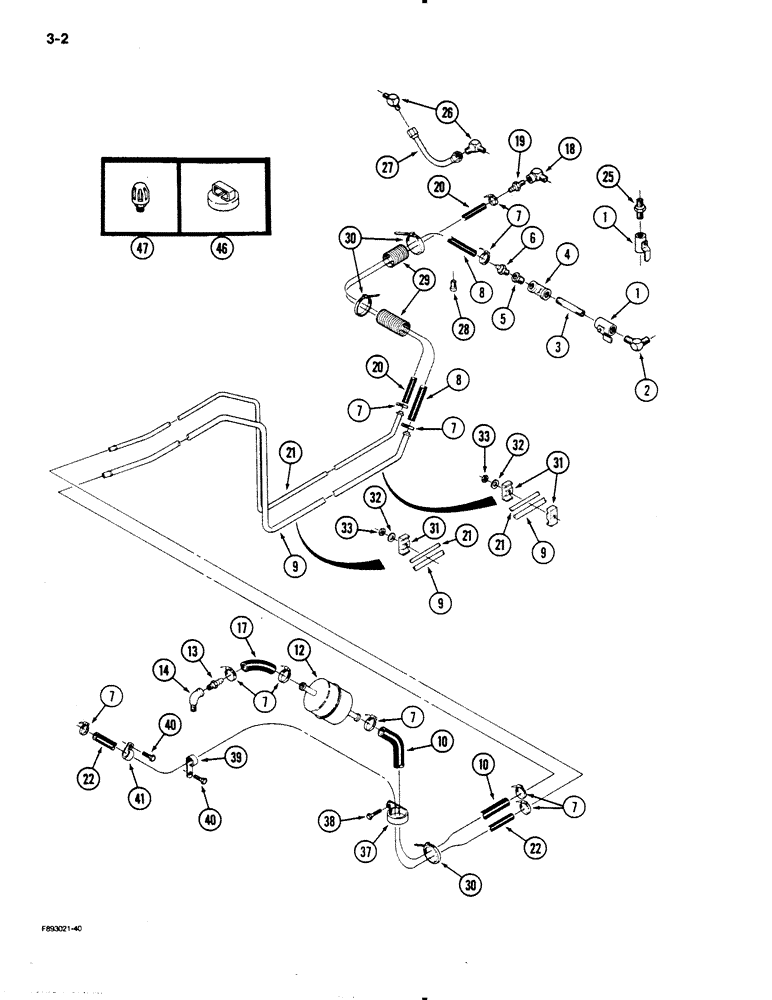

Запчасти Case IH 9130 (3-02) - FUEL LINE SYSTEM (03) - FUEL SYSTEM

1

31-1267

SHUT-OFF VALVE

VALVE - shut off

1шт.

2

31-1585

FITTING

ELBOW - 90 degree, 1/2 inch PT

1шт.

3

221-194

PIPE,Nipple, 1/2" NPT x 4"

NIPPLE - straight, 1/2 PT x 4-1/2 inch

1шт.

4

31-43

ELBOW

- 90 degree, 1/2 inch PT

1шт.

5

31-181

REDUCER

ADAPTER - straight, 1/2 PT x 1/4 inch PT

1шт.

6

220-3

FITTING

- barb, straight

1шт.

7

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adj., includes screw #4, 0.25/0.62 Type F Worm

10шт.

8

31-2838

HOSE

- fuel, 46 inch (Order 32-12;, Serial Range: cut-length)

1шт.

9

90-7071T1

FUEL TUBE,.375" OD

TUBE - fuel supply

1шт.

10

31-2837

HOSE

9.5 mm ID x 685.8 mm, Tube to Filter; Order A21562X, and Cut to Required Length

1шт.

12

D139225

FILTER, FUEL

FILTER - fuel, in-line

1шт.

13

220-3

FITTING

- barb, straight

1шт.

14

31-211

ELBOW

- 90 degree, 1/4 inch PT

1шт.

17

31-2836

FUEL HOSE

HOSE - filter to engine, 5 inch (Order 32-12;, Serial Range: cut-length)

1шт.

18

217-1027

ELBOW,3/8" - 18 Male x 1/4" - 18 Female

- street, 90 degree, 3/8 PT x 1/4 PT

1шт.

19

31-1186

FITTING

CONNECTOR - straight, 1/4 inch PT

1шт.

20

31-1183

HOSE,6.4 mm ID x 1498.60 mm

fuel return, fitting to tube, (Order 31-1182 and cut to length) 6.4 mm ID x 1498.60 mm

1шт.

21

90-7072T1

FUEL TUBE,.25" OD

TUBE - fuel return

1шт.

22

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

- Tube to engine 7.50 mm ID, 8.30 mm ID x 1820.00 mm, SAE 30R6 per J30

1шт.

25

31-345

FITTING

CONNECTOR - straight, 1/2 inch PT

1шт.

26

31-402

ELBOW,45 Degree, 3/4-14" 37 Degree x 1/2"-14, NPTF

- 45 degree, 1/2 PT x 3/4 inch thread

2шт.

27

90-6144T1

FUEL TUBE,.5" OD

TUBE - tank, fuel crossover

1шт.

28

31-35

PLUG

- pipe, square head, 1/2 inch PT

1шт.

29

50-2741T1

CONDUIT

GUARD - hose protector, 30 inch (Order S119717 and, Serial Range: cut-length)

1шт.

30

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

31

50-2842T1

SUPPORT

CLAMP - tube

5шт.

32

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

33

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

37

31-1070

CLAMP,5/8", 3/8" Bolt, Double

- hose

1шт.

38

J902735

BOLT,M8 - 1.25 x 21 mm

- hex flange self tapping, 8 mm - 1.25 x 21 mm

1шт.

39

22-632

CLIP

- retaining

1шт.

40

40-1091

BOLT,Hex, M10 x 1.5 x 20mm, Gr 8.8

BOLT - hex, 10 x 20 mm

2шт.

41

22-635

MOUNTING CLIP

CLAMP - hose

1шт.

46

A162191

CAP

- fuel

1шт.

47

1971726C1

BREATHER,1/4" - 18

ASSEMBLY - fuel tank

1шт.
