Запчасти Case IH 9130 (2-54) - GASKET KITS, 6T-830 ENGINE, 6TA-830 ENGINE, VALVE GRIND (02) - ENGINE

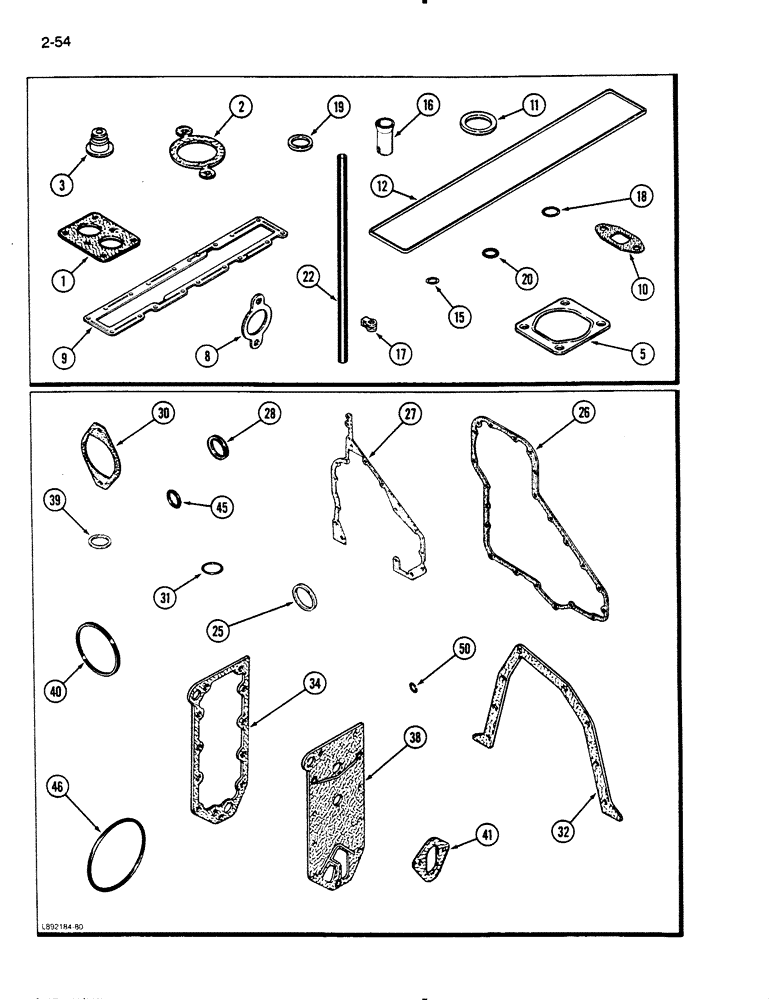

Схема запчастей Case IH 9130 - (2-54) - GASKET KITS, 6T-830 ENGINE, 6TA-830 ENGINE, VALVE GRIND (02) - ENGINE
17
1
41
27
20
28
11
10
30
12
5
50
2
19
34
18
15
32
22
46
9
3
39
16
38
25
40
26
45
31
8

Артикул

Название

Примечание

Количество

A77678

GASKET KIT

- valve grind, Includes: Ref. 1 - 22

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Fig. 2-35.

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

J914309

GASKET

- outlet tube

1шт.

3

J915707

SEAL

- intake and exhaust valve stem and guide

12шт.

5

J911941

GASKET

- turbocharger mounting

1шт.

8

J911942

GASKET

- manifold, exhaust

6шт.

9

J914311

MANIFOLD GASKET

- cover, manifold

1шт.

10

J914388

GASKET

- drain tube

1шт.

11

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

12

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover

1шт.

15

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

16

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- injector

6шт.

17

J903380

SEAL

- connector

7шт.

18

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.

19

J906659

SEAL

- injector nozzle

6шт.

20

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- water filter shutoff

1шт.

22

J915040

HOSE

- connector

1шт.

A77680

GASKET KIT

- cylinder block, Includes: Ref. 25 - 50

1шт.

For complete engine overhaul order 1 each of valve grind kit, cylinder block kit oil pan kit Fig. 2-33, front and rear crankshaft seal kit Fig. 2-47 and required cylinder head gasket Fig. 2-35.

1шт.

25

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover, cylinder block

1шт.

26

J917780

GASKET,0.98mm Thk

GASKET - cover, gear, cylinder block

1шт.

27

J914303

SEAL

GASKET - housing, gear, cylinder block

1шт.

28

J914092

O-RING

- pin housing, cylinder block

1шт.

30

J913288

SEAL

GASKET - cover, access, cylinder block

1шт.

31

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, pump, cylinder block

1шт.

32

J914301

GASKET

- rear retainer, cylinder block

1шт.

34

J914307

GASKET

- cooler core, cylinder block

1шт.

38

J914308

GASKET

- filter head, cylinder block

1шт.

39

J901798

SEALING WASHER

WASHER - sealing, cylinder block

1шт.

40

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - housing to block, cylinder

1шт.

41

J914304

GASKET

- mounting, pump, cylinder block

1шт.

45

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

- sealing, cylinder block

1шт.

46

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, cylinder block

6шт.

50

J913994

O-RING

- sealing, cylinder block

1шт.

Выбрано товаров: 35
