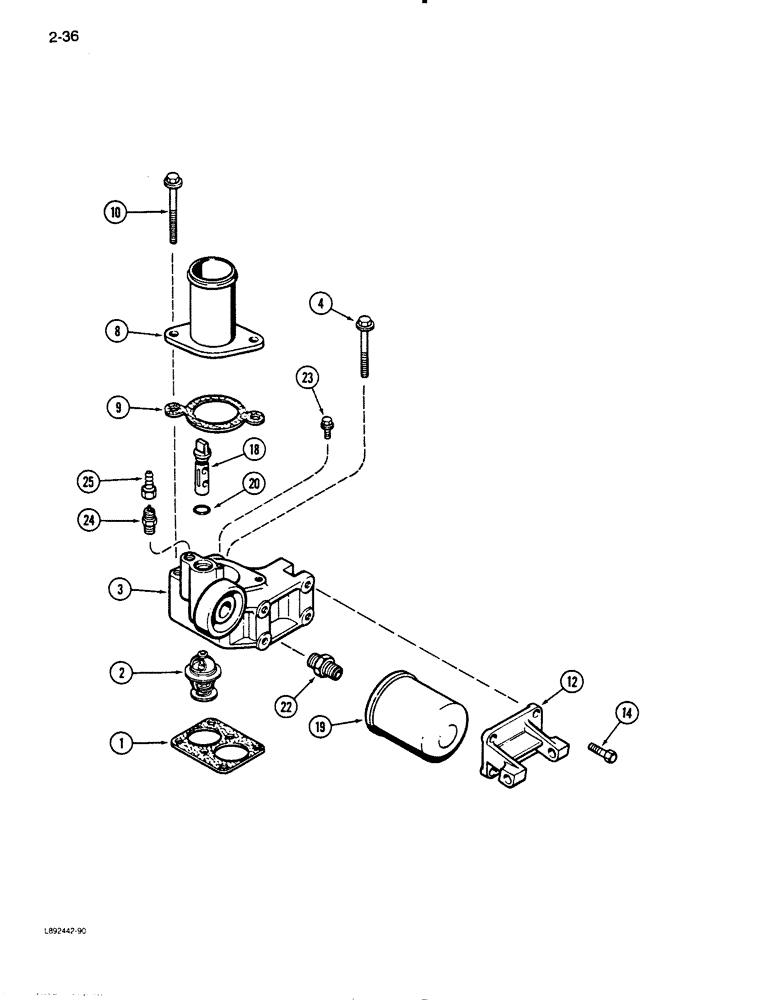

Запчасти Case IH 9130 (2-36) - THERMOSTAT HOUSING, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

J907242

THERMOSTAT

- engine coolant, 90 degree C

2шт.

3

J913708

HOUSING

- thermostat

1шт.

4

J902112

FLANGE BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 80 mm

2шт.

8

J912800

CONNECTION

TUBE - outlet

1шт.

9

J914309

GASKET

- outlet tube

1шт.

10

J906715

FLANGE BOLT

BOLT - hex flange, 8 mm - 1.25 x 95 mm

2шт.

12

J911480

SUPPORT ASSY.

SUPPORT - mounting, alternator

1шт.

14

J900631

FLANGE BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

BOLT - hex flange head, 8 mm - 1.25 x 25 mm

4шт.

18

J912837

COCK

VALVE - shutoff

1шт.

19

A77544

FILTER

- water

1шт.

20

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- water filter shutoff

1шт.

22

A77623

ADAPTER,3/4" - 10 x 11/16" - 16

- filter

1шт.

23

J900625

BOLT,Hex Flg, M6 x 10, 8.8, Full Thd

- retaining, housing to head

1шт.

24

J911901

VALVE, CHECK

VALVE ASSEMBLY - check

1шт.

25

J911925

COUPLING

- hose

1шт.
