Запчасти Case IH 9130 (2-32) - OIL PUMP AND OIL PAN, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

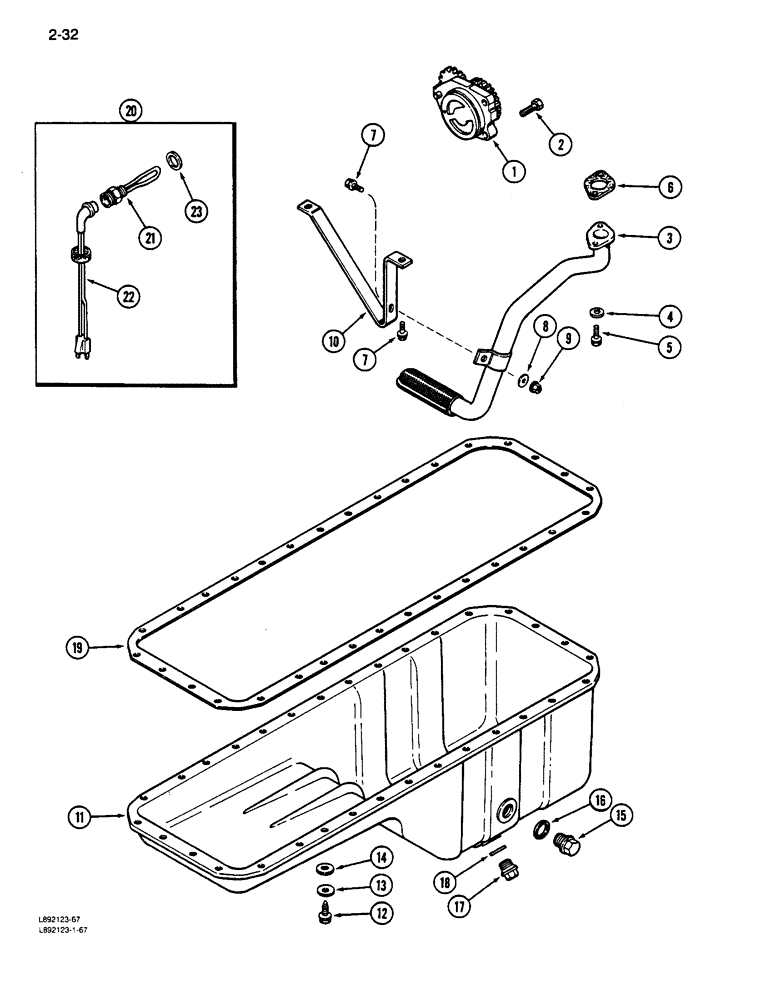

Схема запчастей Case IH 9130 - (2-32) - OIL PUMP AND OIL PAN, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE
22
21
11
16
18
9
7
7
4
2
20
10
15
12
3
19
1
5
8
6
14
17
13
23

Артикул

Название

Примечание

Количество

JR910066

REMAN-ENG OIL PUMP

PUMP ASSEMBLY - oil, remanufactured (North America Only)

1шт.

JC910066

PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

1

J914007

PUMP, ENGINE OIL

PUMP ASSEMBLY - engine oil, new

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J910787

TUBE

SCREEN ASSEMBLY - oil suction

1шт.

4

J908738

SPACER

- mounting

2шт.

5

J900628

BOLT,Hex Flg, M6 x 30, 8.8

- hex flange, 6 mm - 1.0 x 30 mm

2шт.

6

J914302

GASKET

- mounting, oil tube

1шт.

Part of oil pan gasket kit A77679

1шт.

7

J901865

FLANGE BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

BOLT - hex flange head, 6 mm - 1.0 x 20 mm

1шт.

7

J913638

FLANGE BOLT,Hex, M6 x 15mm, Cl 8.8, Full Thd

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

8

J910960

WASHER

- flat, special

1шт.

9

J906216

FLANGE NUT

- hex flange, 16 mm

1шт.

10

J913427

BRACE

- suction tube

1шт.

11

J914013

PAN, ENGINE OIL

PAN - oil, engine

1шт.

12

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, special, 8 - 1.25 x 25 mm

32шт.

13

J910266

LOCK WASHER

- flat

32шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 8 mm

32шт.

15

J904386

PLUG

- pipe, heater hole

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

1шт.

Part of oil pan gasket kit A77679

1шт.

17

J900215

PLUG

- drain, oil (Alternate with J911638 plug)

1шт.

17

J911638

PLUG,M18 x 1.5

- drain, oil magnetic (Alternate with J900215 plug)

1шт.

18

J900216

PACKING RING

WASHER - seal, drain plug

1шт.

Part of oil pan gasket kit A77679

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A77679)

1шт.

Part of oil pan gasket kit A77679

1шт.

A77679

GASKET KIT

- oil pan, Includes: Ref. 6, 16, 18 and 19

1шт.

20

A77580

SERVICE KIT

HEATER KIT - oil pan, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater (Order A77580)

1шт.

22

J905113

CABLE

- engine block heater

1шт.

23

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug

1шт.

Выбрано товаров: 32
