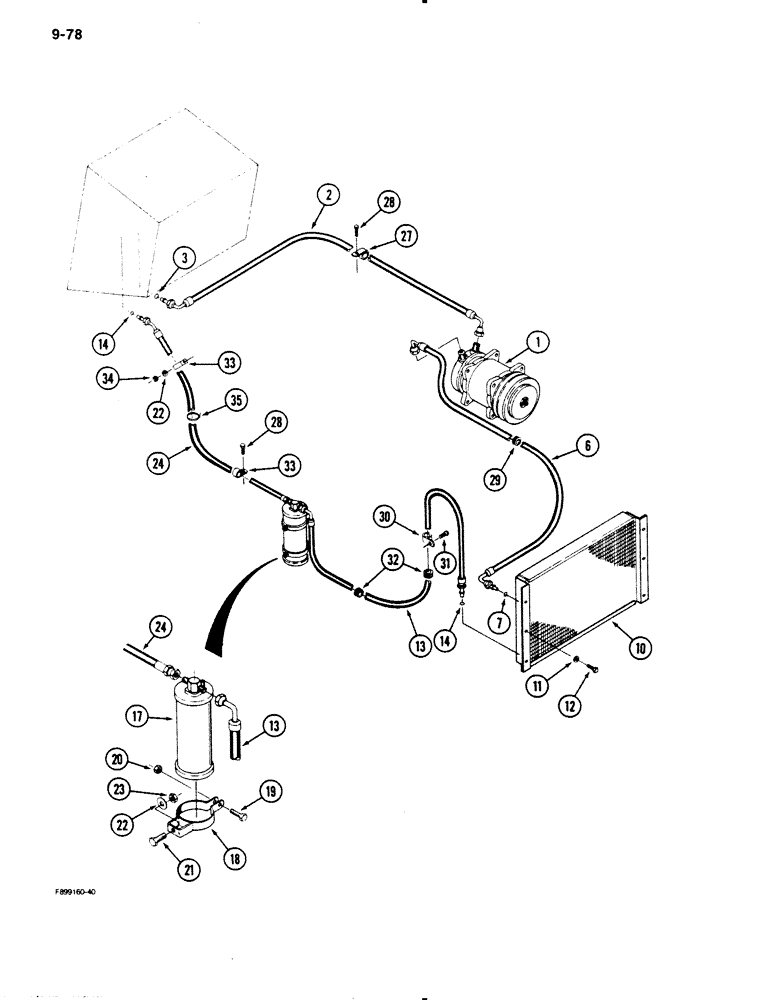

Запчасти Case IH 9130 (9-78) - AIR CONDITIONING, CONDENSER, RECEIVER-DRIER AND PLUMBING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

COMPRESSOR - air conditioning (See Fig. 9-84)

1шт.

2

31-2576

HOSE,15.88mm ID x 1219.2mm L

ASSEMBLY - suction

1шт.

3

31-1809

O-RING

- hose, 9/16 x 11/16 inch

1шт.

6

31-2501

HOSE,10.41mm ID x 1549.4mm L

ASSEMBLY - discharge

1шт.

7

31-1808

O-RING

O-RING - hose, 7/16 x 9/16 inch

1шт.

10

60-4815T1

CONDENSER

- air conditioning (See Fig. 8-6)

1шт.

11

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

6шт.

12

19-876

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

6шт.

13

31-2575

HOSE,7.94mm ID x 2641.6mm L

ASSEMBLY - condenser to receiver drier

1шт.

14

31-1807

O-RING

O-RING - 5/16 x 7/16 inch

2шт.

17

60-5818T1

SUPPORT

RECEIVER-DRIER - air conditioning

1шт.

18

1-8563

CLAMP BRACKET

BRACKET - mounting, receiver-drier

2шт.

19

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

20

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

2шт.

21

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

22

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

23

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.

24

31-2751

HOSE,7.94mm ID x 1981.2mm L

ASSEMBLY - receiver-drier to thermal expansion valve

1шт.

27

308576R1

CLAMP

- retaining

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

29

22-461

GROMMET

- hose protector

1шт.

30

31-1776

MOUNTING CLIP

CLAMP - hose

1шт.

31

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

32

31-2580

GROMMET - hose protector

2шт.

33

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- retaining

3шт.

34

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

35

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.
