Запчасти Case IH 9130 (9-66) - OVERHEAD DOOR, CAB (09) - CHASSIS/ATTACHMENTS

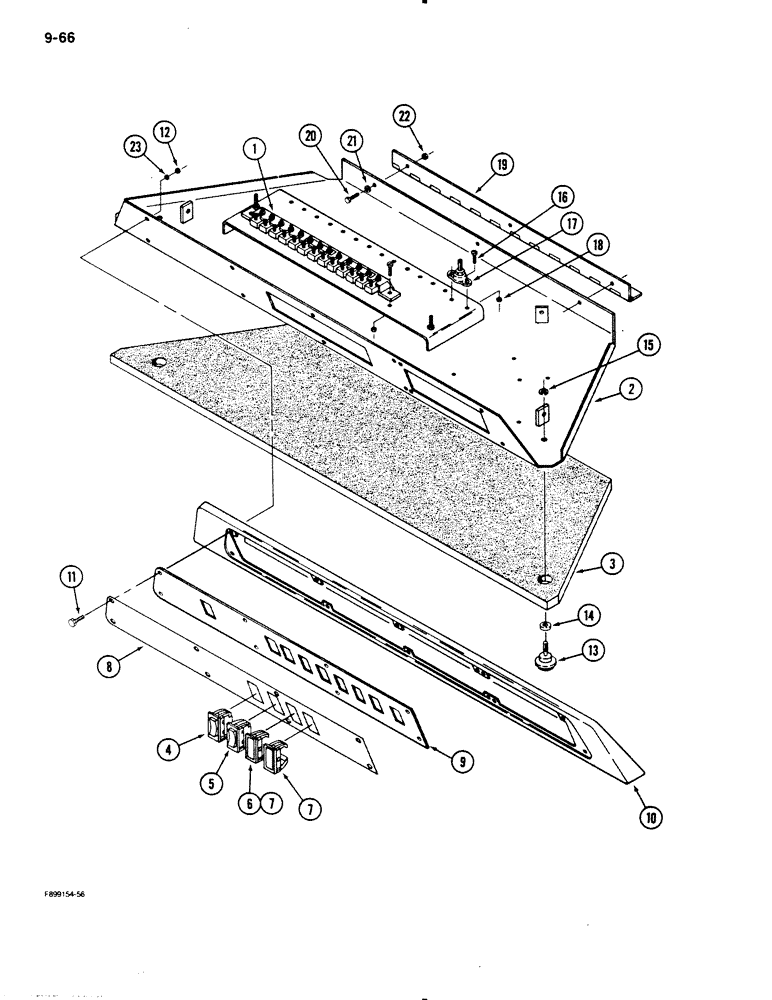

Схема запчастей Case IH 9130 - (9-66) - OVERHEAD DOOR, CAB (09) - CHASSIS/ATTACHMENTS
5
23
20
8
2
7
9
22
4
16
18
15
19
12
17
13
1
10
14
7
21
3
11
6

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

BREAKER ASSEMBLY - circuit (See Fig. 4-10)

1шт.

2

60-4027T2

DOOR

- overhead, console

1шт.

3

60-5923T1

NOISE PROTECTION

PAD - insulation, door

1шт.

4

1964752C1

SWITCH

- rocker, master light

1шт.

5

245012C1

SWITCH

ASSEMBLY - rocker, dash lights

1шт.

6

1964751C1

SWITCH

- rocker, ether start (If equipped)

1шт.

7

60-3210T1

PLUG

- switch hole

2шт.

8

60-6296T1

DECAL

- overhead

1шт.

9

60-4032T2

PANEL

- rocker switch

1шт.

10

60-5928T1

COVER

- console door

1шт.

11

363-30812

SCREW,Hex Wash Hd, #8-32 x 3/4"

- machine, flanged, No. 8 NC x 3/4 inch

8шт.

12

19-5621

LOCK NUT,#8-32, GB

NUT - hex lock, No. 8 NC

8шт.

13

60-4033T1

BUTTON

KNOB ASSEMBLY - console release (Order 60-4135T1 stud and 60-4136T1 knob)

2шт.

14

19-6126

SPACER

- knob

2шт.

15

2-7333T1

WASHER

RING - snap, 3/16 inch

2шт.

16

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- machine, pan, No. 10 NF x 1/2 inch

4шт.

17

20-1451T1

BLOCK

- junction

1шт.

18

19-481

SERRATED NUT

- keps, No. 10 NF

4шт.

19

60-4034T1

HINGE

- console door

1шт.

20

9419000

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

SCREW - machine, hex, 1/4 NC x 1/2 inch

3шт.

21

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, hardened

3шт.

22

111626C1

NUT

- hex lock, 1/4 inch NC

3шт.

23

446143

WASHER

- flat, No.8

8шт.

Выбрано товаров: 23
