Запчасти Case IH 9130 (9-18) - GRILLE (09) - CHASSIS/ATTACHMENTS

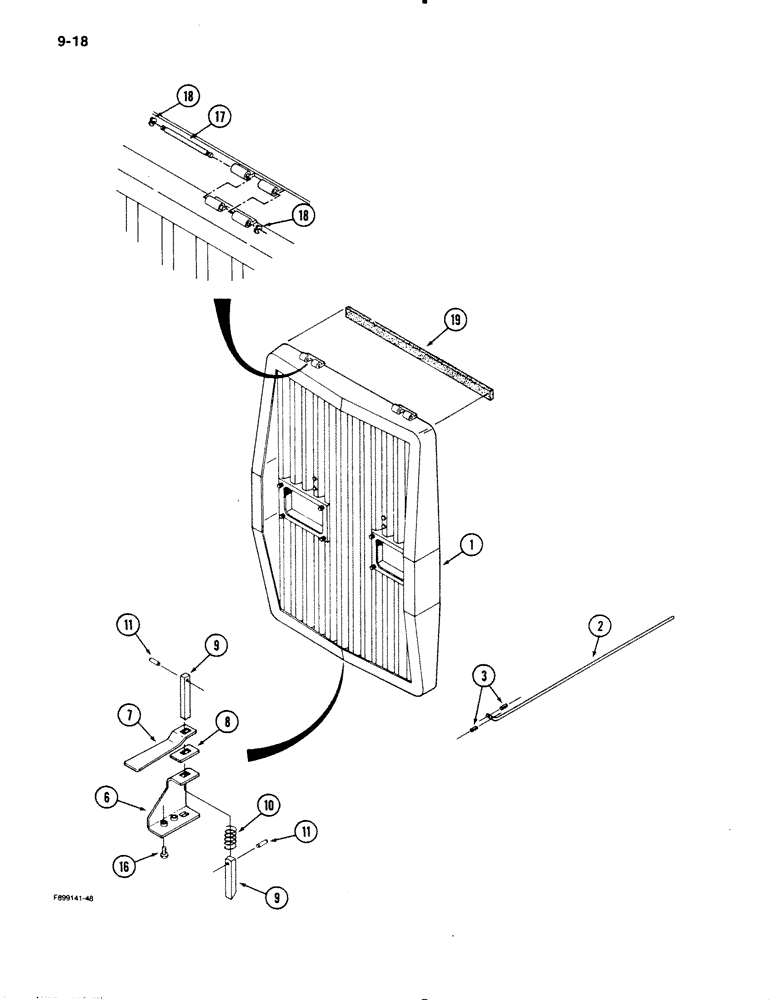

Схема запчастей Case IH 9130 - (9-18) - GRILLE (09) - CHASSIS/ATTACHMENTS
11
17
1
7
18
11
19
2
6
9
8
3
18
10
16
9

Артикул

Название

Примечание

Количество

1

70-5400T92

GRILLE

front screen consists of: (1) P/N 70-5403T2 Grill Weld, (2) P/N 70-4484T1 Lamp Brackets, (2) P/N 70-2507T2 Plate, (16) P/N 1-2503 Pop Rivets

1шт.

2

70-5480T1

GRILLE

ROD - open grille retaining

1шт.

3

19-6135

LOCK PIN,7/32" x 1 1/8", Slotted

Pin, 7/32" x 1 1/8", Slotted

2шт.

70-5451T91

LATCH ASSY.

LATCH ASSEMBLY - grille, Includes: Ref. 6 - 11

1шт.

6

70-5360T1

BRACKET

- grille latch

1шт.

7

70-5359T1

LEVER

- grille latch

1шт.

8

70-5452T1

BEARING

- wear plate, lever

1шт.

9

70-5357T1

ROD

- grille latch

1шт.

10

A61705

SPRING

- latch return

1шт.

11

9415236

PIN, ROLL

PIN - spring, 1/8 x 3/4 inch

2шт.

16

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

17

70-1996T2

PIN

- hinge, grille

2шт.

18

70-2600T1

RING, SNAP

RING - retaining, hinge pin

4шт.

19

70-4527T2

FOAM

SEAL - foam, Serial Range: grille-hood

1шт.

Выбрано товаров: 14
