Запчасти Case IH 9130 (9-16) - HOOD (09) - CHASSIS/ATTACHMENTS

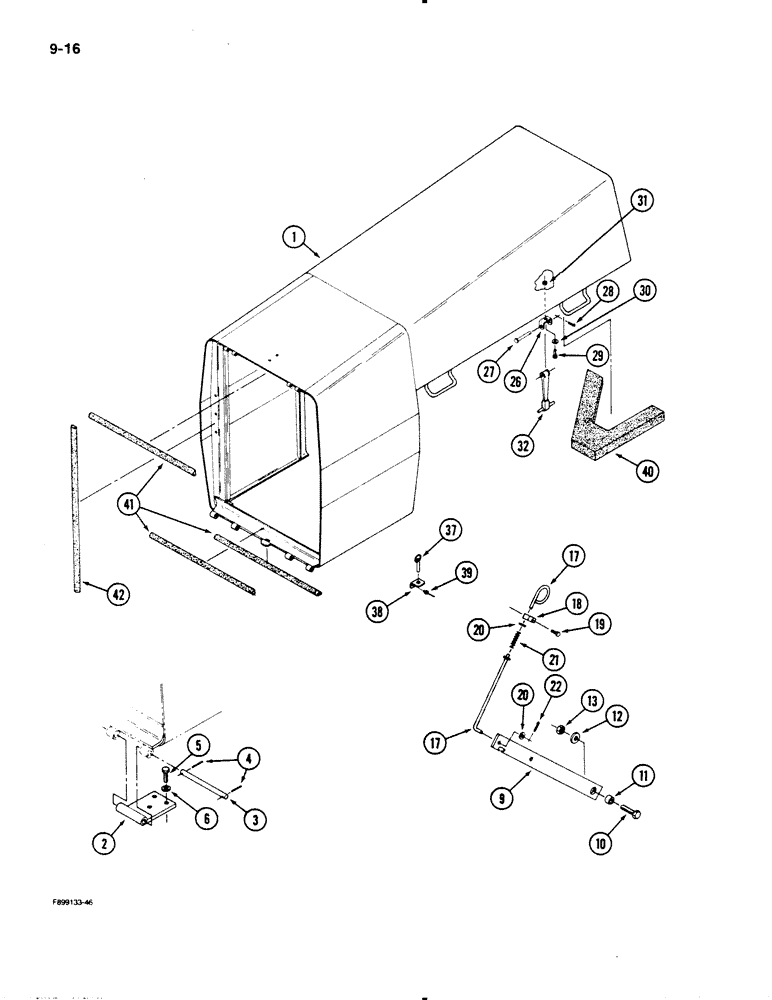

Схема запчастей Case IH 9130 - (9-16) - HOOD (09) - CHASSIS/ATTACHMENTS
40
19
17
20
31
26
18
3
1
41
42
4
5
27
11
21
2
20
6
22
28
30
12
10
17
39
32
37
29
9
38
13

Артикул

Название

Примечание

Количество

1

70-4502T2

HOOD

- engine cover

1шт.

2

70-4263T1

HINGE

- hood

2шт.

3

70-4262T2

PIN,12.7mm OD x 185.67mm L

- hinge

2шт.

4

9415236

PIN, ROLL

PIN - spring, 1/8 x 3/4 inch

4шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

6шт.

6

19-1059

WASHER

- flat, hardened, 3/8 inch

6шт.

9

70-4533T2

BAR

SUPPORT - hood tilt

1шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

11

1-443

BUSHING

SPACER - pivot

1шт.

12

19-463

WASHER,1/2", SAE

- flat, 1/2 x 1-1/4 x 3/32 inch

1шт.

13

19-653

LOCK NUT

- hex lock, 1/2 inch NC

1шт.

17

70-4528T1

SLIDE

ROD - release, hood latch

1шт.

18

31-1775

CLAMP

- support, release rod

1шт.

19

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

20

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

21

19-6195

SPRING

- compression, latch return

1шт.

22

19-124

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

26

2-4683T2

BRACKET

- anchor, hood

1шт.

27

19-5664

CLEVIS PIN,5/16" x 2"

PIN - clevis, 5/16 x 1-7/8 inch

1шт.

28

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

29

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

30

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

31

111626C1

NUT

- hex lock, 1/4 inch NC

1шт.

32

51-324

STRAP

TIEDOWN - rubber

1шт.

37

19-5774

PIN

- open hood retaining, 3/8 x 2-1/2 inch

1шт.

38

90-6678T1

ANGLE

- pin mount

1шт.

39

19-6205

RIVET

- pop, 1/8 x 3/16 inch

2шт.

40

70-4519T1

FOAM

SEAL - foam

1шт.

41

70-5265T1

SEAL

FOAM - seal, grille opening (Order 70-5259T1 and, Serial Range: cut-length)

3шт.

42

70-5264T1

SEAL

FOAM - seal, grille opening (Order 70-5259T1 and, Serial Range: cut-length)

2шт.

Выбрано товаров: 30
