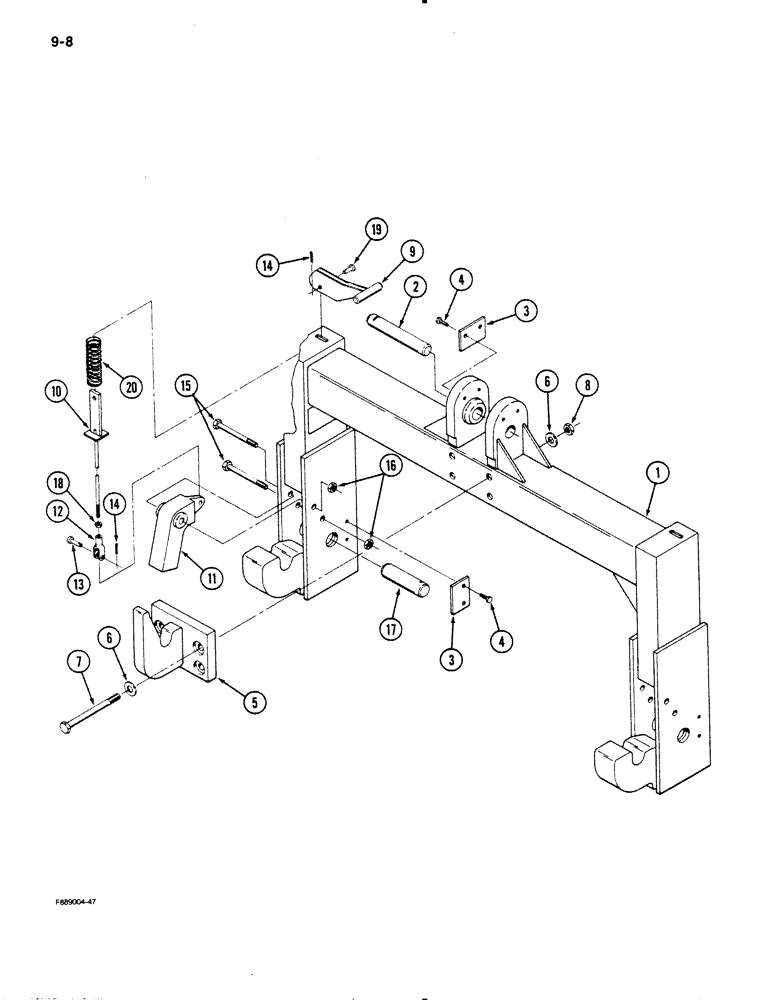

Запчасти Case IH 9130 (9-08) - QUICK HITCH COUPLER, CATEGORY III, IF EQUIPPED (09) - CHASSIS/ATTACHMENTS

1

70-4305T2

FAST HITCH

HITCH - quick attachment

1шт.

2

70-4256T1

PIN

- center link mounting

1шт.

3

70-3082T2

LARGE PLATE

BLOCK - pin retaining

3шт.

4

19-1108

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

6шт.

5

70-4317T2

HOOK

- quick attachment

1шт.

6

19-6120

WASHER

- flat, hardened, 7/8 x 1-3/4 x 5/32 inch

8шт.

7

9430319

SCREW,7/8" - 9 x 6 1/2"

BOLT - hex, 7/8 NC x 6-1/2 inch, Grade 8

4шт.

8

9422309

LOCK NUT,7/8"-9, GC

NUT - hex lock, 7/8 inch NC

4шт.

9

70-4320T1

HANDLE

- hitch release

2шт.

10

70-4324T1

THREADED ROD

LINK - hitch release

2шт.

11

70-4328T1

CATCH

- hitch release

2шт.

12

19-139

YOKE

- clevis

2шт.

13

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

14

19-124

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

4шт.

15

19-556

BOLT,5/8" - 11 x 4 1/2", Gr 5

- hex, 5/8 NC x 4-1/2 inch

4шт.

16

19-222

LOCK NUT,5/8" - 11, GB

NUT - lock, 5/8 inch NC

4шт.

17

70-4293T1

PIN,36.5mm OD x 125.73mm L

- lower hitch

2шт.

18

19-868

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8 inch NF

2шт.

19

19-5423

CLEVIS PIN

3/8 x 7/8"

2шт.

20

70-4340T1

COMPRESSION SPRING

2шт.
