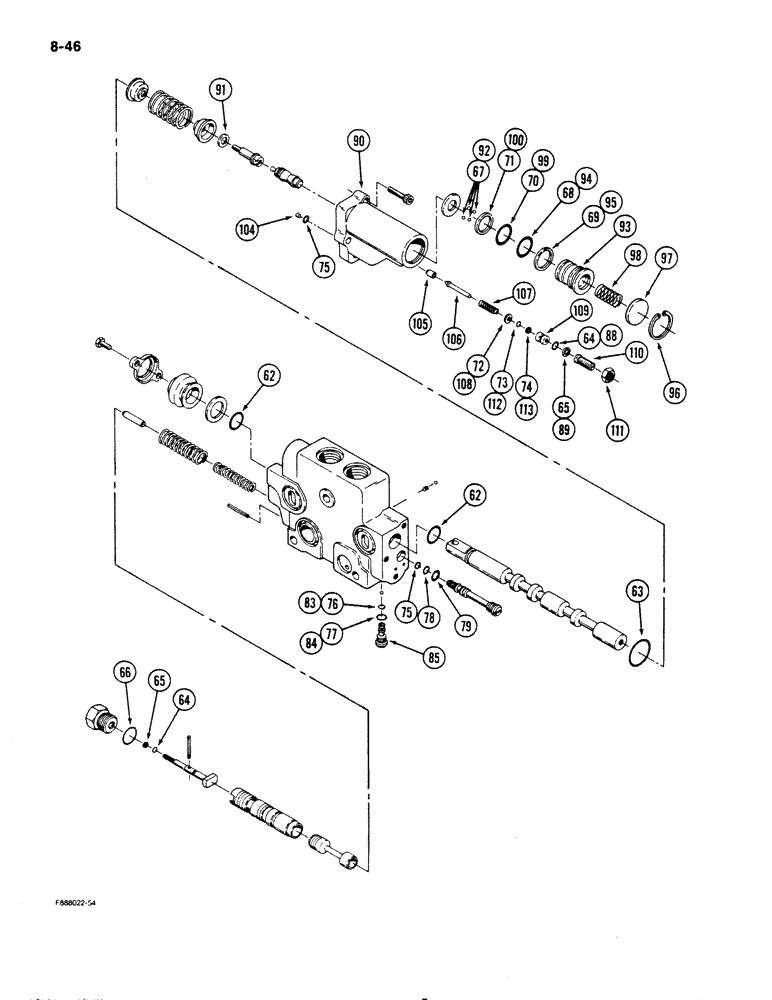

Запчасти Case IH 9130 (8-46) - HYDRAULIC REMOTE VALVE SECTION, FIRST, SECOND, THIRD AND FOURTH WITH FLOAT, [CONT] (08) - HYDRAULICS
![Схема запчастей Case IH 9130 - (8-46) - HYDRAULIC REMOTE VALVE SECTION, FIRST, SECOND, THIRD AND FOURTH WITH FLOAT, [CONT] (08) - HYDRAULICS](https://partsell.ru/storage/images/caseih/341660.png)
№
Артикул
Название
Примечание
Количество
50-2388T1
SEAL KIT
SEAL KIT - detent, primary and secondary, Includes: Ref. 62 - 79
1шт.
62
NSS
NOT SOLD SEPARAT
O-RING - seal, spool
2шт.
63
NSS
NOT SOLD SEPARAT
O-RING - seal, detent housing
1шт.
64
NSS
NOT SOLD SEPARAT
O-RING - seal
2шт.
65
NSS
NOT SOLD SEPARAT
RING - backup
2шт.
66
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
67
NSS
NOT SOLD SEPARAT
BALL - steel
8шт.
68
NSS
NOT SOLD SEPARAT
O-RING - seal, kickout piston
1шт.
69
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
70
NSS
NOT SOLD SEPARAT
O-RING - seal, kickout piston
1шт.
71
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
72
NSS
NOT SOLD SEPARAT
WASHER - spring
1шт.
73
NSS
NOT SOLD SEPARAT
O-RING - seal, poppet
1шт.
74
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
75
NSS
NOT SOLD SEPARAT
O-RING - seal
3шт.
76
NSS
NOT SOLD SEPARAT
O-RING - seal, shuttle, secondary
1шт.
77
NSS
NOT SOLD SEPARAT
O-RING - seal, shuttle, secondary
1шт.
78
NSS
NOT SOLD SEPARAT
O-RING - seal, shuttle, primary
1шт.
79
NSS
NOT SOLD SEPARAT
O-RING - seal, shuttle, primary
1шт.
A47210
PLUG
ASSEMBLY - shuttle, secondary, Includes: Ref. 83 and 84
1шт.
50-1654T1
SEAL KIT
KIT - secondary shuttle, Includes: Ref. 83 and 84
1шт.
83
NSS
NOT SOLD SEPARAT
O-RING - seal, shuttle, secondary
1шт.
84
NSS
NOT SOLD SEPARAT
O-RING - seal, shuttle, secondary
1шт.
85
NSS
NOT SOLD SEPARAT
PLUG ASSEMBLY - secondary shuttle
1шт.
A52435
HOUSING ASSY.
HOUSING ASSEMBLY - detent, Includes: Ref. 88 - 113
1шт.
88
NSS
NOT SOLD SEPARAT
O-RING - seal, poppet
1шт.
89
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
90
NSS
NOT SOLD SEPARAT
HOUSING - detent
1шт.
91
50-2379T1
WASHER
- guide
1шт.
Ref #91 balloon is pointing to incorrect part. Should be pointing to washer with no ref #, just to left of detent balls. On previous page, number assigned ref #7, is correct. Per Fargo Engineering Engineering NAPO TECH NOTE
1шт.
92
NSS
NOT SOLD SEPARAT
BALL - steel
8шт.
93
50-2380T1
PISTON
- kickout
1шт.
94
NSS
NOT SOLD SEPARAT
O-RING - seal, piston
1шт.
95
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
96
50-2381T1
RING, SNAP
RING - snap
1шт.
97
50-2382T1
RETAINER
- piston
1шт.
98
50-2383T1
SPRING
- detent
1шт.
99
NSS
NOT SOLD SEPARAT
O-RING - seal, piston
1шт.
100
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
104
50-1663T1
PLUG
- orifice
1шт.
105
50-1668T1
SEAT
- poppet
1шт.
106
NSS
NOT SOLD SEPARAT
POPPET - relief
1шт.
107
NSS
NOT SOLD SEPARAT
SPRING - poppet
1шт.
108
NSS
NOT SOLD SEPARAT
WASHER - spring
1шт.
109
50-2384T1
GOVERNOR
PISTON - regulator
1шт.
110
50-1717T1
SET SCREW
- set, slotted
1шт.
111
19-868
JAM NUT,Jam, 3/8"-24, G5
- hex jam, 3/8 inch NF
1шт.
112
NSS
NOT SOLD SEPARAT
O-RING - seal, poppet
1шт.
113
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
Выбрано товаров: 49
