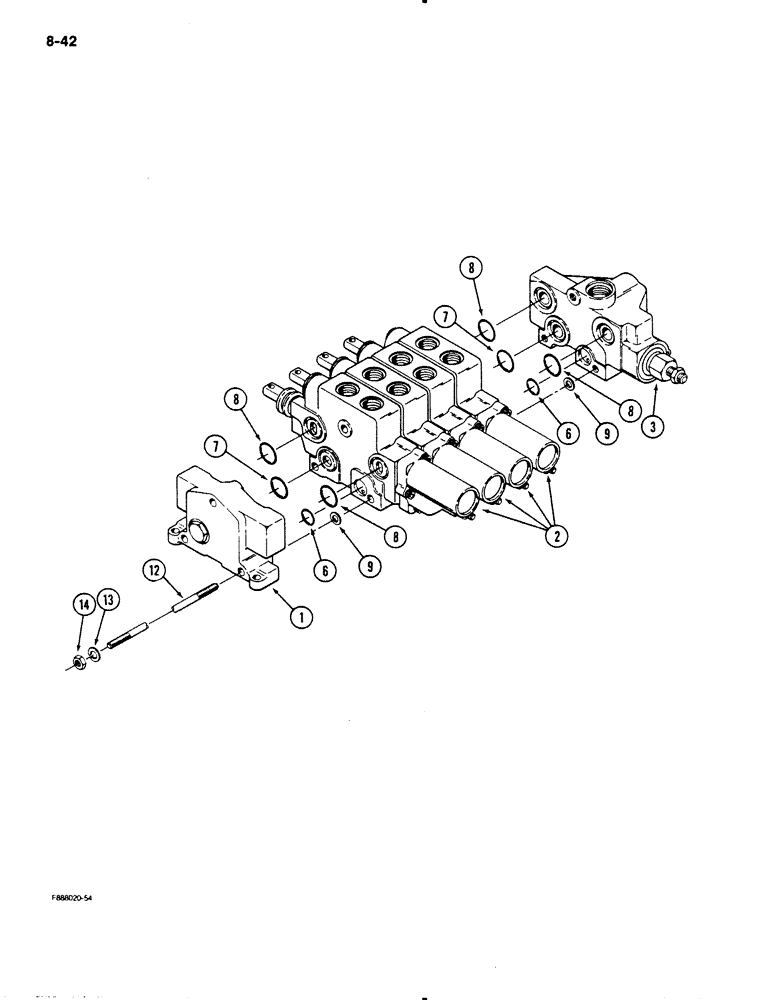

Запчасти Case IH 9130 (8-42) - HYDRAULIC REMOTE VALVE ASSEMBLY (08) - HYDRAULICS

50-2948T92

VALVE, CONTROL

VALVE ASSEMBLY - remote, two spool, Includes: Ref. 1 - 14

1шт.

50-2949T92

VALVE, CONTROL

VALVE ASSEMBLY - remote, three spool, Includes: Ref. 1 - 14

1шт.

50-2950T92

VALVE

ASSEMBLY - remote, four spool, Includes: Ref. 1 - 14

1шт.

1

A52403

BODY

COVER - end

1шт.

2

REF

INSTRUCTION

BODY ASSEMBLY - valve, float (See Fig. 8-44)

1шт.

3

REF

INSTRUCTION

BODY ASSEMBLY - inlet, with priority valve (See Fig. 8-48)

1шт.

2-3792T1

SEAL KIT

SEAL KIT - valve section, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - seal

3шт.

12

50-2658T1

STUD

- valve, three spool remote

3шт.

12

50-2659T1

STUD

- valve, four spool remote

3шт.

13

492-11038

LOCK WASHER,3/8"

3шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.
