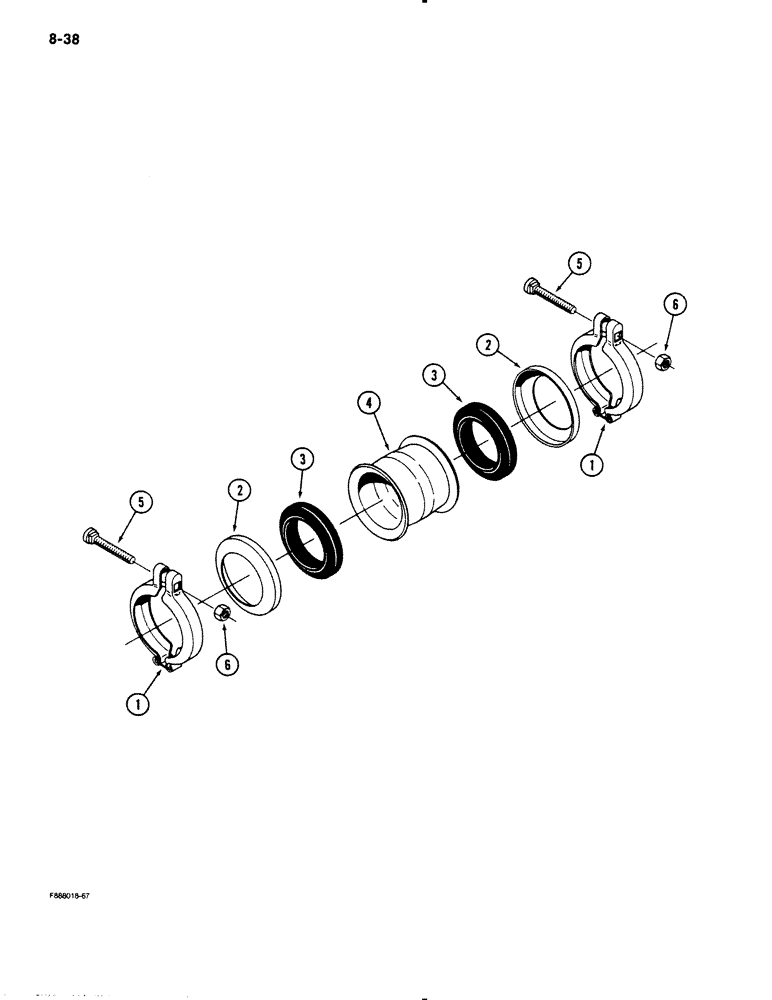

Запчасти Case IH 9130 (8-38) - HYDRAULIC TUBE JOINT (08) - HYDRAULICS

50-2782T91

TUBE

JOINT ASSEMBLY - tube, 1-1/4 inch, Includes: Ref. 1 - 6

1шт.

1

50-2856T1

COUPLING

- tube joint

2шт.

2

50-2857T1

RETAINER

- gasket

2шт.

3

50-2858T1

GASKET

- sealing, joint

2шт.

4

NSS

NOT SOLD SEPARAT

SLEEVE - tube joint

1шт.

5

50-2855T1

CAPSCREW,5/16" - 18 x 2"

BOLT - cartridge

2шт.

6

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.
