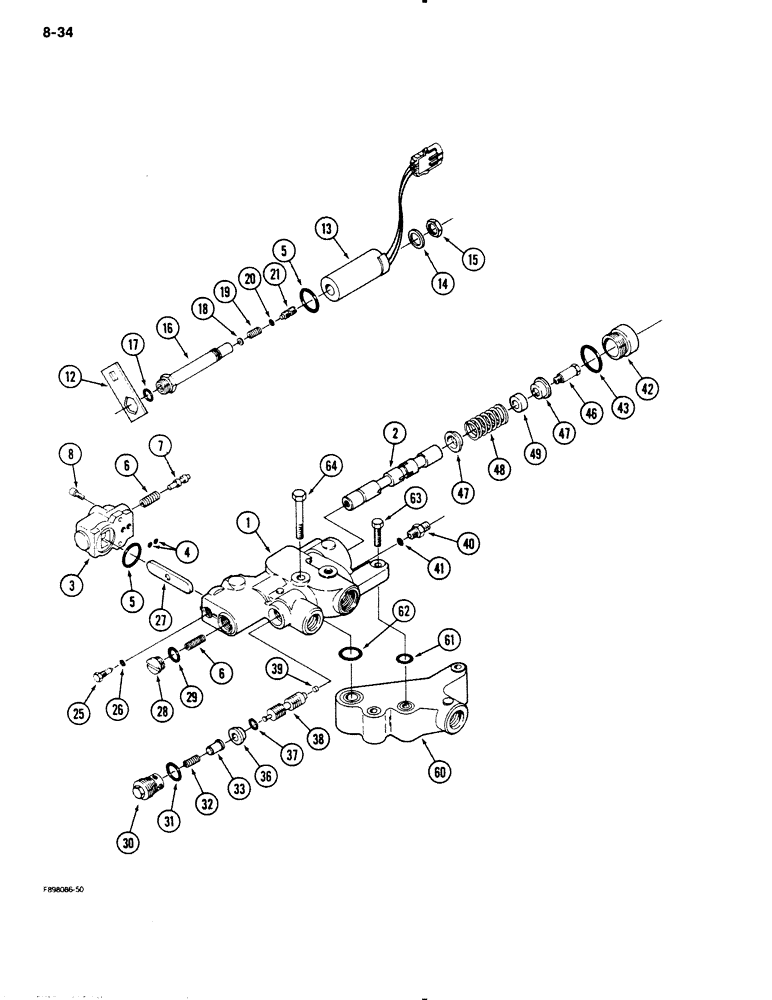

Запчасти Case IH 9130 (8-34) - HITCH VALVE ASSEMBLY (08) - HYDRAULICS

50-3107T91

CHECK VALVE

VALVE ASSEMBLY - three point hitch, Includes: Ref. 1 - 64

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - hitch (Order 50-3107T91), Includes: Ref. 1 - 49

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order 50-3107T91)

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order 50-3107T91)

1шт.

3

1971605C1

BODY

- solenoid mounting

1шт.

4

363226R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

- 1/8 ID x 1/16 inch

2шт.

Part of seal kit P/N 1971624C1

1шт.

5

1971617C1

O-RING

- 1-3/16 ID x 1/16 inch

2шт.

Part of seal kit P/N 1971624C1

1шт.

6

1971620C1

SPRING

- pivot lever

2шт.

7

1971601C1

SPOOL

- control

1шт.

8

1971618C1

SCREW

- machine

2шт.

12

1971602C1

PLUG

TAB - raise

1шт.

13

1971600C1

COIL ASSY.

COIL - solenoid

1шт.

14

A47955

WASHER

- flat

1шт.

15

1343583C1

NUT

- hex jam

1шт.

1971607C1

CORE

ASSEMBLY - solenoid, Includes: Ref. 16 - 21

1шт.

16

NSS

NOT SOLD SEPARAT

CORE - solenoid

1шт.

17

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- 5/8 x 13/16 inch

1шт.

Part of seal kit P/N 1971624C1

1шт.

18

A47960

WASHER

- flat

1шт.

19

A47961

SPRING

- solenoid

1шт.

20

A47983

O-RING,2.38mm Thk x 18.82mm ID

- 1/4 ID x 1/8 inch

1шт.

Part of seal kit P/N 1971624C1

1шт.

21

A47959

PLUG

- adjustment

1шт.

25

1971603C1

PLUG

ASSEMBLY - pivot, Includes: Ref. 26

1шт.

26

1971604C1

O-RING

- 15/64 ID x 1/16 inch

1шт.

Part of seal kit P/N 1971624C1

1шт.

27

1971609C1

LEVER

- pivot

1шт.

28

1971614C1

PLUG

ASSEMBLY - slotted, Includes: Ref. 29

1шт.

29

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 ID x 3/32 inch

1шт.

Part of seal kit P/N 1971624C1

1шт.

30

1340767C1

PLUG

ASSEMBLY - lockout, Includes: Ref. 31

1шт.

31

R30989

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

- 7/8 x 1-1/16 inch

1шт.

Part of seal kit P/N 1971624C1

1шт.

32

A47976

SPRING

- poppet

1шт.

33

1971610C1

SPOOL

POPPET - lockout plunger

1шт.

36

A47977

SEAT

- lockout plunger, Includes: Ref. 37

1шт.

37

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- 35/64 ID x 7/64 inch

1шт.

Part of seal kit P/N 1971624C1

1шт.

38

1971613C1

SPOOL

PLUNGER ASSEMBLY - lockout

1шт.

39

NSS

NOT SOLD SEPARAT

INSERT - (Order 1971613C1)

1шт.

40

1971622C1

PLUG

ASSEMBLY - lockout plunger, Includes: Ref. 41

1шт.

41

1971623C1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

- 19/64 ID x 1/16 inch

1шт.

Part of seal kit P/N 1971624C1

1шт.

42

1971616C1

END ASSY.

CAP ASSEMBLY - end, Includes: Ref. 43

1шт.

43

D26819

O-RING,1.299" ID x 1.505" OD

- 1-5/16 X 3/32 inch

1шт.

Part of seal kit P/N 1971624C1

1шт.

46

1971615C1

SCREW

- spool

1шт.

47

1971599C1

WASHER

- special, deep

2шт.

48

1971621C1

SPRING

- valve spool

1шт.

49

1971619C1

SPACER

- valve spool

1шт.

60

50-3153T1

VALVE BLOCK

BLOCK - port

1шт.

61

90-6019T1

O-RING,0.424" ID x 0.103" Width

- 27/64 x 7/64 inch

1шт.

62

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

- 1-1/4 x 1-1/2 inch

1шт.

63

19-478

BOLT,Hex, 3/8" - 16 x 1.75", Gr 8

- hex, 3/8 NC x 1-3/4 inch, Grade 8

1шт.

64

19-1119

BOLT,3/8" - 16 x 3 1/2", Gr 8

- hex, 3/8 NC x 3-1/2 inch, Grade 8

1шт.

1971624C1

SEAL KIT

KIT - seal, Includes Refs. 4, 5, 17, 20, 26, 29, 31, 37, 41 and 43

1шт.
