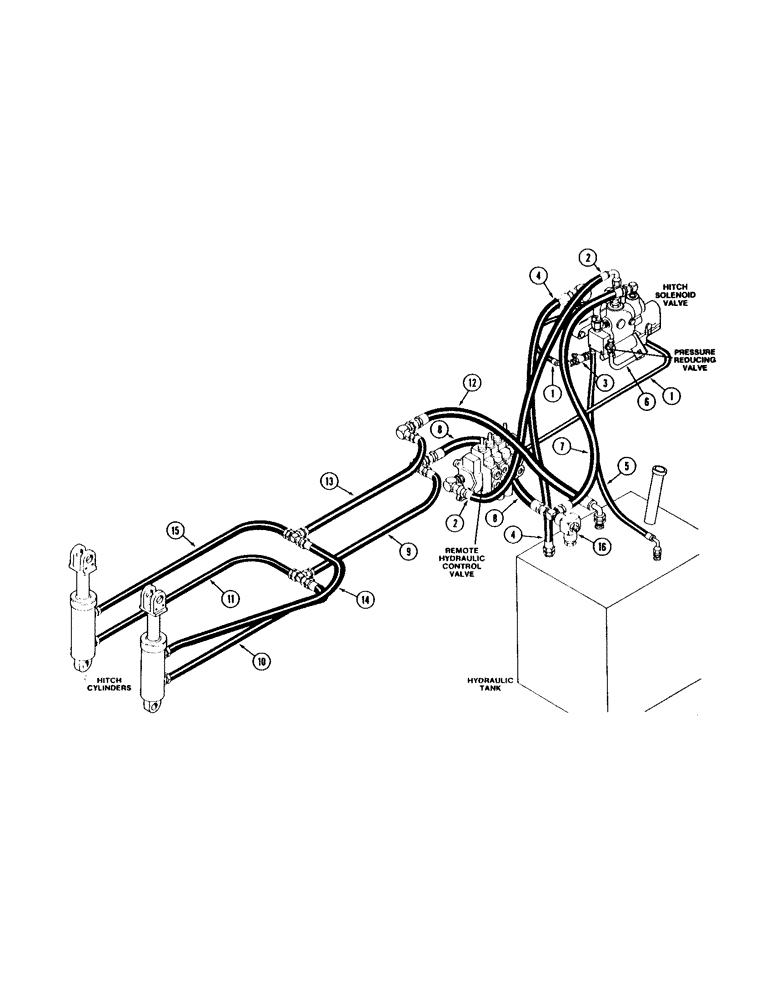

Запчасти Case IH 9130 (1-20) - PICTORIAL INDEX, HITCH HYDRAULICS, ELECTRONIC CONTROLLED (00) - PICTORIAL INDEX

1

Hitch Valve Sense Hose, Fig. 8-22

1шт.

2

Hitch Valve Supply Hose, Fig. 8-22

1шт.

3

Shuttle Valve, Fig. 8-22

1шт.

4

Hitch Valve Drain Hose, Fig. 8-22

1шт.

5

Pressure Reducing Valve Drain Hose, Fig. 8-22

1шт.

6

Pressure Reducing Valve Tube, Fig. 8-22

1шт.

7

Hitch Cylinder Supply Hose, Fig. 8-22

1шт.

8

Hitch Cylinder Supply Hose, Fig. 8-22

1шт.

9

Hitch Cylinder Supply Hose, Fig. 8-24

1шт.

10

Hitch Cylinder Supply Hose, Fig. 8-24

1шт.

11

Hitch Cylinder Supply Hose, Fig. 8-24

1шт.

12

Hitch Cylinder Drain Hose, Fig. 8-22

1шт.

13

Hitch Cylinder Drain Hose, Fig. 8-24

1шт.

14

Hitch Cylinder Drain Hose, Fig. 8-24

1шт.

15

Hitch Cylinder Drain Hose, Fig. 8-24

1шт.

16

Relief Valve, Fig. 8-22

1шт.
