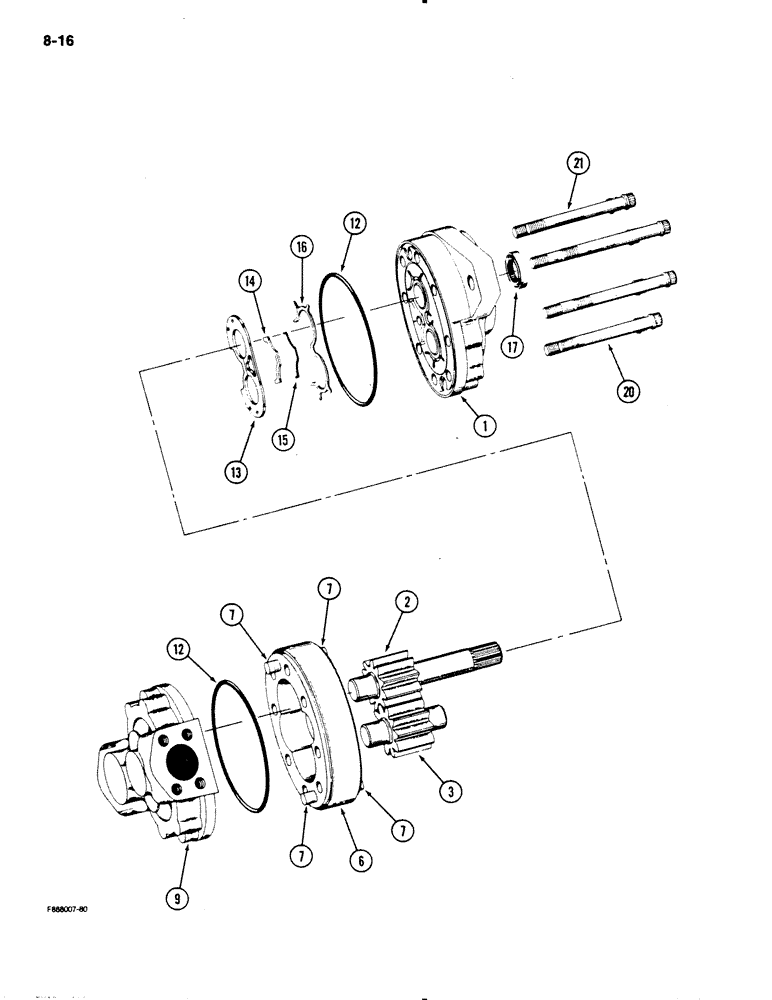

Запчасти Case IH 9130 (8-16) - HYDRAULIC GEAR PUMP ASSEMBLY (08) - HYDRAULICS

50-2662T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - gear, Includes: Ref. 1 - 21

1шт.

1

50-2831T1

LARGE PLATE

PLATE ASSEMBLY - front, with bearings

1шт.

2

50-2830T1

GEAR

- drive

1шт.

3

50-2829T1

GEAR

- idler

1шт.

50-2827T91

BODY

ASSEMBLY - pump, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

7

A17924

PIN

- dowel

4шт.

9

50-2826T1

PLATE

ASSEMBLY - rear, with bearings

1шт.

50-2834T1

SEAL KIT

SEAL KIT - pump, Includes: Ref. 12 - 17

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - seal, body

2шт.

13

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - bearing

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - molded

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - backup

1шт.

17

18-680

SEAL

- shaft, input

1шт.

20

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

BOLT - 12 point head, 3/8 NC x 3-3/4 inch

4шт.

21

19-1626

BOLT,Flg, 3/8" - 16 x 4", Gr 8

- 12 point, 3/8 NC x 4 inch, Grade 8

4шт.
