Запчасти Case IH 9130 (1-18) - PICTORIAL INDEX, STEERING HYDRAULICS, WITH FRONT STEERABLE AXLE (00) - PICTORIAL INDEX

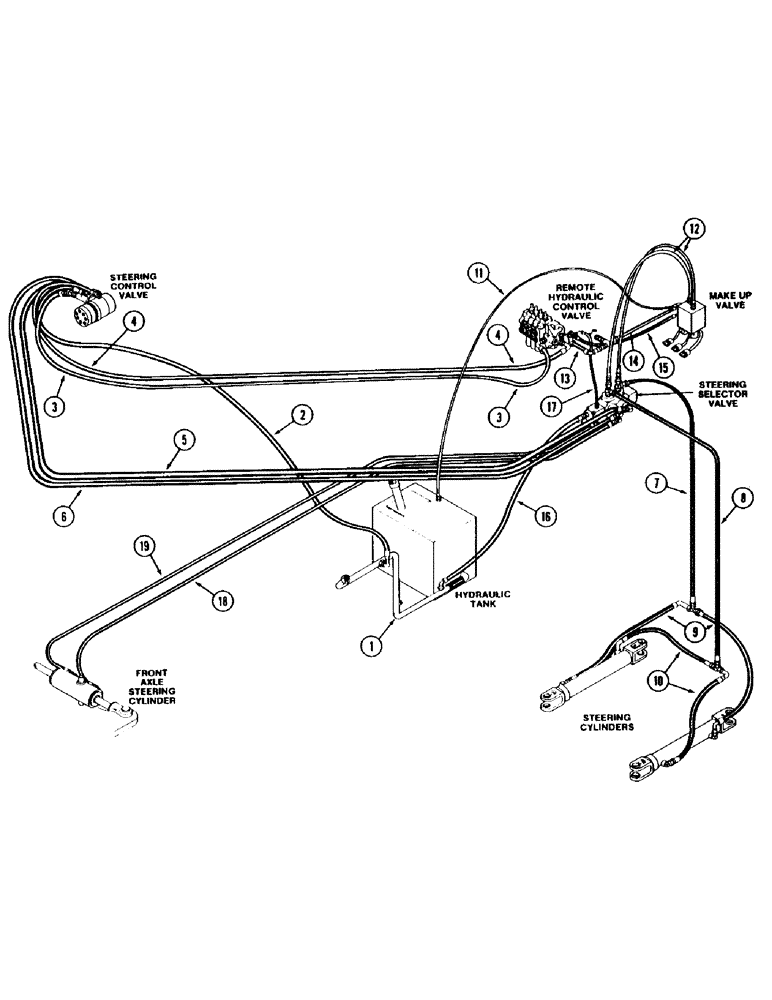

Схема запчастей Case IH 9130 - (1-18) - PICTORIAL INDEX, STEERING HYDRAULICS, WITH FRONT STEERABLE AXLE (00) - PICTORIAL INDEX
18
4
8
1
9
12
15
3
11
17
3
2
7
6
14
13
16
5
10
4
19

Артикул

Название

Примечание

Количество

1

Hydraulic Return Tube, Fig. 8-2

1шт.

2

Steering Drain Hose, Fig. 5-8

1шт.

3

Steering Supply Hose, Fig. 5-8

1шт.

4

Steering Pressure Sensing Hose, Fig. 5-8

1шт.

5

Left Turn Steering Hose, Fig. 5-8

1шт.

6

Right Turn Steering Hose, Fig. 5-8

1шт.

7

Left Turn Steering Hose, Fig. 5-8

1шт.

8

Right Turn Steering Hose, Fig. 5-8

1шт.

9

Left Turn Steering Hose, Fig. 5-8

1шт.

10

Right Turn Steering Hose, Fig. 5-8

1шт.

11

Make Up Valve Drain Hose, Fig. 5-22

1шт.

12

Make Up Valve To Selector Valve Hose, Fig. 5-20

1шт.

13

Make Up Valve Sensing Hose, Fig. 5-22

1шт.

14

Make Up Valve Sensing Hose, Fig. 5-22

1шт.

15

Make Up Valve Pressure Hose, Fig. 5-22

1шт.

16

Selector Valve Drain Hose, Fig. 5-20

1шт.

17

Selector Valve Sensing Hose, Fig. 5-20

1шт.

18

Left Turn Steering Hose, Fig. 5-20

1шт.

19

Right Turn Steering Hose, Fig. 5-20

1шт.

Выбрано товаров: 19
