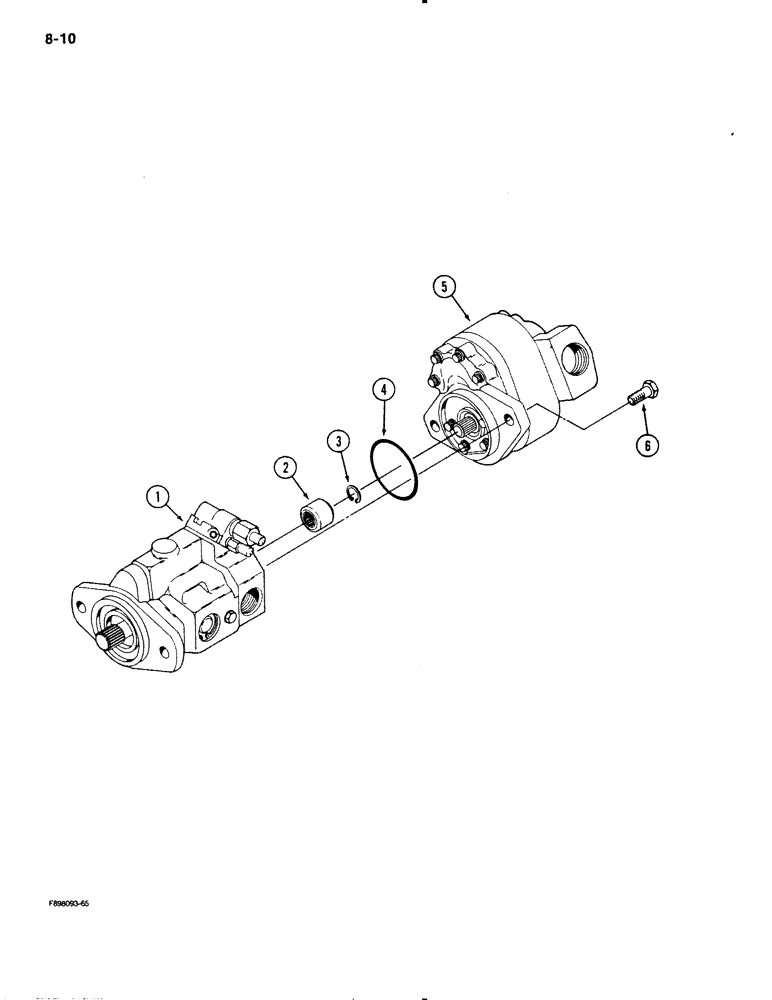

Запчасти Case IH 9130 (8-10) - HYDRAULIC PUMP ASSEMBLY (08) - HYDRAULICS

50-3223T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - tandem, piston and gear, Includes: Ref. 1 - 6

1шт.

1

REF

INSTRUCTION

PUMP ASSEMBLY - piston (See Fig. 8-12)

1шт.

2

50-2663T1

COUPLING

- drive, pump

1шт.

3

50-2666T1

RING, SNAP

RING - snap

1шт.

4

D41420

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

- seal

1шт.

5

REF

INSTRUCTION

PUMP ASSEMBLY - gear (See Fig. 8-16)

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.
