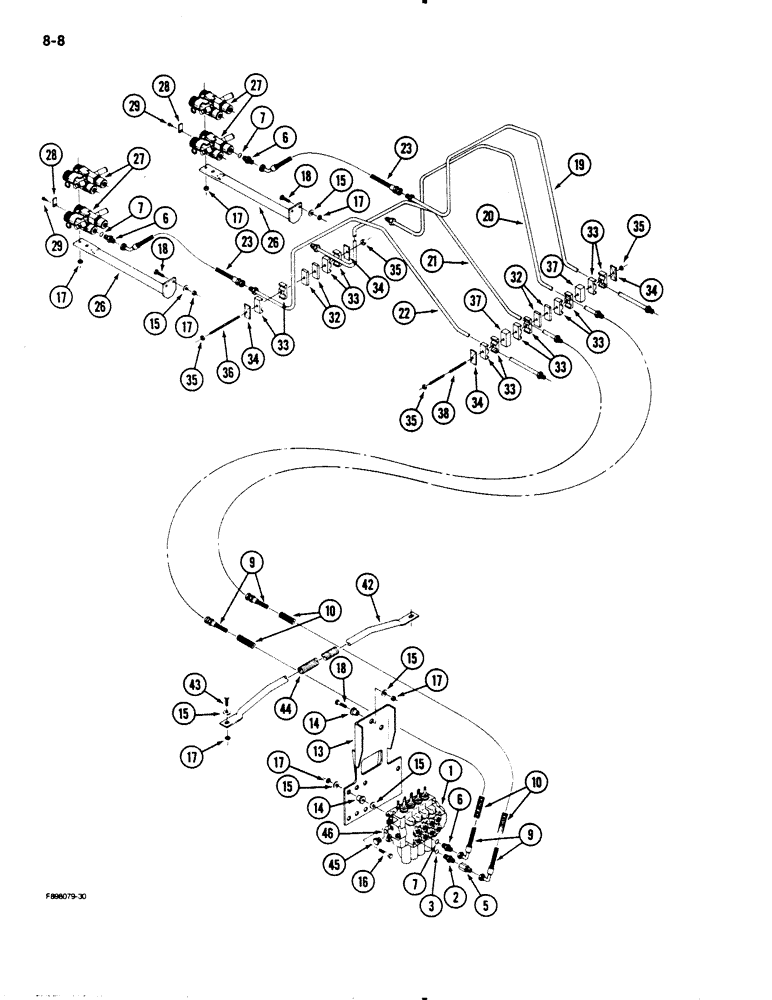

Запчасти Case IH 9130 (8-08) - HYDRAULIC COUPLERS AND LINES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Fig. 8-42)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

4шт.

3

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

4шт.

5

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTOR - reducer, 7/8 x 3/4 inch thread

4шт.

6

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 7 3/4"-16, 37º x 7/8"-14, O-Ring

12шт.

7

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

12шт.

9

31-2687

HOSE ASSY.

HOSE - control valve to tubes, 60 inch

8шт.

10

50-2952T1

GUARD

- hose, protector, 55 inch (Order S119717 and, Serial Range: cut-length)

8шт.

13

60-4358T2

SUPPORT

BRACKET - valve mounting (REPLACED 60-4358T1)

1шт.

14

196504C1

BUSHING

MOUNT - isolator, rubber

6шт.

15

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

15шт.

16

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

3шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

16шт.

18

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

7шт.

19

50-2723T1

TUBE

- remote coupler, coupler 1

2шт.

20

50-2722T2

TUBE

- remote coupler, coupler 2

2шт.

21

50-2725T1

TUBE

- remote coupler, coupler 3

2шт.

22

50-2724T2

TUBE

- remote coupler, coupler 4

2шт.

23

31-2688

HOSE ASSY.

HOSE - tube to remote couplers, 19-1/2 inch

8шт.

26

50-2880T1

SUPPORT

MOUNT - coupler

2шт.

27

REF

INSTRUCTION

COUPLER ASSEMBLY - remote (See Fig. 8-50)

2шт.

28

50-2778T1

PLATE

MARKER - coupler, No. 1

1шт.

28

50-2779T1

PLATE

MARKER - coupler, No. 2

1шт.

28

50-2780T1

PLATE

MARKER - coupler, No. 3

1шт.

28

50-2781T1

PARTITION

MARKER - coupler, No. 4

1шт.

29

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

4шт.

32

70-4587T1

SPACER

- clamp mounting

10шт.

33

50-2531T1

CLAMP

- split halves

24шт.

34

50-2532T1

PLATE

- cover, clamp

10шт.

35

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

36

50-2714T1

STUD

- clamp mounting, 5/16 NC x 4-1/2 inch

4шт.

37

50-2712T1

SPACER

- tube clamp

2шт.

38

50-2713T1

STUD

- clamp, 5/16 NC x 8-1/2 inch (4 remotes)

1шт.

38

50-2720T1

STUD

- clamp mounting, 5/16 NC x 6-1/2 inch (3 remotes)

1шт.

38

50-2721T1

STUD

- clamp mounting, 5/16 NC x 3-1/4 inch (2 remotes)

1шт.

42

50-3346T1

SUPPORT

- hose (REPLACED 50-2951T1)

1шт.

43

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

44

50-2741T1

CONDUIT

GUARD - hose protector, 30 inch (Order S119717 and, Serial Range: cut-length)

1шт.

45

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 46 Hex Hd, 1 1/16"-12 ORB

1шт.

46

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

35-1754T91

KIT - third spool valve (Includes parts needed to add the additional remote hydraulic spool) (Machinery item)

1шт.

35-1755T91

KIT - fourth spool valve (Includes parts needed to add the additional remote hydraulic spool) (Machinery item)

1шт.
