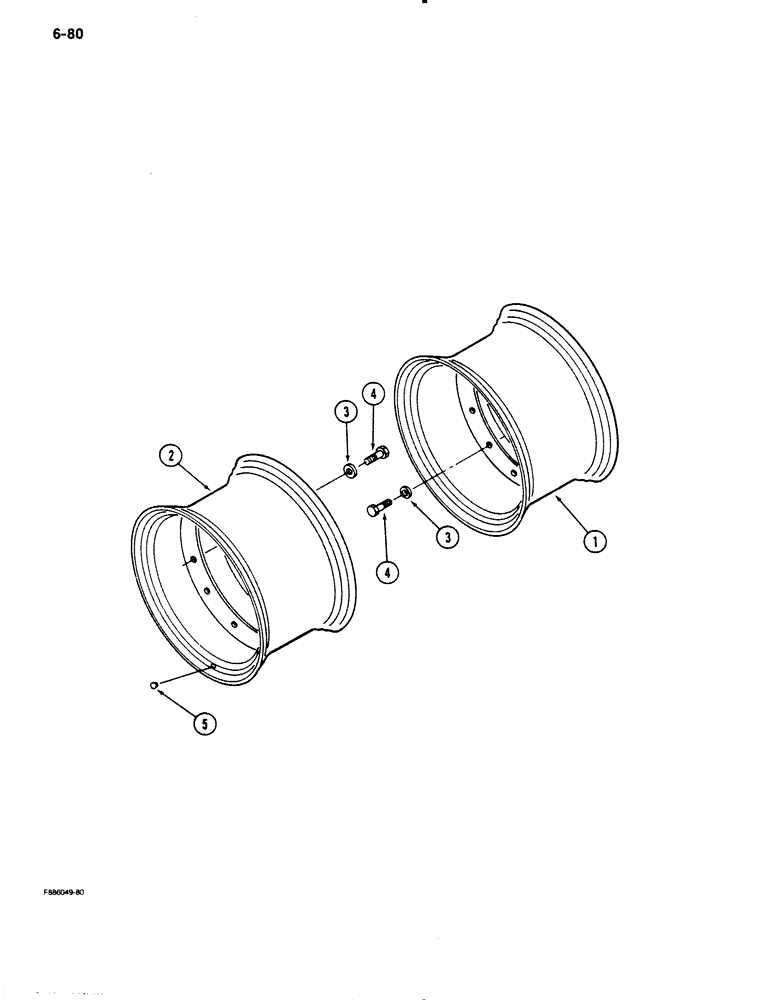

Запчасти Case IH 9130 (6-80) - WHEELS, MOUNTED ON INNER AND OUTER HUBS, K593 BAR AXLE (06) - POWER TRAIN

1

30-1386T1

WHEEL

- inner, 14.9 x 38, 12 inch width

4шт.

1

30-1383T1

WHEEL

- inner, 16.9 x 38, 15 inch width

4шт.

1

20-46

RIM

WHEEL - inner, 18.4 x 34, 16 inch width

4шт.

1

30-1110T1

RIM

WHEEL - inner, 18.4 x 38 inch, 16 inch width, 7/32 inch disc

4шт.

1

20-125

RIM

WHEEL - inner, 18.4 x 38, 16 inch width, 3/16 inch disc

4шт.

1

30-1112T1

RIM

WHEEL - inner, 18.4 x 38 inch, 18 inch width

4шт.

1

30-1358T1

RIM

WHEEL - inner, 18.4 x 42 inch, 16 inch width

4шт.

1

30-1123T1

RIM

WHEEL - inner, 20.8 x 34 inch, 18 inch width

4шт.

1

20-294

RIM

WHEEL - inner, 30.5 x 32 inch, 27 inch width

4шт.

1

30-1159T1

RIM

WHEEL - inner, 30.5 x 32 inch, 30 inch width

4шт.

1

30-1013T1

RIM

WHEEL - inner, 30.5 x 32 inch, 27 inch width, heavy duty with 3/4 inch disc

4шт.

1

30-1218T1

RIM

WHEEL - inner, 30.5 x 32 inch, 30 inch width, heavy duty with 3/4 inch disc

4шт.

1

30-1112T1

RIM

WHEEL - inner, 20.8 x 38 inch, 18 inch width

4шт.

1

30-1313T1

RIM

WHEEL - inner, 20.8 x 42 inch, 18 inch width

4шт.

1

30-1124T1

RIM

WHEEL - inner, 23.1 x 34 inch, 20 inch width

4шт.

1

20-293

RIM

WHEEL - inner, 24.5 x 32 inch, 21 inch width

4шт.

1

30-1161T1

RIM

WHEEL - inner, 24.5 x 32 inch, 24 inch width

4шт.

2

30-1386T1

WHEEL

- dual, 14.9 x 38 inch, 12 inch width (REPLACED 20-1386T1)

4шт.

2

30-1383T1

WHEEL

- dual, 16.9 x 38 inch, 15 inch width (RELPACED 20-1383T1

4шт.

2

20-46

RIM

WHEEL - dual, 18.4 x 4 inch, 16 inch width

4шт.

2

30-1110T1

RIM

WHEEL - dual, 18.4 x 38 inch, 16 inch width, 7/32 inch disc

4шт.

2

20-125

RIM

WHEEL - dual, 18.4 x 38, 16 inch width, 3/16 inch disc

4шт.

2

30-1112T1

RIM

WHEEL - dual, 18.4 x 38 inch, 18 inch width

4шт.

2

30-1358T1

RIM

WHEEL - dual, 18.4 x 42 inch, 16 inch width

4шт.

2

30-1123T1

RIM

WHEEL - dual, 20.8 x 34 inch, 18 inch width

4шт.

2

30-1112T1

RIM

WHEEL - dual, 20.8 x 38 inch, 18 inch width

4шт.

2

30-1124T1

RIM

WHEEL - dual, 23.1 x 34 inch, 20 inch width

4шт.

2

20-293

RIM

WHEEL - dual, 24.5 x 32 inch, 21 inch width

4шт.

2

30-1161T1

RIM

WHEEL - dual, 24.5 x 32 inch, 24 inch width

4шт.

3

70-5535T1

WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk

- flat, hardened

80шт.

4

426-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, Grade 8

80шт.

5

22-521

PLUG

- hole

8шт.
