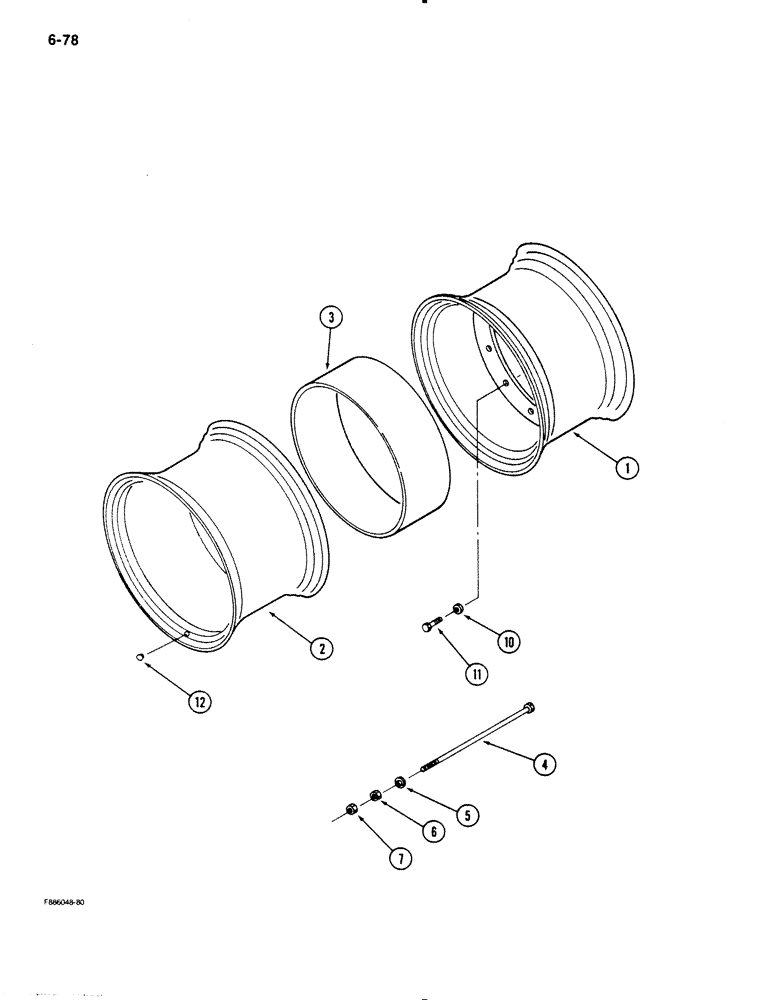

Запчасти Case IH 9130 (6-78) - WHEELS, WITH SPACER BAND DUALS, K593 AXLE (06) - POWER TRAIN

1

30-1386T1

WHEEL

- inner, 14.9 x 38, 12 inch width

4шт.

1

30-1383T1

WHEEL

- inner, 16.9 x 38, 15 inch width

4шт.

1

20-46

RIM

WHEEL - inner, 18.4 x 34, 16 inch width

4шт.

1

30-1124T1

RIM

WHEEL - inner, 23.1 x 34 inch, 20 inch width

4шт.

1

30-1110T1

RIM

WHEEL - inner, 18.4 x 38 inch, 16 inch width

4шт.

1

20-125

RIM

WHEEL - inner, 18.4 x 38, 16 inch width, 3/16 inch disc

4шт.

1

30-1112T1

RIM

WHEEL - inner, 18.4 x 38, 18 inch width, 7/32 inch disc

4шт.

1

30-1112T1

RIM

WHEEL - inner, 20.8 x 38 inch, 18 inch width

4шт.

1

20-293

RIM

WHEEL - inner, 24.5 x 32 inch, 21 inch width

4шт.

1

30-1161T1

RIM

WHEEL - inner, 24.5 x 32 inch, 24 inch width

4шт.

1

20-294

RIM

WHEEL - inner, 30.5 x 32 inch, 27 inch width

4шт.

1

30-1159T1

RIM

WHEEL - inner, 30.5 x 32 inch, 30 inch width

4шт.

1

30-1013T1

RIM

WHEEL - inner, 30.5 x 32 inch, 27 inch width, heavy duty with 3/4 inch disc

4шт.

1

30-1218T1

RIM

WHEEL - inner, 30.5 x 32 inch, 30 inch width, heavy duty with 3/4 inch disc

4шт.

1

30-1358T1

RIM

WHEEL - inner, 18.4 x 42 inch, 16 inch width

4шт.

1

30-1313T1

RIM

WHEEL - inner, 20.8 x 42 inch, 18 inch width

4шт.

1

30-1313T1

RIM

WHEEL - inner, 20.8 x 42 inch, 18 inch width

4шт.

2

30-1389T1

WHEEL

- dual, 14.9 x 38, 12 inch width

4шт.

2

30-1388T1

RIM

WHEEL - dual, 16.9 x 38, 15 inch width

4шт.

2

20-47

RIM

WHEEL - dual, 18.4 x 34, 16 inch width

4шт.

2

20-107

RIM

WHEEL - dual, 23.1 x 34 inch, 20 inch width

4шт.

2

20-127

RIM

WHEEL - dual, 18.4 x 38 inch, 16 inch width

4шт.

2

20-127

RIM

WHEEL - dual, 18.4 x 38 inch, 16 inch width, 3/16 inch disc

4шт.

2

20-191

RIM

WHEEL - dual, 18.4 x 38 inch, 18 inch width, 7/32 inch disc

4шт.

2

20-191

RIM

WHEEL - dual, 20.8 x 38 inch, 18 inch width

4шт.

2

20-56

RIM

WHEEL - dual, 24.5 x 32 inch, 21 inch width

4шт.

2

30-1152T1

RIM

WHEEL - dual, 24.5 x 32 inch, 24 inch width

4шт.

2

30-1369T1

WHEEL

- dual, 18.4 x 42 inch, 16 inch width

4шт.

2

30-1317T1

RIM

WHEEL - dual, 18.4 x 42 inch, 18 inch width

4шт.

2

30-1317T1

RIM

WHEEL - dual, 20-.8 x 42 inch, 18 inch width

4шт.

3

20-70T1

SPACER

BAND - spacer, 32 x 13 inch wide

4шт.

3

20-839T1

SPACER

BAND - spacer, 32 x 15 inch wide

4шт.

3

20-162T1

SPACER

BAND - spacer, 34 x 13 inch wide

4шт.

3

20-397T1

SPACER

BAND - spacer, 34 x 15 inch wide

4шт.

3

20-1007T1

SPACER

BAND - spacer, 38 x 13 inch wide

4шт.

3

20-1001T1

SPACER

BAND - spacer, 38 x 15 inch wide

4шт.

3

30-1367T1

SPACER

BAND - spacer, 42 x 13 inch wide

4шт.

3

30-1318T1

SPACER

BAND - spacer, 42 x 15 inch wide

4шт.

4

35-1322T92

BOLT

KIT - tie bolt, 7/8 UNC x 27 inch, Includes: Ref. 5 - 7

24шт.

Order nut, 129-109, nut 129-149 and tie bolt 19-6251.

1шт.

4

35-1323T91

BOLT

KIT - tie bolt, 7/8 UNC x 32 inch, Includes: Ref. 5 - 7

24шт.

Order nut 129-109, nut 129-149 and tie bolt 19-5746.

1шт.

4

35-1324T91

KIT

- tie bolt, 7/8 NC x 34 inch, Includes: Ref. 5 - 7

24шт.

4

35-1325T91

BOLT

KIT - tie bolt, 7/8 NC x 36 inch, Includes: Ref. 5 - 7

24шт.

5

20-62

WASHER

- flat, 7/8 x 3 x 1/4 inch

24шт.

6

425-1414

JAM NUT,Jam, 7/8"-9, G5

- hex, jam, 7/8 inch NC

24шт.

7

19-457

NUT,7/8"-9, G5

- hex, 7/8 inch NC

24шт.

10

70-5535T1

WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk

- flat, hardened

40шт.

11

426-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, Grade 8

40шт.

12

22-521

PLUG

- hole

8шт.
