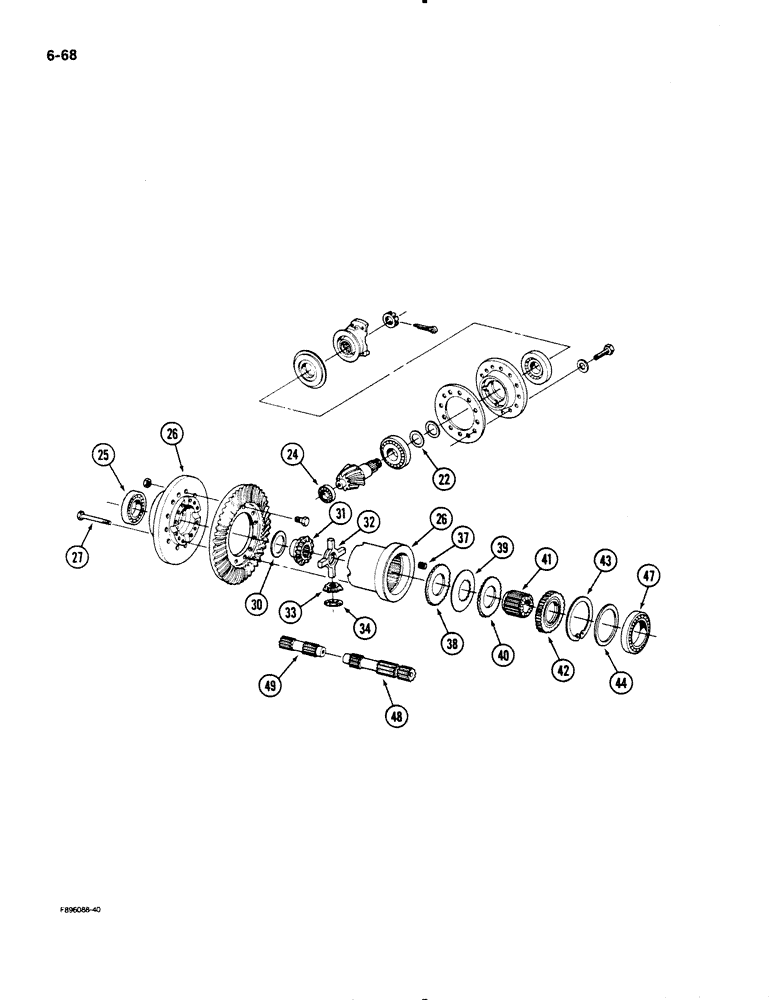

Запчасти Case IH 9130 (6-68) - AXLE ASSEMBLY, DIFFERENTIAL, K593 BAR AXLE, [CONT] (06) - POWER TRAIN

90-6994T91

AXLE, FRONT

AXLE ASSEMBLY - front (Without differential lock) (Continued), Includes: Ref. 22 - 49 and Ref. 1 - 20 on Fig. 6-66

1шт.

90-6995T91

REAR AXLE

AXLE ASSEMBLY - rear (Without differential lock), Includes: Ref. 22 - 49 and Ref. 1 - 20 on Fig. 6-66

1шт.

90-6996T91

AXLE, FRONT

AXLE ASSEMBLY - front (With differential lock), Includes: Ref. 22 - 49 and Ref. 1 - 20 on Fig. 6-66

1шт.

90-6997T91

REAR AXLE

AXLE ASSEMBLY - rear (With differential lock), Includes: Ref. 22 - 49 and Ref. 1 - 20 on Fig. 6-66

1шт.

22

33-1202T1

SPACER

- bearing, 6.90 mm thick

1шт.

22

33-1203T1

SPACER

- bearing, 7.00 mm thick

1шт.

22

33-1204T1

SPACER

- bearing, 7.02 mm thick

1шт.

22

33-1205T1

SPACER

- bearing, 7.04 mm thick

1шт.

22

33-1206T1

SPACER

- bearing, 7.06 mm thick

1шт.

22

33-1207T1

SPACER

- bearing, 7.08 mm thick

1шт.

22

33-1208T1

SPACER

- bearing, 7.10 mm thick

1шт.

22

33-1209T1

SPACER

- bearing, 7.20 mm

1шт.

22

33-1210T1

SPACER

- bearing, 7.32 mm thick

1шт.

22

33-1211T1

SPACER

- bearing, 7.44 mm thick

1шт.

22

33-1212T1

SPACER

- bearing, 7.56 mm thick

1шт.

22

33-1213T1

SPACER

- bearing, 7.68 mm thick

1шт.

22

33-1214T1

SPACER

- bearing, 7.80 mm thick

1шт.

22

33-1215T1

SPACER

- bearing, 7.92 mm thick

1шт.

24

33-1219T1

ROLLER BEARING,35 mm ID x 80 mm OD x 21 mm

- roller

1шт.

25

16-1523

BEARING ASSY,85mm ID x 130mm OD x 29mm W

BEARING - tapper roller

1шт.

26

33-1492T91

CASE ASSY.

CASE ASSEMBLY - differential halves (Without differential lock)

1шт.

26

33-1491T91

CASE ASSY.

CASE ASSEMBLY - differential halves (With differential lock), Includes: Ref. 27

1шт.

27

33-1261T1

CAPSCREW,Flg, 5/16" - 18 x 1", Gr 8

BOLT - hex, 14 mm - 1.5 x 130 mm

12шт.

30

33-1225T1

SPACER

- gear wear

2шт.

31

33-1226T1

GEAR

- side

2шт.

32

33-1227T1

DIFF. SPIDER

SPIDER - pinion gear

1шт.

33

33-1228T1

GEAR

- pinion

4шт.

34

33-1229T1

SPACER

- coned, gear wear

4шт.

37

33-1230T1

SPRING

- compression (With differential lock only)

17шт.

38

33-1231T1

DISC

DISK - thrust (With differeential lock only)

1шт.

39

33-1493T1

DISC

DISK - inner (With differential lock only)

12шт.

40

33-1494T1

DISC

DISK - outer (With differential lock only)

11шт.

41

33-1495T1

HUB

- splined (With differential lock only)

1шт.

42

33-1496T1

DISC

PLATE - backing (With differential lock only)

1шт.

43

1-6727

RING, SNAP

RING - snap (With differential lock only)

1шт.

44

33-1236T1

WASHER

- bearing spacer (With differential lock only)

1шт.

Ref #44 - (7 1/16" O.D. 6.56 I.D. .18" Thk)

1шт.

47

33-1497T1

TAPERED BEARING,127mm ID x 182.56mm OD x 39.69mm W

BEARING - taper roller

1шт.

48

33-1498T1

SHAFT

- axle, long inner

1шт.

49

33-1499T1

SHAFT

- axle, short inner

1шт.
