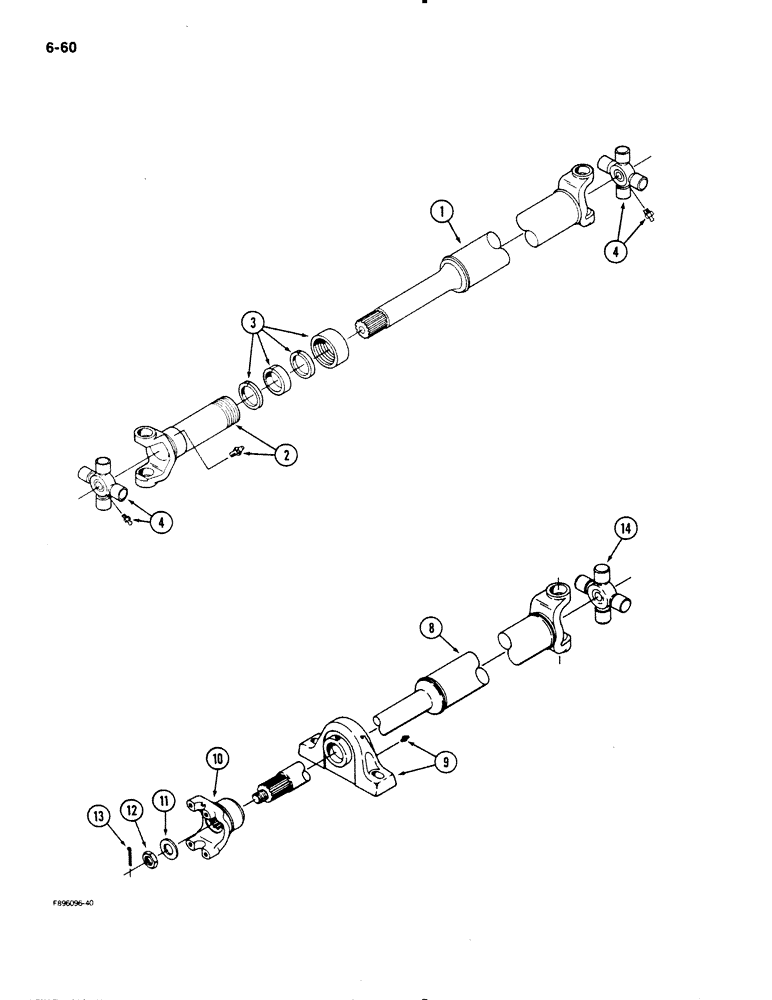

Запчасти Case IH 9130 (6-60) - PTO DRIVE SHAFT ASSEMBLIES (06) - POWER TRAIN

90-7003T91

DRIVE SHAFT

SHAFT ASSEMBLY - drive, PTO clutch to rear PTO shaft, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - flanged

1шт.

3

33-1002T1

SEAL ASSY.

SEAL ASSEMBLY - shaft retainer

1шт.

4

33-1003T2

UNIVERSAL JOINT

SPIDER ASSEMBLY - shaft

2шт.

90-6641T93

DRIVE SHAFT

SHAFT ASSEMBLY - drive, front PTO shaft to transfer case, Includes: Ref. 8 - 14

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - drive

1шт.

9

33-1007T1

PILLOW BLOCK

BEARING - pillow block

1шт.

10

33-1307T1

FORK

YOKE - drive shaft

1шт.

11

33-1308T1

WASHER

- flat, retainer

1шт.

12

33-1309T1

NUT

- drive shaft yoke

1шт.

13

33-1310T1

PIN, SPLIT (COTTER)

PIN - cotter

1шт.

14

33-1003T2

UNIVERSAL JOINT

SPIDER ASSEMBLY - shaft

1шт.
