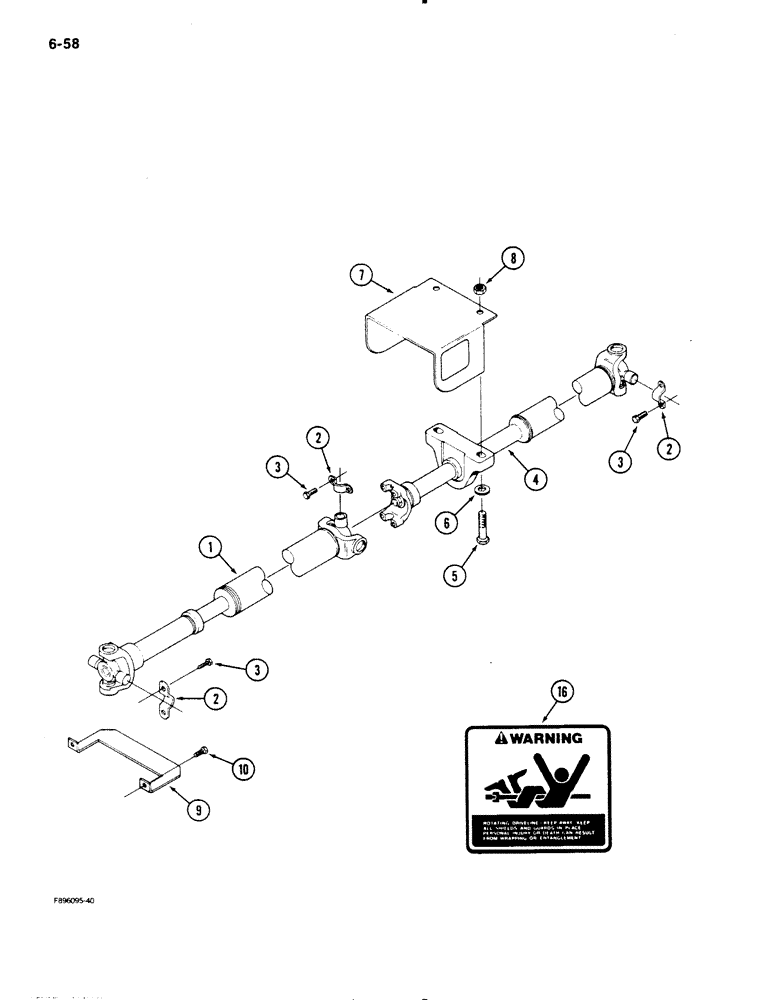

Запчасти Case IH 9130 (6-58) - PTO DRIVE SHAFT MOUNTING (06) - POWER TRAIN

1

REF

INSTRUCTION

DRIVE SHAFT - PTO, front, PTO clutch to rear shaft (See Fig. 6-60)

1шт.

2

90-6682T1

CLAMP

RETAINER - drive shaft

6шт.

3

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

- special

12шт.

4

REF

INSTRUCTION

DRIVE SHAFT - PTO, rear, front shaft to PTO transfer case (See Fig. 6-60)

1шт.

5

19-61

BOLT,5/8" - 11 x 2 1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

2шт.

6

25711R1

WASHER

- flat, 21/32 x 1-5/16 x 5/32 inch

2шт.

7

90-6675T1

SHIELD

- driveshaft

1шт.

8

19-5960

LOCK NUT

- hex, lock, 5/8 inch NC

2шт.

9

90-6702T1

SHIELD

- drive shaft

1шт.

10

SM8124250

BOLT

BOLT - hex, 10 mm - 1.25 x 50 mm

2шт.

16

2-7126T1

DECAL

- PTO drive shaft

2шт.
