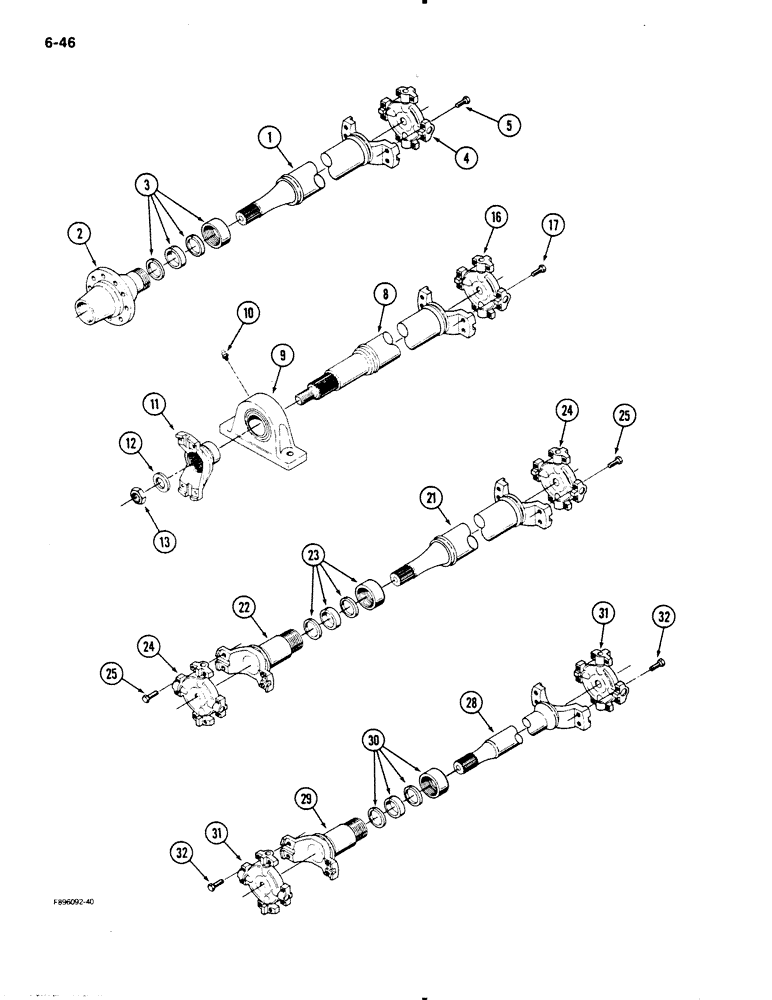

Запчасти Case IH 9130 (6-46) - DRIVE SHAFT ASSEMBLIES (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
90-6458T91
DRIVE SHAFT
SHAFT ASSEMBLY - drive, input, engine to transmission, Includes: Ref. 1 - 5
1шт.
1
NSS
NOT SOLD SEPARAT
SHAFT - slip yoke
1шт.
2
NSS
NOT SOLD SEPARAT
SHAFT - flanged
1шт.
3
90-6541T1
SEAL
ASSEMBLY - shaft retainer
1шт.
4
90-1907T3
DIFF. SPIDER
SPIDER ASSEMBLY - shaft, 6C
1шт.
5
25705R1
BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 8
- hex, 3/8 NF x 1-3/4 inch
4шт.
90-6998T91
DRIVE SHAFT
SHAFT ASSEMBLY - drive, intermediate, shaft to rear axle, Includes: Ref. 8 - 17
1шт.
8
NSS
NOT SOLD SEPARAT
SHAFT - tube
1шт.
9
90-6537T1
BEARING CARRIER,50.8mm ID
- pillow block
1шт.
10
31-93
FITTING
- grease, 1/8 inch PT
1шт.
11
L123714
FLANGE
YOKE - shaft
1шт.
12
19-113
WASHER,1"
- flat, 1 inch
1шт.
13
90-6222T1
LOCK NUT
- lock
1шт.
16
90-1907T3
DIFF. SPIDER
SPIDER ASSEMBLY - shaft, 6C, Includes: Ref. 17
1шт.
17
25705R1
BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 8
- hex, 3/8 NF x 1-3/4 inch
4шт.
90-7001T91
DRIVE SHAFT
SHAFT ASSEMBLY - drive, intermediate, transmission to to rear axle shaft (REPLACED 90-7001T91), Includes: Ref. 21 - 25
1шт.
21
NSS
NOT SOLD SEPARAT
SHAFT - slip yoke
1шт.
22
NSS
NOT SOLD SEPARAT
SHAFT - tube
1шт.
23
2-3829T1
SEAL RETAINER
ASSEMBLY - shaft retainer
1шт.
24
90-1907T3
DIFF. SPIDER
SPIDER ASSEMBLY - shaft, Includes: Ref. 25
2шт.
25
25705R1
BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 8
- hex, 3/8 NF x 1-3/4 inch
4шт.
90-6999T91
DRIVE SHAFT
SHAFT ASSEMBLY - drive, front axle (Without steerable axle), Includes: Ref. 28 - 32
1шт.
90-7000T91
DRIVE SHAFT
SHAFT ASSEMBLY - drive, front axle (With steerable front axle), Includes: Ref. 28 - 32
1шт.
28
NSS
NOT SOLD SEPARAT
SHAFT - slip yoke
1шт.
29
NSS
NOT SOLD SEPARAT
SHAFT - tube
1шт.
30
2-3829T1
SEAL RETAINER
ASSEMBLY - shaft retainer
1шт.
31
90-1907T3
DIFF. SPIDER
SPIDER ASSEMBLY - shaft, 6C, Includes: Ref. 32
2шт.
32
25705R1
BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 8
- hex, 3/8 NF x 1-3/4 inch
4шт.
Выбрано товаров: 28
