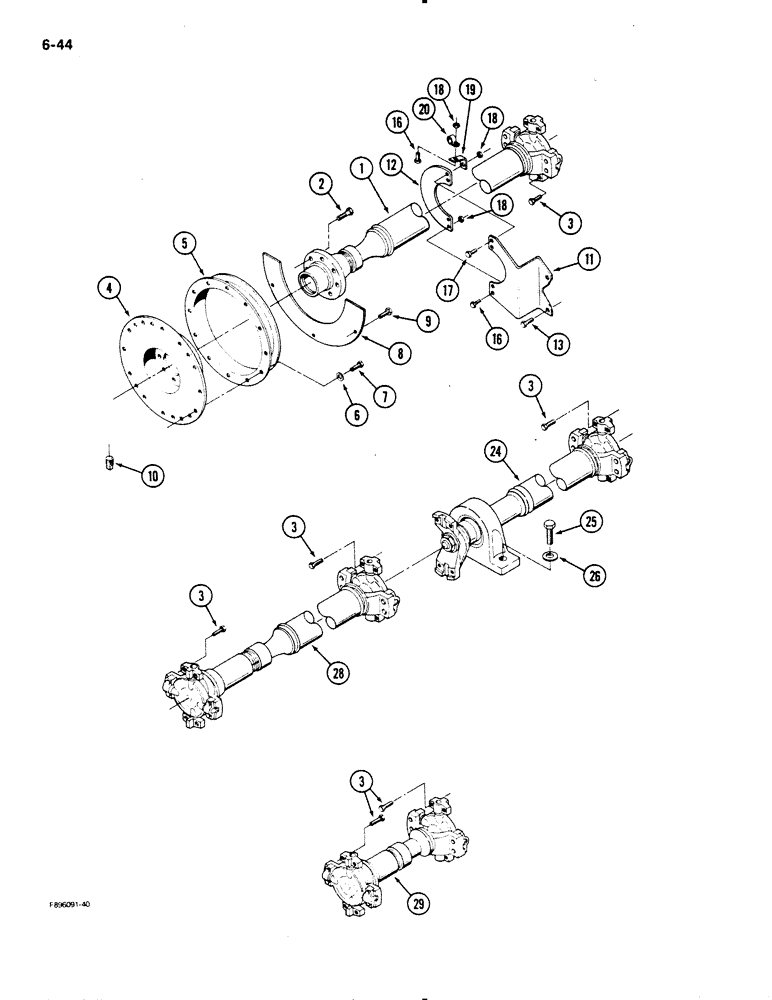

Запчасти Case IH 9130 (6-44) - DRIVE SHAFT MOUNTING (06) - POWER TRAIN

1

REF

INSTRUCTION

DRIVE SHAFT - input, 6C, engine to transmission (See Fig. 6-46)

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

3

25705R1

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch

24шт.

4

90-1272T1

DAMPER

- vibration

1шт.

5

90-6190T1

LARGE PLATE

SLINGER - flywheel

1шт.

6

19-5941

WASHER,13/32" x 3/4" x .220", HDN

- flat, hardened, 3/8 x 3/4 x 7/32 inch

8шт.

7

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

8шт.

8

90-6188T1

COVER

- flywheel housing

2шт.

9

40-1091

BOLT,Hex, M10 x 1.5 x 20mm, Gr 8.8

BOLT - hex, 10 x 20 mm

6шт.

10

31-34

PLUG

- pipe, drain, 3/4 inch PT

1шт.

11

90-6657T2

SUPPORT

BRACKET - drive shaft guard

1шт.

12

50-2852T1

LARGE PLATE

PLATE - drive shaft shield

1шт.

13

19-43

BOLT,1/2" - 13 x 1", Gr 5

- hex, 1/2 NC x 1 inch

2шт.

16

9418918

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- hex, 5/16 NC x 1 inch

4шт.

17

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

18

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

5шт.

19

90-6820T1

BRACKET

- mounting, clutch cable clamp

1шт.

20

31-2488

CLAMP

- cable, clutch

1шт.

24

REF

INSTRUCTION

DRIVE SHAFT - rear axle, with hanger bearing (See Fig. 6-46)

1шт.

25

19-60

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

2шт.

26

25711R1

WASHER

- flat, 21/32 x 1-5/16 x 5/32 inch

2шт.

28

REF

INSTRUCTION

DRIVE SHAFT - rear axle (See Fig. 6-46)

1шт.

29

REF

INSTRUCTION

DRIVE SHAFT - front axle (See Fig. 6-46)

1шт.
