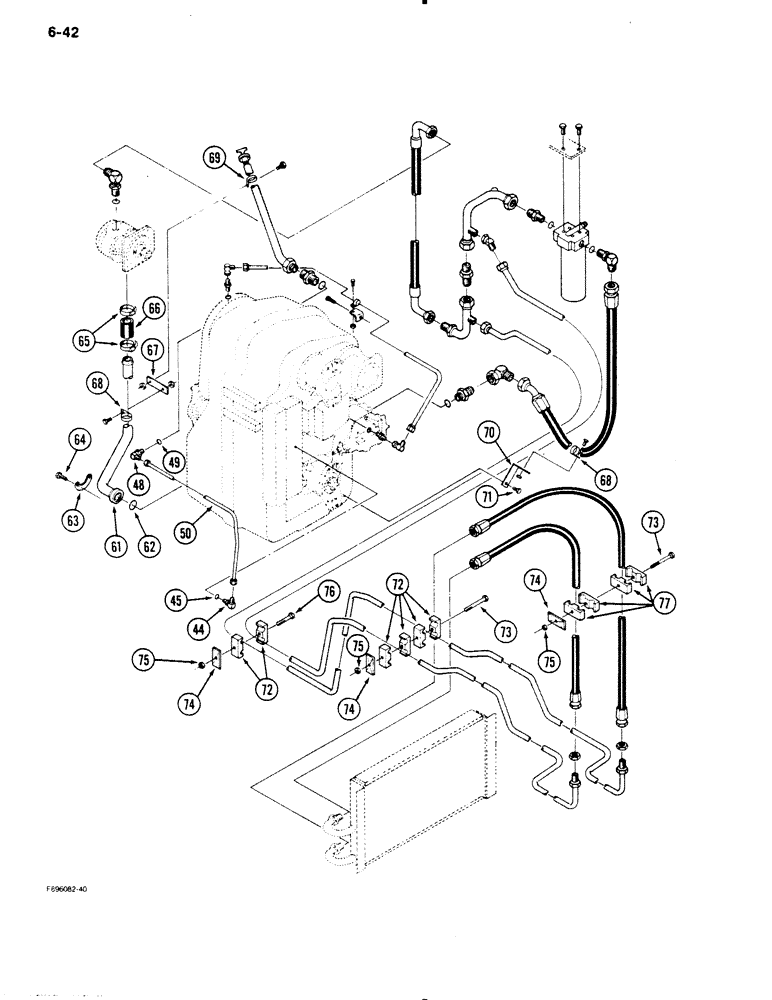

Запчасти Case IH 9130 (6-42) - TRANSMISSION LUBRICATION, [CONT] (06) - POWER TRAIN

44

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adj, 3/4-16 flare x 9/16-18 inch O-ring, Includes: Ref. 45

1шт.

45

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

48

31-367

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

- 90 degree, adjustable, 7/8 x 3/4 inch thread, Includes: Ref. 49

1шт.

49

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

50

90-6691T1

TUBE,.5" OD

- range selector valve to PTO control valve (With PTO system only)

1шт.

61

90-7064T1

TUBE,1.5" OD

- transmission to pump (Without PTO system)

1шт.

61

90-7063T1

TUBE,1.5" OD

- transmission to pump (With PTO system)

1шт.

62

31-1925

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

- 1-1/2 x 9/64 inch

1шт.

63

31-1910

COUPLING FLANGE

FLANGE - split, clamp halves

2шт.

64

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

65

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 x 2-5/8 inch

2шт.

66

1-4571

HOSE

- suction, 1-1/2 x 4 inch (Order hose 1-4482T1 and, Serial Range: cut-length)

1шт.

67

90-6588T1

SUPPORT

BRACKET - support, clamp mounting

1шт.

68

31-1349

MOUNTING CLIP

CLAMP - tube

2шт.

69

31-1348

CLAMP

- tube

1шт.

70

90-7012T1

BRACKET

- support, clamp mounting

1шт.

71

19-674

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

- hex, 5/8 NC x 3/4 inch

1шт.

72

50-2551T1

CLAMP

- hose, split, halves

10шт.

73

19-333

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- hex, 5/16 NC x 4 inch

2шт.

74

50-2533T1

PLATE

COVER - clamp

4шт.

75

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

76

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

1шт.

77

50-2534T1

CLAMP

- split, halves

4шт.
