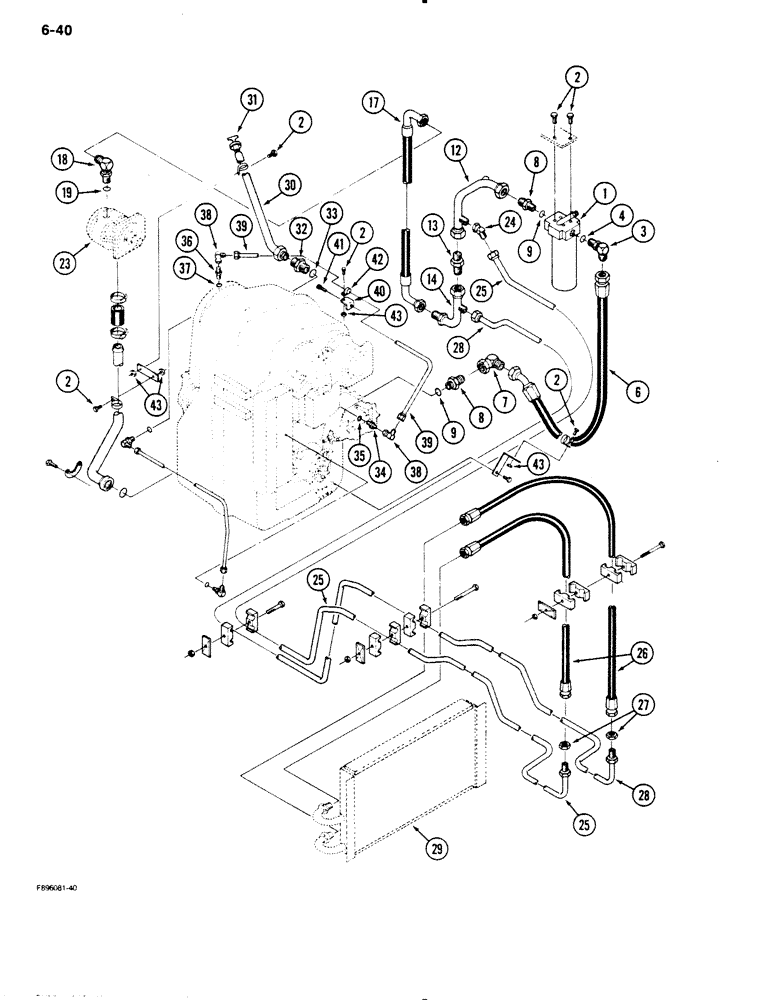

Запчасти Case IH 9130 (6-40) - TRANSMISSION LUBRICATION (06) - POWER TRAIN

1

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic (See Fig. 8-20)

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

3

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-5/16 x 1-5/8 inch thread, Includes: Ref. 4

1шт.

4

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

6

31-2734

HOSE

- filter to transmission, 46-1/2 inch

1шт.

7

31-2708

ADAPTER,90 Degree, 37 Degree Fl, 1 5/8"-12 Male x 1 5/8"-12 Fem

ELBOW - 90 degree, adjustable, 1-5/16 x 1-5/8 inch thread

1шт.

8

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/16 x 1-5/8 inch thread, Includes: Ref. 9

2шт.

9

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

2шт.

12

90-6591T1

TUBE,1.25" OD

- filter to check valve

1шт.

13

90-6578T1

VALVE POPPET

VALVE - check

1шт.

14

50-2900T1

TUBE

- check, Serial Range: valve-hose

1шт.

17

31-2673

HOSE ASSY.

HOSE - tube to transmission pump

1шт.

18

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, adjustable, 1-5/16-12 inch thread, Incl. Ref. 19

1шт.

19

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

23

REF

INSTRUCTION

PUMP ASSEMBLY - transmission, lubrication (See Fig. 6-28)

1шт.

24

31-1545

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 45 degree, adjustable, 1-1/16 - 12 inch thread

1шт.

25

50-2915T1

TUBE

-, Serial Range: tube-hose

1шт.

26

31-2547

HOSE ASSY.

HOSE - tube to oil cooler (58" Long)

2шт.

27

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, bulkhead, 1-1/16 inch NF

2шт.

28

50-2916T1

TUBE

-, Serial Range: hose-tube

1шт.

29

REF

INSTRUCTION

COOLER - oil (See Fig. 8-6)

1шт.

30

90-7023T1

TUBE,1.25" OD x 24.15" L

- dipstick (9110)

1шт.

30

90-6545T1

TUBE,1.25" OD

- dipstick (9130)

1шт.

31

90-6546T1

DIPSTICK

- oil check

1шт.

32

31-401

HYD CONNECTOR,1 5/8"-20, 37 Degree x 1 5/8"-12, O-Ring

CONNECTOR ASSEMBLY - straight, 1-5/8 inch thread, Includes: Ref. 33

1шт.

33

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-1/2 x 1/8 inch

1шт.

34

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 3/4 inch thread, Includes: Ref. 35

1шт.

35

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

36

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 37 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

37

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

38

31-619

ELBOW

- 90 degree, adjustable, 3/4 inch thread

1шт.

39

90-6889T1

TUBE,.5" OD

- regulator valve to PTO control valve (With PTO system only)

1шт.

40

90-6894T1

SUPPORT

BRACKET - mounting clamp (With PTO system only)

1шт.

41

SM8121240

BOLT

BOLT - hex, 12 mm - 1.75 x 40 mm

1шт.

42

31-1775

CLAMP

- tube

1шт.

43

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
