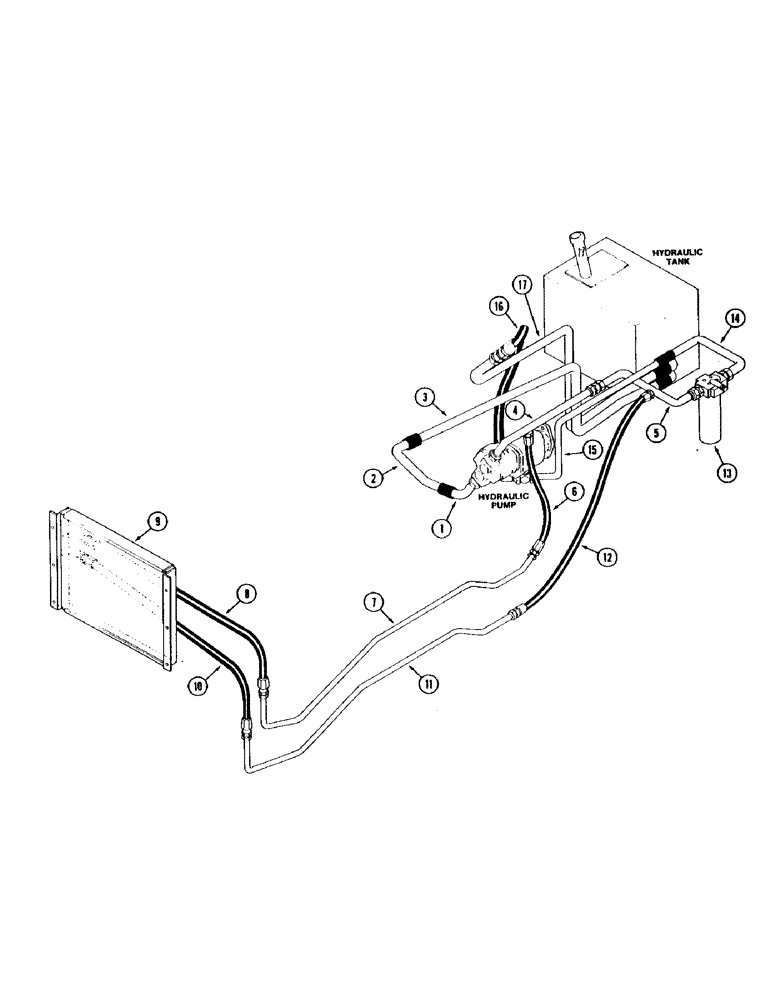

Запчасти Case IH 9130 (1-10) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Gear Pump Inlet Elbow, Fig. 8-4

1шт.

2

Gear Pump Inlet Tube, Fig. 8-4

1шт.

3

Gear Pump Supply Tube, Fig. 8-4

1шт.

4

Gear Pump Outlet Tube, Fig. 8-4

1шт.

5

Filter Inlet Tube, Fig. 8-4

1шт.

6

Oil Cooler Supply Hose, Fig. 8-6

1шт.

7

Oil Cooler Supply Tube, Fig. 8-6

1шт.

8

Oil Cooler Supply Hose, Fig. 8-6

1шт.

9

Oil Cooler, Fig. 8-6

1шт.

10

Oil Cooler Return Hose, Fig. 8-6

1шт.

11

Oil Cooler Return Tube, Fig. 8-6

1шт.

12

Oil Cooler Return Hose, Fig. 8-6

1шт.

13

Oil Filter, Fig. 8-4, 8-20

1шт.

14

Oil Filter Outlet Tube, Fig. 8-4

1шт.

15

Hydraulic Pump Inlet Tube, Fig. 8-2

1шт.

16

Hydraulic Pump Return Hose, Fig. 8-2

1шт.

17

Hydraulic Pump Return Hose, Fig. 8-2

1шт.
