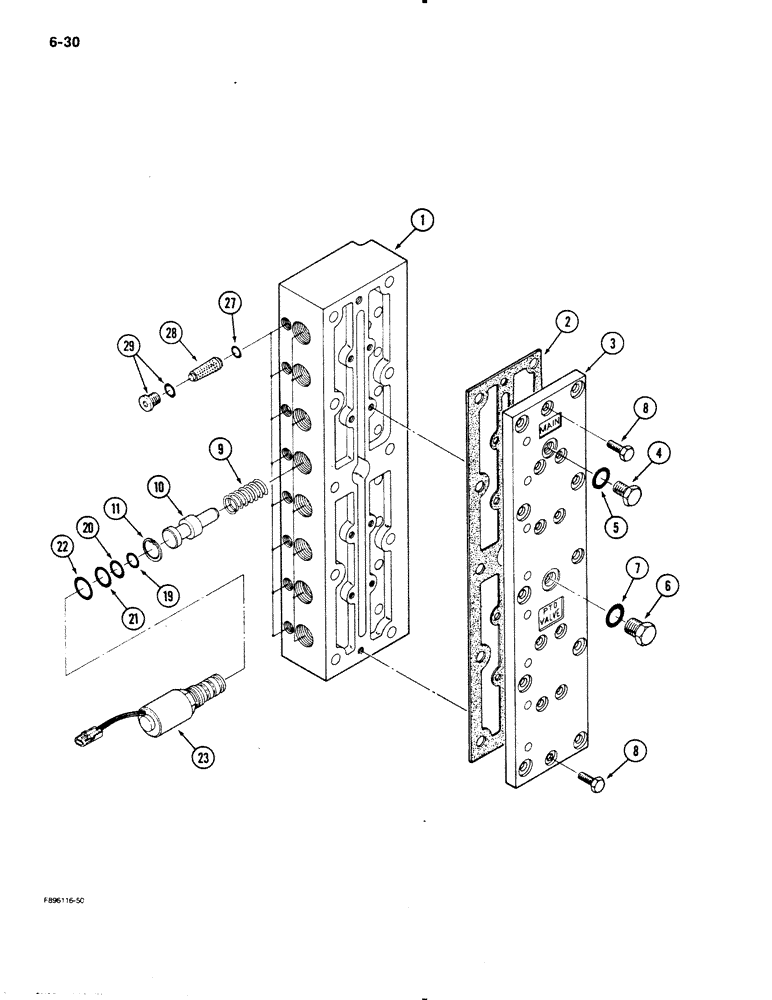

Запчасти Case IH 9130 (6-30) - TRANSMISSION, RANGE SELECTOR VALVE, WITH STEEL ENCASED SOLENOID COILS (06) - POWER TRAIN

90-7014T91

TRANSMISSION

TRANSMISSION ASSEMBLY (Continued), Includes: Ref. 1 - 29

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

33-1525T91

VALVE

VALVE ASSEMBLY - range selector, Includes: Ref. 1 - 29

1шт.

1

33-1529T1

VALVE BODY

BODY - valve, range selector

1шт.

2

33-1530T1

GASKET

GASKET - valve cover

1шт.

3

33-1531T1

COVER

COVER - body

1шт.

4

S1030S00F

PLUG

PLUG - oil ports, Includes: Ref. 5

1шт.

5

S1040S00F

O-RING

O-RING - plug

1шт.

6

S1390S00F

PLUG

PLUG - oil port, Includes: Ref. 7

1шт.

7

S1320S00F

O-RING

O-RING - plug

1шт.

8

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

BOLT - hex, 5/18 NC x 3/4 inch

10шт.

9

33-1532T1

SPRING

SPRING - spool

8шт.

10

33-1533T1

SPOOL

SPOOL - valve selector

8шт.

11

33-1534T1

RING, SNAP

RING SNAP RING - snap

8шт.

33-1535T1

SOLENOID

VALVE ASSEMBLY - solenoid, Includes: Ref. 19 - 23

8шт.

371737A1R

REMAN-SOLENOID

Reman for New PN 33-1535T1

8шт.

371737A1C

CORE-SOLENOID

Return Part Number

8шт.

33-1536T1

SEAL PACKAGE

KIT - o-ring, solenoid valve, Includes: Ref. 19 - 22

8шт.

19

NSS

NOT SOLD SEPARAT

O-RING - solenoid

8шт.

20

NSS

NOT SOLD SEPARAT

O-RING - solenoid

8шт.

21

NSS

NOT SOLD SEPARAT

O-RING - solenoid

8шт.

22

NSS

NOT SOLD SEPARAT

O-RING - solenoid

8шт.

23

NSS

NOT SOLD SEPARAT

VALVE - solenoid

8шт.

27

33-1537T1

O-RING

O-RING - seal, filter

8шт.

28

33-1538T1

FILTER

SCREEN - filter, conical

8шт.

29

33-1539T1

PLUG

PLUG - o-ring boss

8шт.
