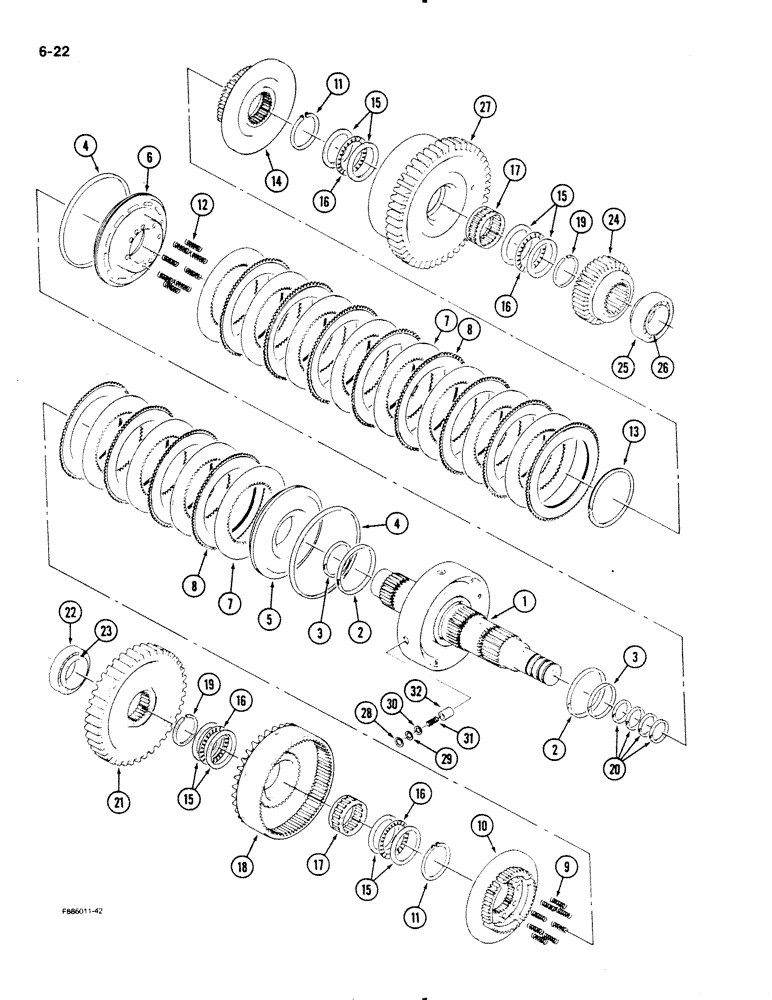

Запчасти Case IH 9130 (6-22) - TRANSMISSION, 9 INCH CLUTCH PACK (06) - POWER TRAIN

90-7014T91

TRANSMISSION

TRANSMISSION ASSEMBLY (Continued), Includes: Ref. 1 - 32

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

S5000S00H

CLUTCH

CLUTCH PACK ASSEMBLY - 9 inch, Includes: Ref. 1 - 32

1шт.

1

S5900S00F

SHAFT ASSY.

SHAFT ASSEMBLY - drum

1шт.

2

S5520S00F

RING

RING - piston

2шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

3

S5510S00F

RING

RING - piston

2шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

4

S4430S00F

RING

RING - sealing

2шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

5

S5760S00F

PISTON

PISTON - clutch

1шт.

6

S5180S00F

PISTON

PISTON - clutch

1шт.

7

S5120S00F

CLUTCH DISC

CLUTCH DISK PLATE - steel, flat, 2.6 mm thick

1шт.

Steel plates, Ref. 7; a total set of 8 pieces must be used.

1шт.

7

S5130S00F

CLUTCH DISC

CLUTCH DISK PLATE - steel, flat, 2.4 mm thick

1шт.

Steel plates, Ref. 7; a total set of 8 pieces must be used.

1шт.

8

33-1520T1

NOTCHED DISK

PLATE - faced

8шт.

9

S5550S00F

SPRING

SPRING - return, piston

8шт.

10

S5850S00H

HUB

HUB - clutch

1шт.

11

S5100S00F

RING, SNAP

RING SNAP RING - snap

2шт.

12

S5540S00F

SPRING

SPRING - return, piston

8шт.

13

S5490S00F

RING

RING - retaining

1шт.

14

S5840S00H

HUB

HUB - clutch

1шт.

15

S5230S00F

BEARING WASHER

WASHER - thrust, bearing

8шт.

16

S5050S00F

THRUST BEARING

BEARING - thrust

4шт.

17

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

BEARING - needle

2шт.

18

S5080S00F

PINION

GEAR - clutch (37 tooth)

1шт.

19

S5040S00F

RING

RING - retaining

2шт.

20

S3070S00F

RING

RING - sealing

4шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

21

S5060S00F

PINION

GEAR - input (43 Tooth)

1шт.

22

ST967

BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"

CUP - bearing

1шт.

23

ST2016A

BEARING

CONE ASSEMBLY - bearing

1шт.

24

S5270S00F

PINION

GEAR - drive (21 Tooth)

1шт.

25

90-6579T1

BEARING CUP

CUP - bearing

1шт.

26

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

CONE ASSEMBLY - bearing

1шт.

27

S5280S00F

GEAR

GEAR - clutch (46 Tooth)

1шт.

28

SM9222160

RING, SNAP

RING SNAP RING - snap

2шт.

29

S3220S00F

SHIM

SHIM

1шт.

30

S3230S00F

SHIM

SHIM

1шт.

31

S3210S00F

SPRING

SPRING - valve

2шт.

32

S3200S00F

DRAIN VALVE

VALVE - drain

2шт.
