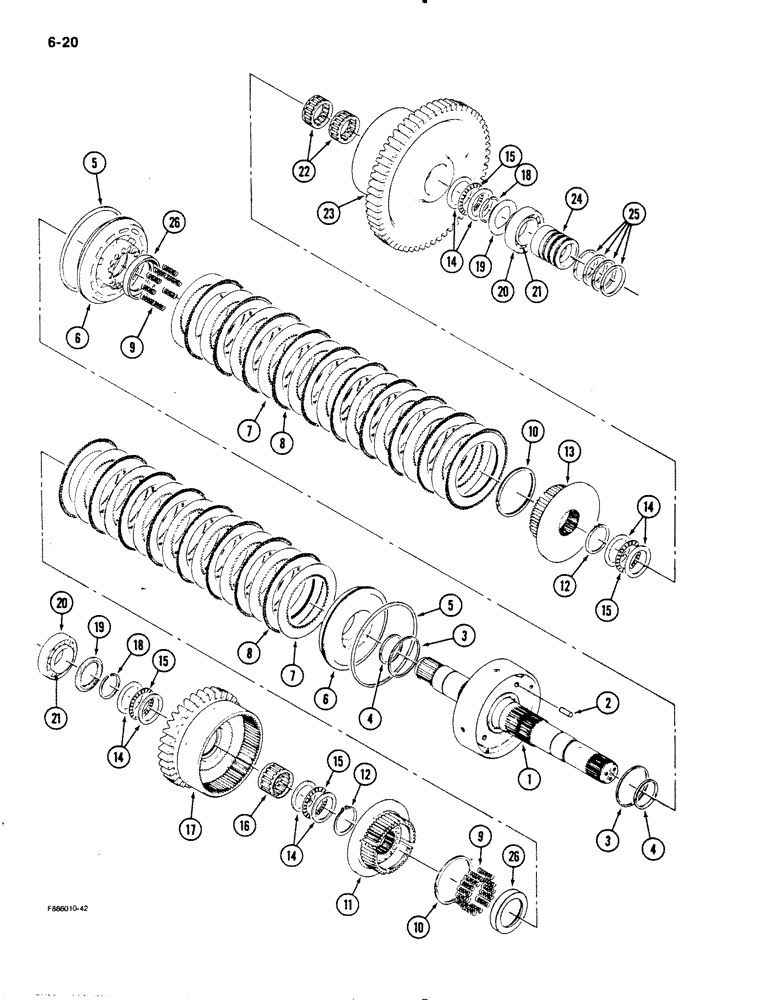

Запчасти Case IH 9130 (6-20) - TRANSMISSION, 8 INCH CLUTCH PACK (06) - POWER TRAIN

90-7014T91

TRANSMISSION

TRANSMISSION ASSEMBLY (Continued), Includes: Ref. 1 - 26

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

S4000S00H

CLUTCH ASSEMBLY

CLUTCH PACK ASSEMBLY - 8 inch, Includes: Ref. 1 - 26

1шт.

1

S4900S02F

SHAFT ASSY.

SHAFT ASSEMBLY - drum, Includes: Ref. 2

1шт.

2

S4680S02F

SPECIAL NUT

PIN - guide, 11 mm diameter

4шт.

3

S4420S00F

RING

piston

2шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

4

S4410S00F

RING

piston

2шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

5

S4430S00F

RING

sealing

2шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

6

S4180S02F

PISTON

PISTON - clutch

2шт.

7

S4070S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK PLATE steel, flat, 2.4 mm thick

1шт.

Steel plates, Ref. 7; a total of 11 pieces must be used.

1шт.

7

S4110S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK PLATE steel, flat, 2.1 mm thick

1шт.

Steel plates, Ref. 7; a total of 11 pieces must be used.

1шт.

8

33-1519T1

NOTCHED DISK

PLATE - faced

11шт.

9

S4440S00F

SPRING

SPRING - return, piston

22шт.

10

S4390S00F

RING, SNAP

RING SNAP RING - retaining

2шт.

11

S4100S01H

HUB

HUB - clutch

1шт.

12

S2100S00F

RING, SNAP

RING SNAP RING - snap

2шт.

13

S4380S01H

HUB

HUB - clutch

1шт.

14

S2200S00F

BEARING WASHER

WASHER - thrust, bearing

8шт.

15

S2230S00F

BEARING

BEARING - thrust

4шт.

16

S2210S00F

BEARING, ROLLER

BEARING - roller

1шт.

17

S4210S00F

PINION

GEAR - output (38 Tooth)

1шт.

18

S2240S00F

RING, SNAP

RING SNAP RING - retaining

2шт.

19

S4040S00F

SPACER

SPACER - bearing

2шт.

20

ST967

BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"

CUP - bearing

2шт.

21

ST2016A

BEARING

CONE ASSEMBLY - bearing

2шт.

22

S2030S00F

BEARING, ROLLER

BEARING - roller

2шт.

23

S4170S00F

PINION

GEAR - output (59 Tooth)

1шт.

24

S4160S00F

SLEEVE

CARRIER - piston ring

1шт.

25

S4150S00F

RING

sealing

4шт.

Part of Transmission Gasket Kit P/N S1670S00F

1шт.

26

S4530S01F

LARGE PLATE

PLATE, LARGE PLATE - retaining, spring

2шт.
