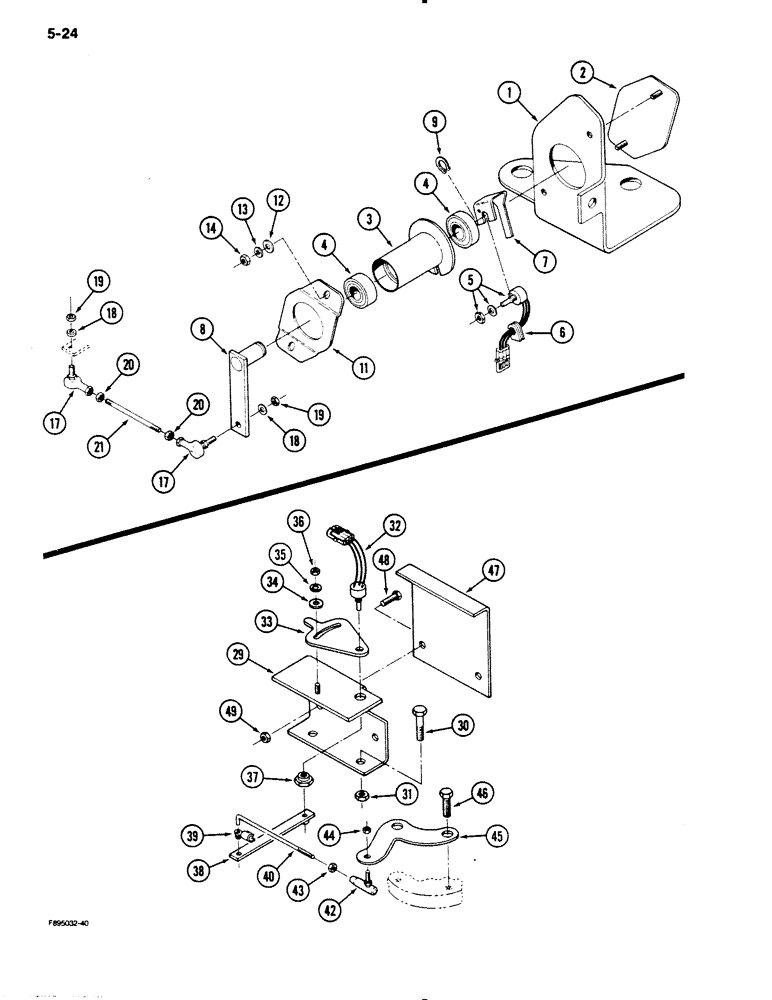

Запчасти Case IH 9130 (5-24) - STEERABLE AXLE CONTROLS, POTENTIOMETER MOUNTING AND LINKAGE (05) - STEERING

60-6311T91

HOUSING ASSY.

HOUSING ASSEMBLY, Potentiometer, Includes: Ref. 1 - 22

1шт.

1

60-6316T1

LARGE PLATE

PLATE, Mounting, Potentiometer Housing

1шт.

2

60-6185T1

LARGE PLATE

PLATE - mounting, housing

1шт.

3

60-6167T2

BEARING HOUSING,1.654" ID x 3.25" OD x 2.928"

Housing, Potentiometer

1шт.

4

60-6177T1

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

BEARING - ball

2шт.

5

60-6190T1

POTENTIOMETER

Electrical

1шт.

6

31-2475

GROMMET

- protective, wire

1шт.

7

60-6186T1

SUPPORT

Mount, Potentiometer

1шт.

8

60-6313T1

LEVER

Actuating, Potentiometer

1шт.

9

19-5860

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

11

60-6169T2

RETAINER

Housing, Potentiometer, Replaces 60-6192T1

1шт.

12

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, hardened

2шт.

13

19-890

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, 1/4 inch

2шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

17

A75447

BALL JOINT

JOINT - ball

2шт.

18

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

2шт.

19

9411893

LOCK NUT,#10-32, GB

NUT - lock, No. 10 NF

2шт.

20

19-308

NUT,#10 - 32

- hex, No. 10 NF

2шт.

21

60-6312T1

STEM

ROD - actuating

1шт.

22

1-1055

SEALANT

ANT - RTV (Not Shown)

1шт.

29

60-6161T1

BRACKET

Mounting, Potentiometer

1шт.

30

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

31

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

2шт.

32

20-2322T1

POTENTIOMETER

Electrical

1шт.

33

60-6118T1

BRACKET

Potentiometer Adjusting

1шт.

34

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, hardened

1шт.

35

19-890

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, 1/4 inch

1шт.

36

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

37

60-6119T1

NUT

Potentiometer

1шт.

38

70-4678T1

LEVER

Potentiometer, Actuating

1шт.

39

60-2404T1

RETAINER

- actuating rod

1шт.

40

70-4642T1

ROD

Actuating, Potentiometer Lever

1шт.

42

6-1431

BALL JOINT

JOINT - ball

1шт.

43

19-308

NUT,#10 - 32

- hex, No. 10 NF

1шт.

44

9411893

LOCK NUT,#10-32, GB

NUT - lock, No. 10 NF

1шт.

45

70-4680T1

BRACKET

- mounting, ball joint

1шт.

46

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

47

70-4997T1

LARGE PLATE

PLATE, Cover, Potentiometer

1шт.

48

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

49

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
