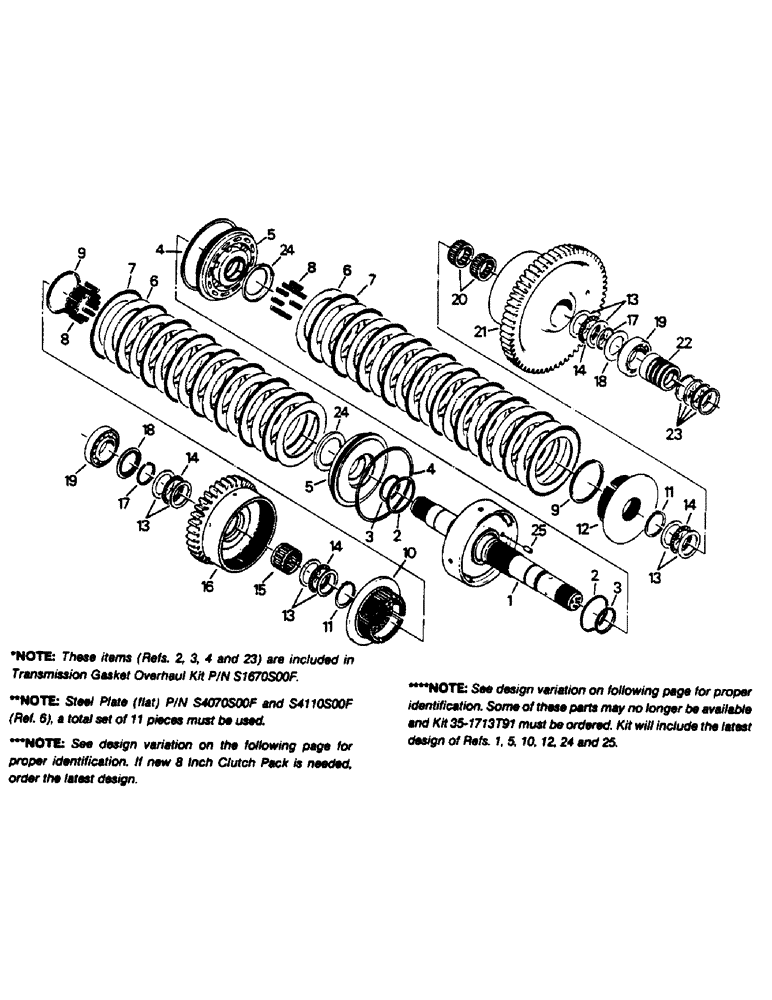

Запчасти Case IH 9130 (04-63) - 8 INCH CLUTCH PACK ASSEMBLY (04) - Drive Train

S4000S00H

CLUTCH ASSEMBLY

(1-23) CLUTCH PACK ASSEMBLY - 8 inch

1шт.

See design variation on the following page for proper identification. If new 8 inch clutch pack is needed, order the latest design.

1шт.

S4000S02H

CLUTCH ASSEMBLY

CLUTCH PACK ASSEMBLY - 8 inch (S4000S00H)

1шт.

See design variation on the following page for proper identification. If new 8 inch clutch pack is needed, order the latest design.

1шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

1

S4900S00F

DRUM SHAFT

SHAFT ASSEMBLY - drum

1шт.

See design variation on following page for proper identification. Some of these parts may no longer be available and kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

S4900S02F

SHAFT ASSY.

SHAFT ASSEMBLY - drum

1шт.

See design variation on following page for proper identification. Some of these parts may no longer be available and kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

2

S4420S00F

RING

- piston

2шт.

These items (Refs. 2, 3, 4 and 23) are included in transmission gasket overhaul kit P/N S1670S00F

1шт.

3

S4410S00F

RING

- piston

2шт.

These items (Refs. 2, 3, 4 and 23) are included in transmission gasket overhaul kit P/N S1670S00F

1шт.

4

S4430S00F

RING

- sealing

2шт.

These items (Refs. 2, 3, 4 and 23) are included in transmission gasket overhaul kit P/N S1670S00F

1шт.

5

S4180S00F

PISTON

- clutch

2шт.

See design variation on following page for proper identification. Some of these parts may no longer be available and kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

S4180S02F

PISTON

- clutch

1шт.

See design variation on following page for proper identification. Some of these parts may no longer be available and kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

6

S4070S00F

CLUTCH DISC,2.4mm Thk

PLATE - steel (Flat 2.4 MM)

1шт.

Steel plate (flat) P/N S4070S00F and S4110S00F (Ref.) 6, a total set of 11 pieces must be used.

1шт.

S4110S00F

CLUTCH DISC,2.1mm Thk

PLATE - steel (Flat 2.1 MM)

1шт.

Steel plate (flat) P/N S4070S00F and S4110S00F (Ref.) 6, a total set of 11 pieces must be used.

1шт.

7

S4080S00F

LARGE PLATE

PLATE - faced

11шт.

8

S4440S00F

SPRING

- return

22шт.

9

S4390S00F

RING, SNAP

RING - retaining

2шт.

10

S4850S00H

HUB

- clutch

1шт.

See design variation on following page for proper identification. Some of these parts may no longer be available and kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

S4100S01H

HUB

- clutch

1шт.

See design variation on following page for proper identification. Some of these parts may no longer be available and kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

11

S2100S00F

RING, SNAP

RING - snap

2шт.

12

S4840S00H

HUB ASSY.

HUB - clutch

1шт.

See design variation on following page for proper identification. Some of these parts may no longer be available and kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

S4380S01H

HUB

- clutch

1шт.

See design variation on following page for proper identification. Some of these parts may no longer be available and kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.

13

S2200S00F

BEARING WASHER

WASHER - bearing thrust

8шт.

14

S2230S00F

BEARING

- thrust

4шт.

15

S2210S00F

BEARING, ROLLER

BEARING - needle

1шт.

16

S4210S00F

PINION

GEAR - output (38T)

1шт.

17

S2240S00F

RING, SNAP

RING - retaining

2шт.

18

S4040S00F

SPACER

- bearing

2шт.

19

1-1584

BEARING CUP,4.4375" OD x 1.1875"

CUP - bearing

2шт.

90-1319T1

ROLLER BEARING,2.5" ID x 1.1875"

CONE - bearing

2шт.

20

S2030S00F

BEARING, ROLLER

BEARING - needle

2шт.

21

S4170S00F

PINION

GEAR - output (59T)

1шт.

22

S4160S00F

SLEEVE

CARRIER - piston ring

1шт.

23

S4150S00F

RING

- sealing

4шт.

24

S4530S01F

LARGE PLATE

PLATE - compression (Latest design only)

2шт.

25

S4680S02F

SPECIAL NUT

PIN - guide, 11 MM dia.

1шт.

See design variation on following page for proper identification. Some of these parts may no longer be available and kit 35-1713T91 must be ordered. Kit will include the latest design of Refs. 1, 5, 10, 12, 24 and 25.

1шт.

Old part must be used prior to serial number break. New part will work after serial number break only.

1шт.
