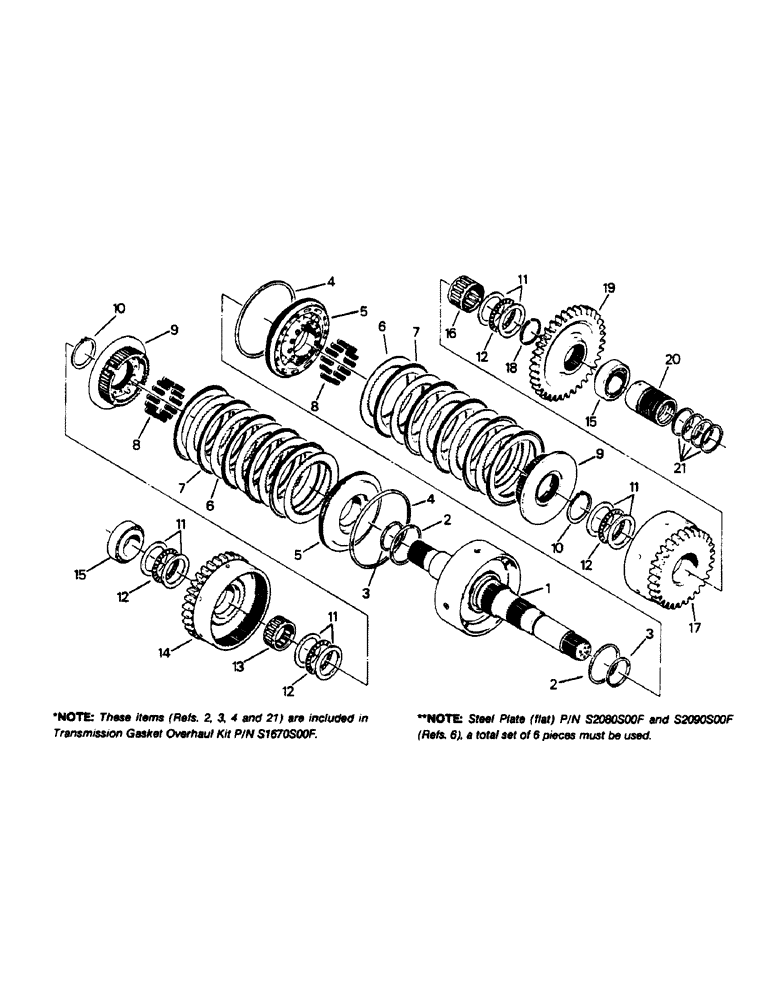

Запчасти Case IH 9130 (04-61) - 7 INCH CLUTCH PACK ASSEMBLY, INPUT (04) - Drive Train

S2000S00H

ASSEMBLY

CLUTCH PACK ASSEMBLY - 7 inch input, Includes: Ref. 1 - 21

1шт.

1

S2900S00F

SHAFT ASSY.

SHAFT ASSEMBLY - drum

1шт.

2

S2620S00F

RING

- piston

2шт.

3

S2610S00F

RING

- piston

2шт.

4

S2630S00F

RING

- sealing

2шт.

5

S2180S00F

PISTON

- clutch

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

PLATE - steel (Flat 2.4 MM)

1шт.

S2090S00F

CLUTCH DISC,2.1mm Thk

PLATE - steel (Flat 2.1 MM)

1шт.

7

S2050S00F

LARGE PLATE

PLATE - faced

6шт.

8

S2640S00F

SPRING

- return, piston

24шт.

9

S2850S00H

HUB

- clutch

2шт.

10

S2100S00F

RING, SNAP

RING - snap

2шт.

11

S2200S00F

BEARING WASHER

WASHER - bearing thrust

8шт.

12

S2230S00F

BEARING

- thrust

4шт.

13

S2030S00F

BEARING, ROLLER

BEARING - roller

1шт.

14

S2040S00F

PINION

GEAR - drive (32T)

1шт.

15

1-3296

BEARING CUP,3.7402" OD x 0.9252"

CUP - bearing

2шт.

1-3297

ROLLER BEARING,2.1654" ID x 1.1417"

CONE - bearing

2шт.

16

S2210S00F

BEARING, ROLLER

BEARING - needle

1шт.

17

S2280S00F

PINION

GEAR - drive (29T)

1шт.

18

S2240S00F

RING, SNAP

RING - retaining

1шт.

19

S2270S00F

PINION

GEAR - input (35T)

1шт.

20

S2410S00F

CARRIER FLANGE SEAL

CARRIER - piston ring

1шт.

21

S2250S00F

SEALING RING

RING - sealing

4шт.
