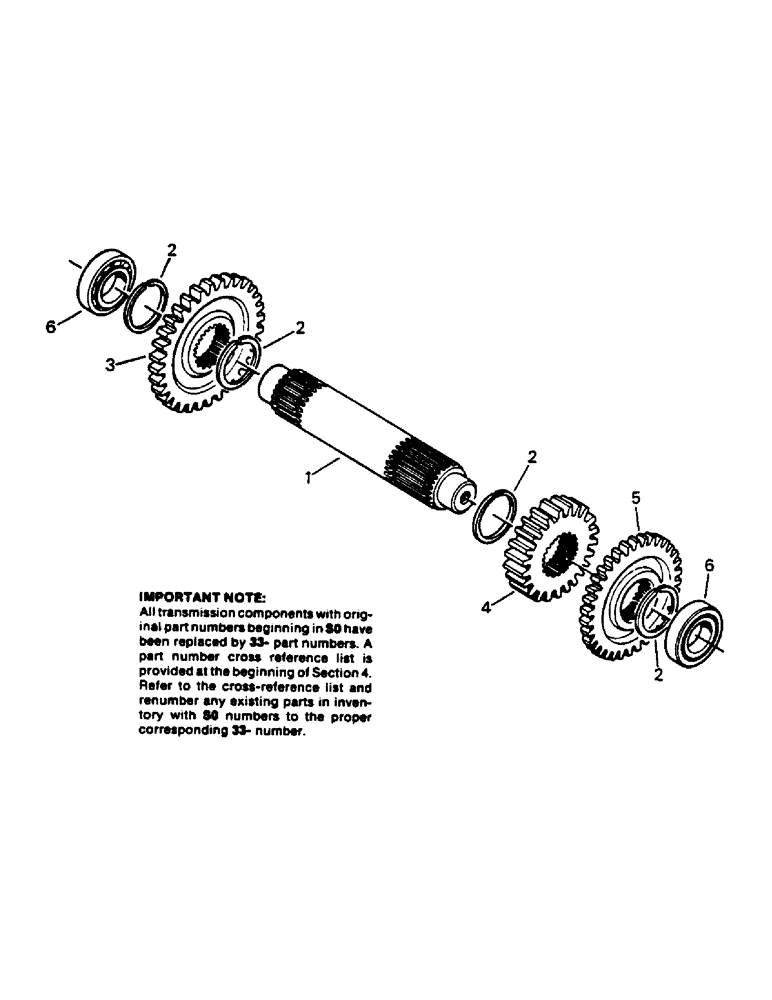

Запчасти Case IH 9130 (04-60) - COMPOUND SHAFT (04) - Drive Train

1

33-1436T1

SHAFT

- compound (See note)

1шт.

2

33-1416T1

RING, SNAP

RING - retaining (See note)

4шт.

3

33-1415T1

PINION

GEAR - compound shaft (32T) (See note)

1шт.

4

33-1434T1

PINION

GEAR - drive (22T) (See note)

1шт.

5

33-1435T1

PINION

GEAR - driven (29T) (See note)

1шт.

6

1-3297

ROLLER BEARING,2.1654" ID x 1.1417"

CONE - bearing

2шт.

1-3296

BEARING CUP,3.7402" OD x 0.9252"

CUP - bearing

2шт.
