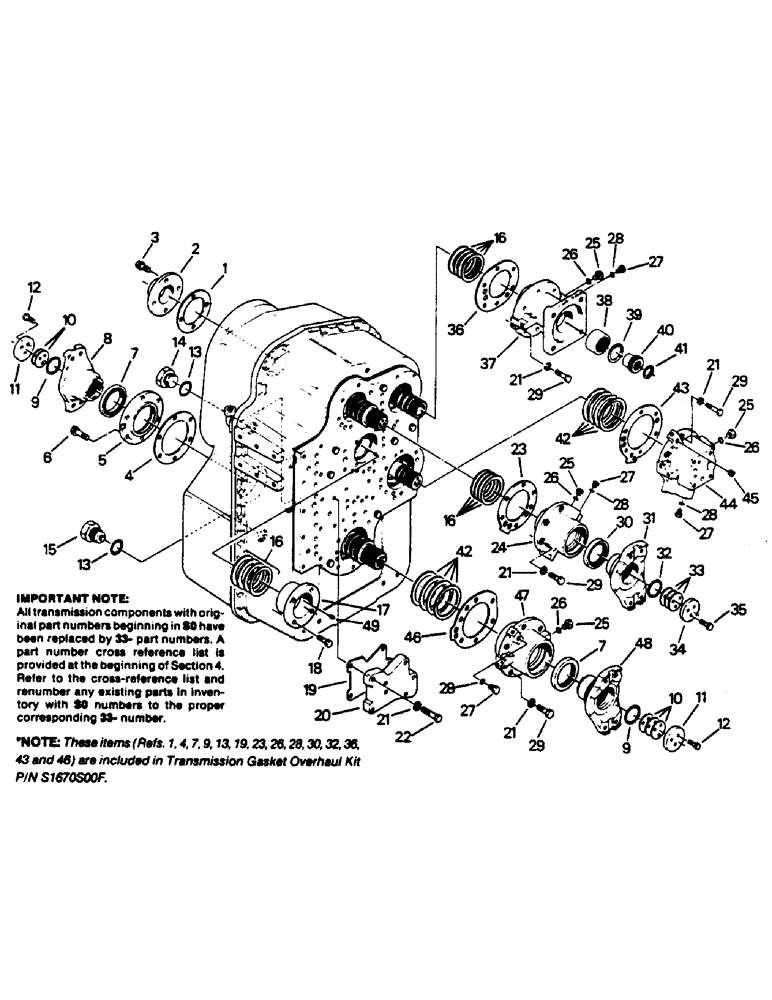

Запчасти Case IH 9130 (04-57) - TRANSMISSION ASSEMBLY (04) - Drive Train

1

33-1470T1

GASKET

- PTO shaft cover (See note)

1шт.

2

33-1442T1

COVER

- PTO shaft (Without PTO only) (See note)

1шт.

3

SM8124230

BOLT

CAPSCREW, M12 x 1.25 x 30 G-8.8

4шт.

4

33-1417T1

GASKET

- bearing retainer (See note)

1шт.

5

33-1418T1

RETAINER

bearing (See note)

1шт.

6

SM8124230

BOLT

CAPSCREW, M12 x 1.25 x 30 G-8.8

6шт.

7

33-1428T1

OIL SEAL

SEAL - output shaft (See note)

2шт.

8

33-1419T1

YOKE

- output, rear (See note)

1шт.

item 28 should be 33-1430t1 which is a 6c yoke, same as item #8 is 6c yoke, 33-1429t1 is on newer 9130.

1шт.

9

33-1422T1

O-RING

O-RING - yoke sealing (See note)

2шт.

10

33-1450T1

SHIM

- yoke (0.10 MM) (See note)

1шт.

33-1451T1

SHIM

- yoke (0.30 MM) (See note)

1шт.

11

33-1432T1

WASHER

- yoke retainer (See note)

1шт.

12

SM8134235

BOLT

CAPSCREW, M12 x 1.25 x 35 G-10.9

6шт.

13

S1080S00F

O-RING

- plug

4шт.

14

S1010S00F

PLUG, DRAIN

PLUG - hex head, Includes: Ref. 13

3шт.

15

S1090S00F

PLUG

- magnetic, Includes: Ref. 13

1шт.

16

33-1456T1

SHIM

- bearing (0.10 MM) (See note)

1шт.

33-1457T1

SHIM

- bearing (0.30 MM) (See note)

1шт.

33-1458T1

SHIM

- bearing (0.50 MM) (See note)

1шт.

33-1459T1

SHIM

- bearing (0.70 MM) (See note)

1шт.

33-1474T1

SHIM

- bearing (0.15 MM) (See note)

1шт.

17

33-1437T1

RETAINER

- bearing (See note)

1шт.

18

SM8124050

BOLT

CAPSCREW, M10 x 1.25 x 50 G-8.8

4шт.

19

S1610S00F

GASKET

- oil supply plate

1шт.

20

S1600S00F

LARGE PLATE

PLATE - oil supply

1шт.

21

SM8915140

PLATE, LOCKING

WASHER - lock, M10

31шт.

22

SM8124070

BOLT

CAPSCREW, M10 x 1.25 x 70 G-8.8

7шт.

23

33-1440T1

GASKET

- oil supply cover

1шт.

24

33-1441T1

HOUSING

COVER - oil supply

1шт.

25

S1390S00F

PLUG

- oil port, Includes: Ref. 26

8шт.

26

S1320S00F

O-RING

- plug

8шт.

27

S1030S00F

PLUG

- oil port, Includes: Ref. 28

5шт.

28

S1040S00F

O-RING

- plug (See note)

5шт.

item 28 should be 33-1430t1 which is a 6c yoke, same as item #8 is 6c yoke, 33-1429t1 is on newer 9130.

1шт.

29

SM8124060

BOLT

CAPSCREW, M10 x 1.25 x 60 MM G-8.8

24шт.

30

33-1412T1

OIL SEAL

SEAL - input yoke (See note)

1шт.

31

33-1409T1

LINKAGE YOKE

YOKE - input (See note)

1шт.

32

33-1414T1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

- yoke sealing (See note)

1шт.

33

33-1464T1

SHIM

- bearing (0.10 MM) (See note)

1шт.

33-1465T1

SHIM

- bearing (0.30 MM) (See note)

1шт.

33-1466T1

SHIM

- bearing (0.70 MM) (See note)

1шт.

34

33-1413T1

WASHER

- yoke retainer (See note)

1шт.

35

SM8134035

BOLT

CAPSCREW, M10 x 1.25 x 35 MM G-10.9

3шт.

36

33-1468T1

GASKET

- pump support (See note)

1шт.

37

33-1443T1

SUPPORT

- oil pump (See note)

1шт.

38

33-1444T1

COUPLING

- pump adapter (See note)

1шт.

39

33-1445T1

RING, SNAP

RING - snap (See note)

1шт.

40

33-1448T1

ADAPTER

- pump drive (See note)

1шт.

41

33-1446T1

RING, SNAP

RING - snap (See note)

1шт.

42

33-1460T1

SHIM

- bearing (0.10 MM) (See note)

1шт.

33-1461T1

SHIM

- bearing (0.30 MM) (See note)

1шт.

33-1462T1

SHIM

- bearing (0.50 MM) (See note)

1шт.

33-1463T1

SHIM

- bearing (0.70 MM) (See note)

1шт.

33-1475T1

SHIM

- bearing (0.15 MM) (See note)

1шт.

43

33-1433T1

GASKET

- clutch collector (See note)

1шт.

44

33-1438T1

CLUTCH

COLLECTOR - clutch (See note)

1шт.

45

STX99700F

PLUG

1шт.

46

33-1426T1

GASKET

- bearing retainer (See note)

1шт.

47

33-1427T1

BEARING CARRIER

RETAINER - bearing (See note)

1шт.

48

33-1430T1

FORK

- output, rear (See note)

1шт.

49

33-1439T1

PLUG

- orifice (See note)

2шт.
