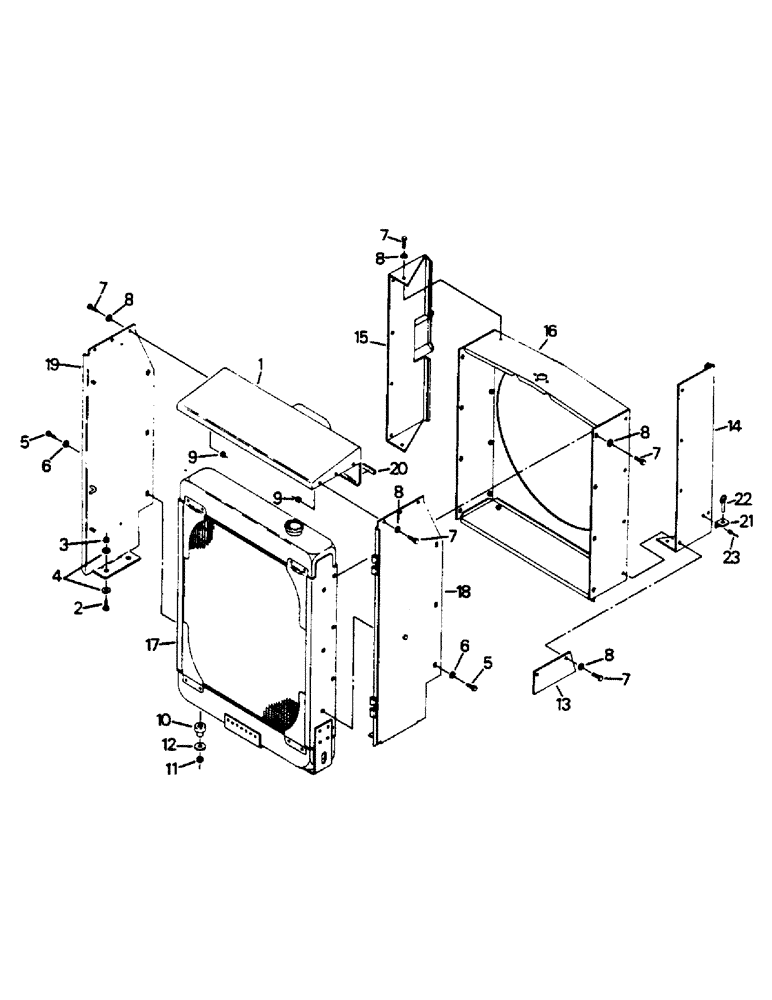

Запчасти Case IH 9130 (04-52) - RADIATOR AND MOUNTING (04) - Drive Train

1

90-6133T2

HOOD

- air intake

1шт.

2

19-33

BOLT,7/16" - 14 x 1 1/4", Gr 5

CAPSCREW, 7/16 UNC x 1-1/4 G-5

4шт.

3

231-4117

LOCK NUT,7/16"-14, GB

NUT - lock, 7/16 UNC G-B

4шт.

4

19-108

WASHER,7/16"

- flat, 7/16

8шт.

5

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

6шт.

6

19-107

WASHER

- flat, 3/8

6шт.

7

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 3/8 UNC x 3/4 G-5

25шт.

8

19-700

WASHER,5/16"

- flat, 5/16

25шт.

9

19-77

NUT,5/16"-18, G5

- 5/16 UNC G-B

6шт.

10

18-511

MOUNTING PARTS

MOUNT - isolator, rubber

2шт.

11

19-81

NUT,1/2"-13, G5

1/2 UNC G-B

2шт.

12

19-961

WASHER,17/32" x 1 1/2" x 1/8"

- flat, 1/2

2шт.

13

70-3183T1

GUARD

- foot

2шт.

14

90-6196T1

GUARD

- belt, left hand

1шт.

15

90-6613T1

GUARD

- belt, right hand

1шт.

16

90-6195T2

SHROUD

- fan

1шт.

17

RADIATOR (See page 4-53)

1шт.

18

90-6140T2

SHROUD

- radiator, left hand

1шт.

19

90-6141T2

SHROUD

- radiator, right hand

1шт.

20

70-5265T1

SEAL

- hood to radiator (70-4525T1)

2шт.

Old part can be used on all tractors, new part should be used when stock is depleted.

1шт.

21

90-6678T1

ANGLE

- pin mount

1шт.

22

19-5774

PIN

- hood safety

1шт.

23

19-6205

RIVET

- pop, 1/8 x 3/16

2шт.
