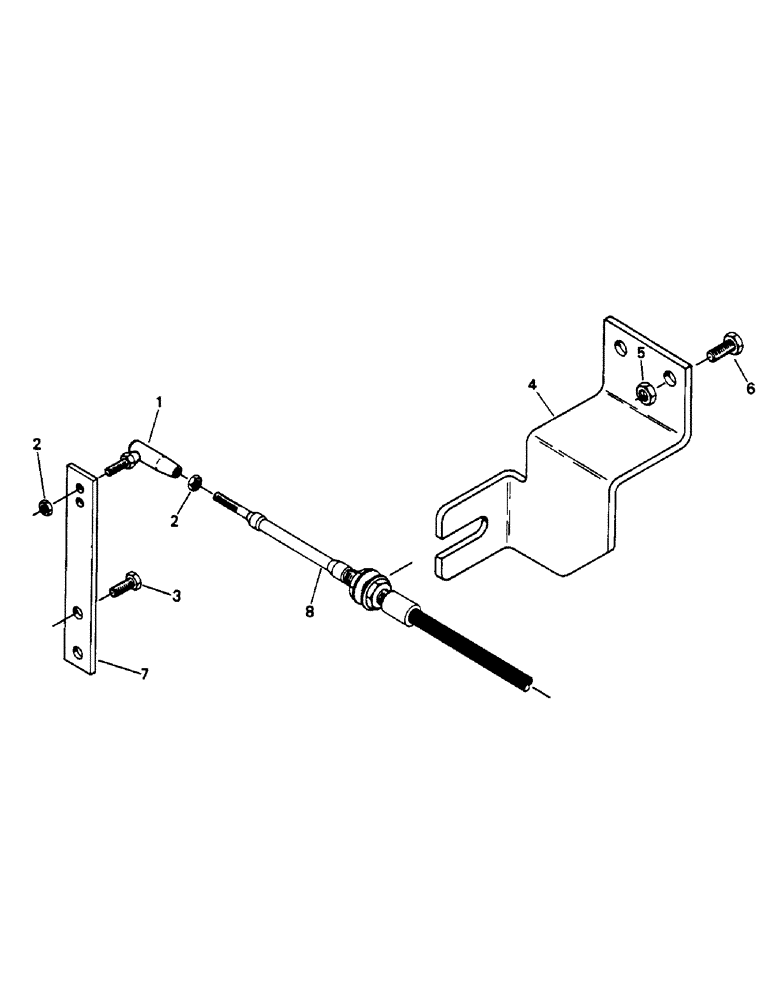

Запчасти Case IH 9130 (04-47) - ENGINE THROTTLE CONTROLS (04) - Drive Train

1

6-1431

BALL JOINT

JOINT - ball, no. 10 UNF

1шт.

2

19-308

NUT,#10 - 32

no. 10 UNF G-A

2шт.

3

40-1220

CAPSCREW,Hex, M6 x 12mm, Cl 10.9

M6 x 1 x 12 MM G-10.9

2шт.

4

90-6875T1

BRACKET

- engine throttle cable

1шт.

5

19-77

NUT,5/16"-18, G5

5/16 UNC G-B

2шт.

6

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

CAPSCREW, 5/16 UNC x 3/4 G-5

2шт.

7

90-6507T1

LEVER

- throttle

1шт.

8

60-3703T1

CABLE

- throttle

1шт.
